Warranty 2 Years Digital Magic Color 32pixels/m Ws2801 Led Stripe

Warranty 2 Years Digital Magic Color 32pixels/m Ws2801 Led Stripe thumbnail-1
Warranty 2 Years Digital Magic Color 32pixels/m Ws2801 Led Stripe photo-1
US$ 7.5 - 9.9 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar 5050 RGB LED chip
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 5050 RGB LED chip
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 7.68
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) addressable
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S322801

warranty 2 years digital magic color 32pixels/m ws2801 led stripe





Product Description

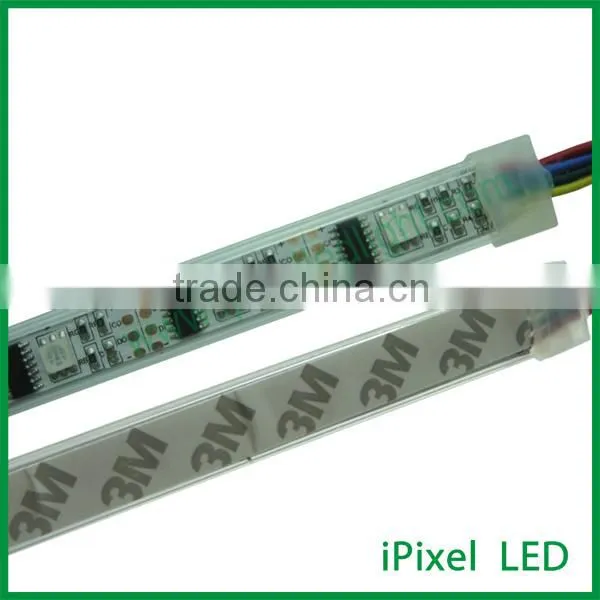

This RGB LED strip allows you to individually control all 32 RGB LEDs on a waterproof, self-adhesive strip.

Each LED has its own WS2801 IC and current limiting resistors
Each 5m section comes pre-terminated with 0.1" spaced 4-pin connectors as well as a 2-pin power connector.
In the window of photoes, show there is White Color strip addressable,

We also could do other single color strip addressable
Please note that the waterproof version of this strip 's width:16mm
Same as our WS2812B or APA102C addressable strip, this one also cut-able each single LED





Product Features





Product Name WS2801 32LEDs/m led strip
Model S322801
LED Chip Epistar 5050 RGB LED Chip
IC Chip WS2801
LED Qty 32LEDs/m
PCB Color White/Black
PCB Size 12mm Width
IP Rate IP20, IP65(Silicon-tube Waterproof)
Voltage DC5V
Power/M 7.68W
Bit 8
Warranty 2 Years





Product Pictures

This RGB LED strip allows you to individually control all 32 RGB LEDs on a waterproof, self-adhesive strip. Each LED has its own WS2801 IC and current limiting resistors

warranty 2 years digital magic color 32pixels/m ws2801 led stripe



This strip also could do Single Color LED as customer requested



Product Effects



 warranty 2 years digital magic color 32pixels/m ws2801 led stripe



Connection Way



SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)





Related Products



WS2812B 30/60/144 LEDs/m led strip, 1LED & 1IC built in.

warranty 2 years digital magic color 32pixels/m ws2801 led stripe

APA102 30/60/144LEDs/m led strip, 1LED & 1IC built-in.

warranty 2 years digital magic color 32pixels/m ws2801 led stripe
