Specifications
RivetsDome head open type aluminium steel blind rivets
Size:2.4-6.4mm
Length:4.8mm-40mm
structural rivet / blind rivet / cup type maolock rivet
Material:
| Steel | Aluminium, stainless steel, carbon steel... | ||
| Dome Head | Countersunk | Dome Head | Countersunk |
Dimensions:
| Rivet Body | Mandrel | ||
| Material | Finish | Material | Finish |
| Carbon Steel | Zinc Plated | Carbon Steel | Zinc Plated |
| D(mm) | Hole Dia.(mm) | Grip Range (mm) | Dk(mm) | Tensile N(min) | Shear N(min) |
| 4.8 x12 | 4.9~5.1 | 3.2~8.4 | 8.2 | 4900 | 6200 |
| 4.8 x16 | 3.2~12.2 | ||||
| 6.4x16 | 6.7~6.9 | 4.3~12 | 10 | 9600 | 11700 |
| 6.4x22 | 4.3~17 |
| Rivet Body | Mandrel | ||
| Material | Finish | Material | Finish |
| Aluminium | Polished | Aluminium | Polished |
| D(mm) | Hole Dia.(mm) | Grip Range (mm) | Dk(mm) | Tensile N(min) | Shear N(min) |
| 4.8 x12 | 4.9~5.1 | 3.2~8.4 | 8.2 | 2220 | 3110 |
| 4.8 x16 | 3.2~12.2 | ||||
| 6.4x16 | 6.7~6.9 | 4.3~12 | 10 | 3960 | 5780 |
DIN7337
Standards |
ISO, DIN, AS/NZS, GB, ANSI , BS |
Material |
Stainless steel, carbon steel, copper, iron, or according to your requirement |
Length |
4-31mm,or as requirement |
Size |
3mm,3.2mm,4mm,4.8mm,5mm,6mm,6.4mm |
Usage |
building,machine,and so on |
Grade |
4.8-12.9,A2-70,A4-80,etc |
Features |
Good anti-corrosion ability, kinds of coatings |

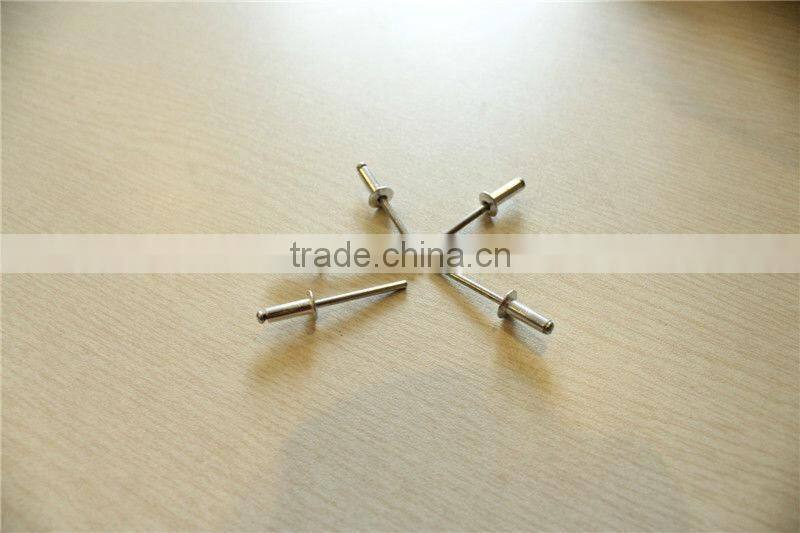

About Blind rivet:
• Applications: Blind rivets is a kind of rivet with one-side riveting, but must use a special tool to rivet gun riveting - pull. Riveting, rivets nail core rivet gun pulled by special, riveting body expansion, have riveted role. These riveting particularly applicable to inconvenience USES ordinary, so the riveting occasions the rivet widely used in building, automobile, shipbuilding, airplanes, machinery, electrical appliances, furniture and other products
• Products: If customers have any products of similar manufacturing methods,please send us the drawing and specifications
Main Makets:
Services and Support
• Good after Sales Service
1. We will respond to your inquiries within 24 hours (except holidays).
2. Aiming at mutual benefits, we manage to provide our customers with the highest quality, the best service and the most reasonable value by continuous effort.We appreciate your interest on our products very much and hope that our website will be helpful and informative to you. If you need more information, please contact me.
3. We welcome your visit to our company.
