1.Brief Introduction of Cement pipe making machine of Roller Hanging Type HYM brand XG Series cement pipe machine
XG series of concrete pipe machine compact materials into shape by means of pressure and centrifugal
force generated by roll shaft and steel mold, and bring shaped pipes to standard strength by steam or natural
curing and finally produce reinforced concrete pipes 1000-2000mm long with 300-2000mm inner diameter with average efficiency of one section every ten minutes. The machine is easily
operated, running smoothly, reliable and endurable with low failure rate.
Specific parameters shall comply with the attached table.
2. Main Technical Paremeters
Model |
XG(Φ300-800)x2000 |
XG(Φ800-1200)x2000 |
XG(Φ1200-1650)x2000 |
XG(Φ1650-2000)x2000 |
Pipe diameter(mm) |
300-800 |
800-1200 |
1200-1650 |
1650-2000 |
Roller diameter(mm) |
127 |
219 |
273 |
325 |
Pipe length(mm) |
1000-2000 |
1000-2000 |
1000-2000 |
1000-2000 |
Motor power(kw) |
15 |
18.5 |
55 |
75 |
Rolling speed(r/min) |
62-618 |
62-618 |
72-727 |
72-727 |
Dimension (mm) |
4100x2350x1600 |
4100x2350x1850 |
4550x3500x2500 |
4550x3500x2900 |
3.Pictures of Products
4.customer visit

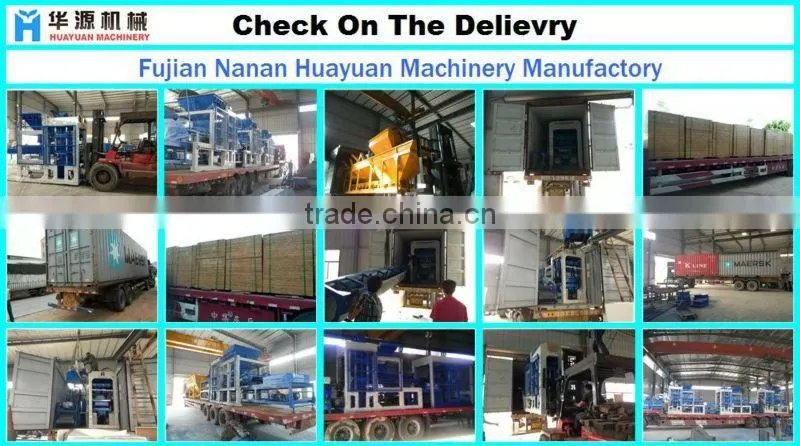

5.Packing and Shipping
6.Our Service
Our company has product with reliable performance, have after-sale service team with rich experience of block machine and paverment block machine. We follow the tides closely; the internet technology is applied to every process of producing and operation. We supply the latest product information and technical service through internet activity. We believe you not only need a product but also good after-sale service. We not only value technology and quality of the product, also we are willing to supply service with comfortable, convenient, assured and carefree.
Before Sales
1. Guide our customers to deploy the most useful equipment item according to their requirement.
2. Provide technical data, including equipment bill, layout, base specification and installation picture for reference.
3. Design and manufacture product according to the customers' special requirement.
4. Dispatch the technical person to reach the locale to layout field, design the best installation flow and scheme for reference for free.
During Sales
1. Manufacturing product according to the technology standard strictly.
2. Test the machine according to relevant stipulate of the equipment.
3. Verify the product strictly after manufacturing complete.
4. Delivery according to the contract.
After Sales
1. Dispatch special after-sales service staff to help customer install and adjust the machine, trial run and train the operator on the site.
2. Warranty policy: three guarantees of quality, the product will be guarantee for 1 year (except wearing part). The service life of the machine depends on maintenance. We will repair the machine for free when meet equipment trouble during the warranty period meanwhile customer maintenance the machine according the operation procedure. We will supply lifelong maintenance guide, also we will timely solve all problems the operator meet during operation.
