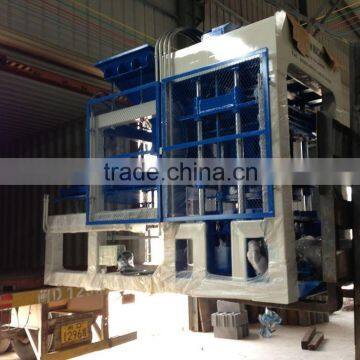

HY6-15 block making machine,automatic block machine,concrete block making machine
1,Main component of QT6-15 cement block making machine
1. Recycle material feeding system: Economize in material for different or same density products.
2. PLC (computer automatic control): Hundreds program and process are ready to install, suitable for complex dynamic environment, and easy to handle.
3. Multi-source vibration system: For ensure the accuracy, the vibration frequency is adjustable.
4. Automatic diagnosis system: Unique system, Real-time monitoring to find out the fault, achieved remote- control by using telephone line..
2.Main technical parameters of QT6-15 cement block making machine
Cycle Time | 15-20 Sec | Vibration Type | hydraulic vibration |
Total Power | 37.4kw | Vibration | 68(KN) |
Vibration Frequency | 3800-4500(times/sub) | Gross Weight | 7500(kg) |
Pallet Size | 880×680×20(mm) | Machine Size | 9450×3300×2700mm |
Rated Pressure | 31.5(mpa) | Stacking Machine Power | 2.25kw |

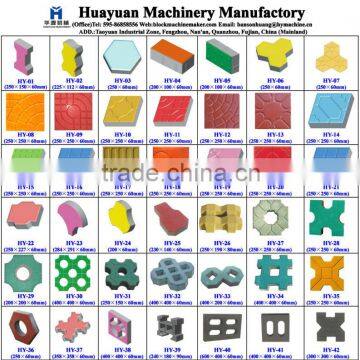

3.Brick Sizes and capacity of QT6-15 cement block making machine
Brick | Sizes | Output/ mould | Output/Shift(8hours) |
Blocks | 390x190x190mm | 6 | 8,640-11520 |
Porous bricks | 240x115x90mm | 15 | 21,600-28,800 |
Interlocking block | 200x100x60mm | 21 | 25,200-30,240 |
Solid bricks | 240x115x53mm | 30 | 47,200-63,600 |
4.Other information of QT6-15 cement block making machine
land area :100-200m2 for the machine installation ,3000-4000m2 for the whole production , the bigger, the better
Raw material:8-10% cement, 30-40% sand,50-60% stone power

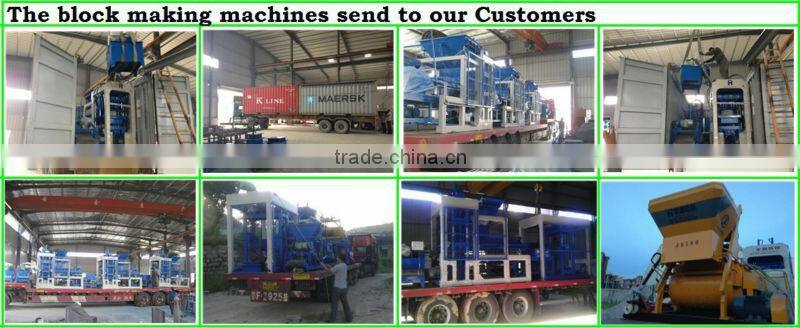

5.Shipment to the clients
6.Our clients all over the world
