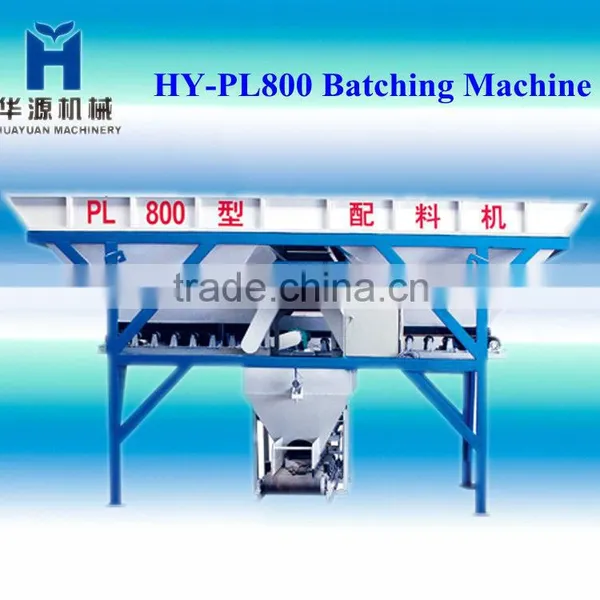

HY- PL800 Mobile Concrete Batching Plant Cement Sand Brick Making MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
Two Cabins Concrete Batching Plant of PL800 Concrete Batching Plant PriceUS$ 5,000 - 9,000MOQ: 1 Set
-
HY-PL800 Batching Plant for Mobile Concrete Batching PlantsUS$ 5,000 - 9,000MOQ: 1 Set
-
PL800 Batching Plant Mobile Concrete Batching PlantsUS$ 5,000 - 9,000MOQ: 1 Set
1. concrete batching plant
Batching Machine PL1200,
ISO9001:2000
Cumulative measurement of belt weigher,Air Discharge

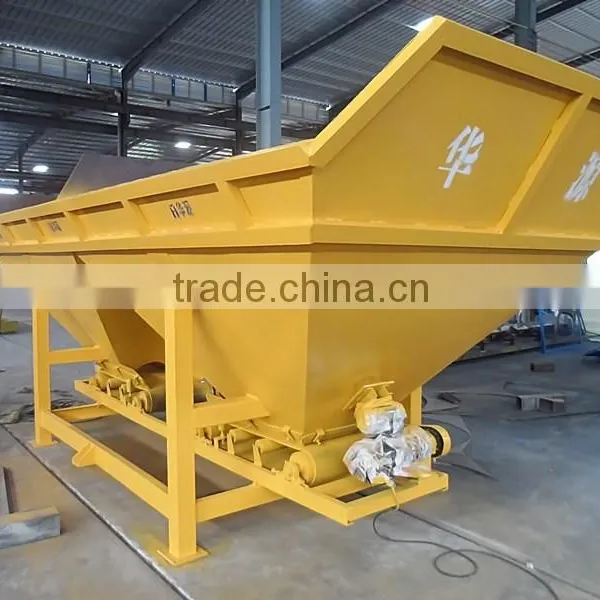

2012 LOWEST PRICE PL1200 concrete batching plant for block making machine
1. Brief Introduction of PLD1200 Electronic Weighing concrete batching plant :
PLD1200 concrete batching plant is a kind of front-desk automatic batching equipment equipped with the mixer. This concrete batching plant can finish automatically the batching process of sand, stone, cement etc. 3~6 kinds of material according to the cement proportion designed by user. This concrete batching plant can batch materials to one or two mixer, so it effectively improves the working efficiency.
2. Salient Features of PLD1200 Electronic Weighing concrete batching plant :
PLD1200 Concrete Batching Machine adopt electronic weighing, computer control, digital display, and wired remote control. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life. PLD1200 concrete batching plant is widely used in all kinds of large and medium-sized construction project and concrete mixing station.
3.MAIN TECHNICAL PARAMETERS
CBM of Weighing Bin |
1.2 m3 |
CBM of Aggregate |
3*4m3 |
Productivity |
60m3/h |
Maximum weighing |
2,000kg |
Quantity of Aggregates |
3 |
Loading Height |
2,400 |
Weighing System |
Electronic Weighing System |
Power |
10.6kw |
Total Weight |
3,760kg |
Machine Size(L*W*H) |
8,390 * 2,000 * 2,800mm |
4.Supporting host------HYM series concrete block making machines ,JS series concrete mixer:
...
