Specifications
Automatic Welding Machine1.Similar Products:Box Beam, C Channel Steel
2.Finished Product:H / I Beam / Other Profile Steel
Specification:

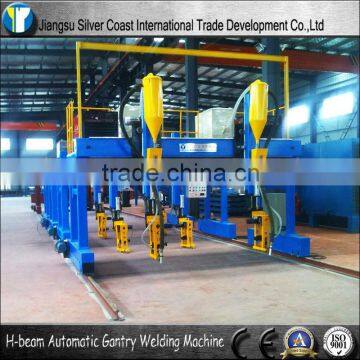

1. The H beam gantry gate welding machine has two structures: Gantry gate move type & double
cantilever move type.
2. Gantry gate or cantilever drive method: AC motor and R series worm reducer.
3. Welding speed: 0.15~1.5m/min.
4. Arc guide frame head function is to mechanically track up and down, left and right.
5. Imported frequency converter is able to realize gantry gate or cantilevers stepless speed
adjustment,with wide speed adjustment range,high accuracy and constant output torque.
6. Electrical control cabinet includes main control cabinet and remote operation box.
7. Two work-piece at one time.
Supply scope:
1,Gantry gate unit:Gantry gate,travel device,lateral sliding device,feeding wire wheel and pipe
accessories.
2,Welding arm and carriage:Welding arm,motor transmission device,move device and accessories (2 sets each).
3,Arc guide device:Welding gun,mechanical adjusting unit and feeding wire machine (2 sets each).
4,Flux recovery system:100kg flux recovery machine,separate material barrel,flux hopper,flux recoveryand transmission pipe.
5,Electric control system:Electric control cabinet,AC frequency converter,operation box,lighting,
warning light.
6,Pipe and wire system:Welding machine power wire,control wire,welding cable,gantry gate control
cable,air source pipe,suspending sliding frame.
7,Welding system:MZ-1000 sub merge arc welding machine*2sets.
Model |
web height mm |
flange width mm |
welder model |
welding type |
welding speed |
welding torch return speed |
rails' distance |
overall power |
LHA-4000 |
200-1500 |
200-800 |
MZ-1000 |
boat-type welding |
0.15-1.5m/min |
3m/min |
4000mm |
10KW,exclude welder pow |
SXBH-20 |
200-2000 |
200-800 |
2000mm |
Our services:
1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.
4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service
and maintenance.
Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e. TheWuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management
and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.
So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is for producting.
Here we make a promise to you all: we will offer you the products with the ideal price and good quality.
If you have any problems or you are interested in our products, Please contact me via Email or following ways:
Skype:sakina135246
QQ:2696243358
Tel:0086-15061825918
