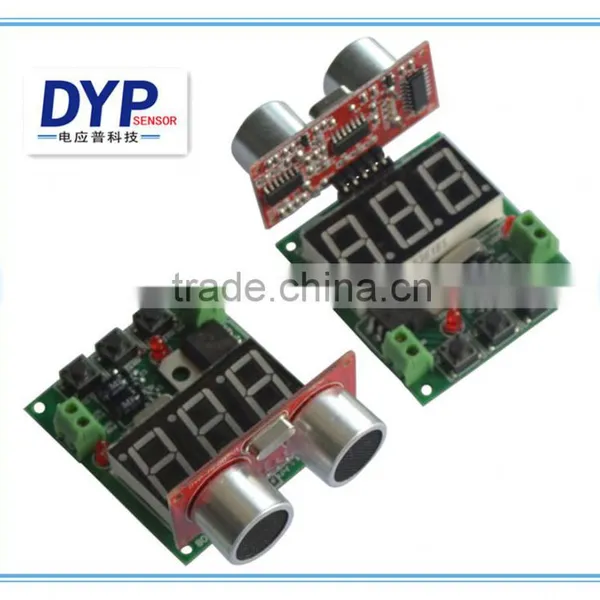

Help CenterUltrasonic Sensor Module With LED Display BoardDistance Sensor ModuleUltrasonic DetectorUltrasonic Distance Measuring Module
Related Products
-
New Type Ultrasonic Sensor for Distance MeasurementDistance Measuring SensorUltrasonic SensorUltrasonic Distance SensorUS$ 8.99 - 9.99MOQ: 1000 Pieces -
DC 3.3V-12V Ultrasonic Distance SensorUltrasonic Sensor Distance Measuring ControllerUltrasonic Distance Measuring SensorUS$ 7.48 - 8.48MOQ: 5000 Pieces
-
Long Range (8m) Ultrasonic SensorHigh Quality Ultrasonic Sensor for Distance MeasuringHot Ultrasonic Distance Measuring SensorUS$ 9.62 - 10.78MOQ: 500 Pieces
-
Ultrasonic Theory and TTL,UART, SWITCHING Output Distance SensorDistance SensorUltrasonic Distance Measuring Sensor DetectorUS$ 10.78 - 12.15MOQ: 100 Pieces
-
New Type RS232 and Analog Voltage Output Ultrasonic Distance Measuring SensorLong Range Ultrasonic Distance Detector SensorUS$ 10.78 - 12.15MOQ: 100 Pieces
Specifications
With an external serial download port, two switch outputs, three button selections and two IO ports extension.Operation:
1 This module's outputs can be use-defined;
2 Press and hold S1 button for 3 seconds, showing LLL;
3 Press S1, it displays a number (001 e.g.), which is the asuring value. When the measured distance is less than this value,OUT2 will output a high level (4.5V). The min. measurement value is adjustable, press S2 to increase, S3 to decrease;
4 Press S1 again after the min. measuring value is set, it displays HHH, then press the S1 to indicate a number (200 e.g.), which is the max. measurement value. When the measuring distance is larger than this value, OUT1 will output a high level (4.5V). This Max. measuring value is adjustable, press S2 to increase, S3 to decrease;
5 When the max. measuring value is settled, press S1 to save. This device is designed with memory function when power off;
