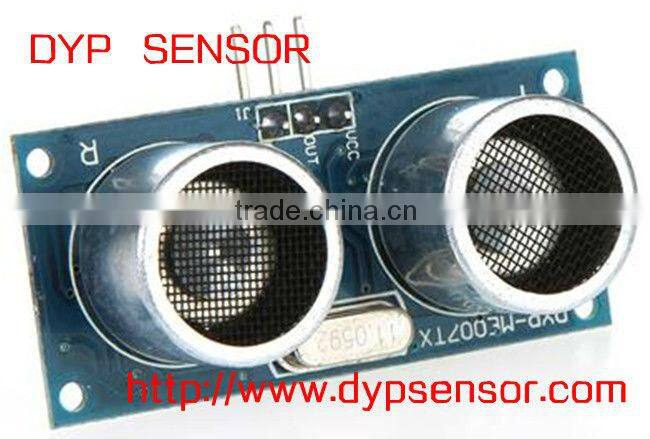

Serial Ultrasonic Range Module+Ranging Distance Detecting Ultrasonic Sensor Display ModuleDistance SensorUltrasonic Transducer
US$ 12.23 - 16.29
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DYP
Model Number:
DYP-ME007TX + DYP-ME008
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Accuracy Ultrasonic SensorUltrasonic Range Sensor Module for RobotsUltrasonic Sensor Distance MWaterproof Ultrasonic SensorUS$ 8.15 - 15.94MOQ: 1000 Pieces -
Ultrasonic Sensor Water LevelUltrasonic Range Sensor Module for RobotsWaterproof Ultrasonic Sensor Module With a Long-term ProbeUS$ 11.28 - 15.94MOQ: 100 Sets
-
Car CareCar Reverse Back UP RadarUltrasonic Parking SensorParking SensorCar Reverse Parking SensorsParking Lot Ultrasonic SensorUS$ 1.29 - 1.94MOQ: 1000 Pieces
-
HotUltrasonic Detector Ranging Module Distance SensorUltrasonic TransducerWaterproof Ultrasonic Sensor Distance Measuring ModuleUS$ 20.36 - 24.43MOQ: 100 Sets
-
New GH-311 Ultrasonic Sensor Distance Measuring ModuleUltrasonic Sensor Module for RobortsSwitching Output Ultrasonic TransducerUS$ 5.87 - 7.26MOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
DYP
Model Number
DYP-ME007TX + DYP-ME008
Usage
Position Sensor
Theory
Ultrasonic Sensor
Output
Digital Sensor
Specifications

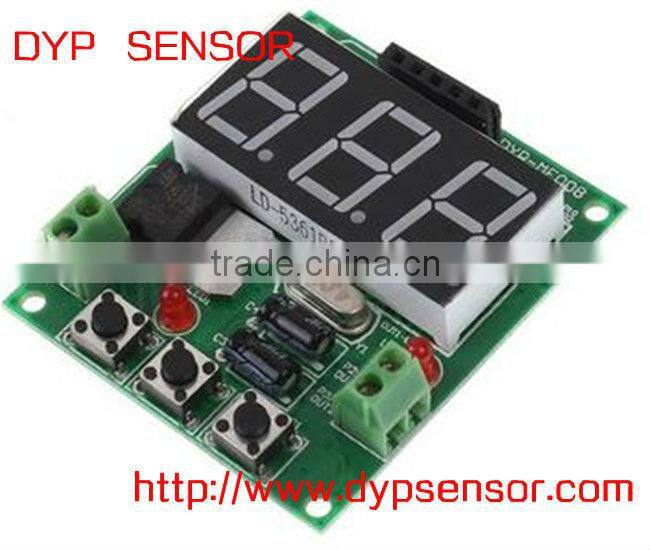

It could set the output of switching value and it is suitable for industry, education, security and other fields.Switch Output:
- This module's outputs can be use-defined
- Press and hold S1 button for 3 seconds, showing LLL
- Press S1, it displays a number (001 e.g.), which is the asuring value. When the measured distance is less than this value,OUT2 will output a high level (4.5V). The min. measurement value is adjustable, press S2 to increase, S3 to decrease
- Press S1 again after the min. measuring value is set, it displays HHH, then press the S1 to indicate a number (200 e.g.), which is the max. measurement value. When the measuring distance is larger than this value, OUT1 will output a high level (4.5V). This Max. measuring value is adjustable, press S2 to increase, S3 to decrease
- When the max. measuring value is settled, press S1 to save. This device is designed with memory function when power off
