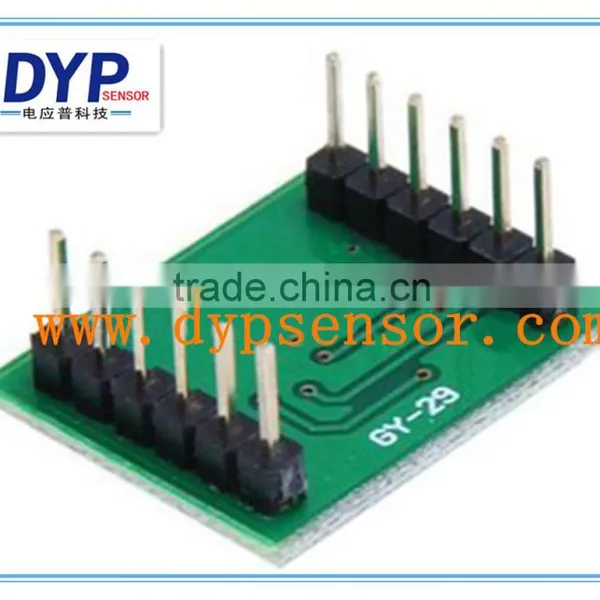

GY-29 Digital Accelerometer Sensor ModuleAccelerometer ModuleADXL345 ModuleGravity Angle SensorDigita3-Axis Accelerometer Module

Specifications

Features:

• Ultra Low Power: as low as 23 μA in measurement mode and 0.1 μA in standby mode at VS = 2.5 V (typical)
• Power consumption scales automatically change with bandwidth
• User-selectable Resolution: Fixed 10-bit resolution
• Embedded memory management system with FIFO technology minimizes host processor load
• Single tap and double tap detection
• Activity and inactivity monitoring, free-fall detection
• Supply Voltage Range: 2.0 V to 3.6 V
• I/O Voltage Range: 1.7 V to VS
• SPI (3- and 4-wire) and I2C digital interfaces
• Flexible interrupt modes mappable to either interrupt pin
• Measurement ranges selectable via serial command
• Bandwidth selectable via serial command
• Wide Temperature Range: Between 40 degC and +85 degC)
• 10,000 g shock survival
• Pb free / RoHS compliant
• Size (L x W x H): 0.95 x 0.75 x 0.4 inch / 2.4 x 1.9 x 1cm

Applications:

• Handsets
• Medical instrumentation
• Games and pointing devices
• Industrial instrumentation
• Personal navigation devices
• Hard disk drive (HDD) protection
