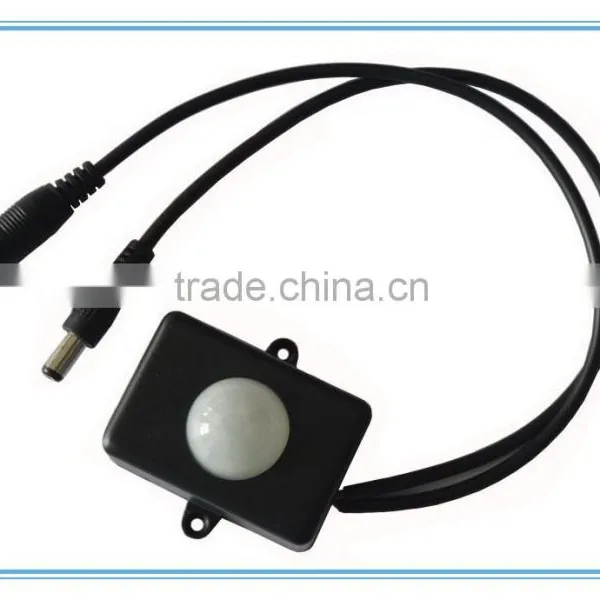

DYP-03LED-X1 is an automatically control products, which is based on the technology of infrared, with features of high sensitivity and strong reliability. The LED light is off when it’s in Day Mode, but when it’s in Night Mode: 1) The brightness of LED will be 30% when it does not detect human body (like a night light); 2) The LED light will be full bright when it detects human body, and the brightness will be slowly changed (the original one will turn off at once).
Electrical parameters:
Operating voltage |
DC12 – 24V |
Wattage of LED light |
5A |
Power consumption at night |
0.5W |
Sensitive time |
Default:3s – 5s , adjustable: from 3s to 200s |
Detection range |
7m-8m,adjustable |
Light-operated |
adjustable |
Detection angle |
Less than 110 degree angle of cone |
Size |
35 X 36 X 23 (mm) |
Dimension of lens |
Diameter: 23mm |
Working pattern:
Light |
PIR |
LED |
Daylight |
Detects human body |
OFF |
At dusk |
Detects human body |
0 - little by little (2s) – full brightness |
At dusk |
Do not detect human body |
full brightness – little by little (5s) - 0 |
Night |
Detects human body |
0 - little by little (2s) – full brightness |
Night |
Do not detect human body |
full brightness – little by little (5s) – 30% brightness |
