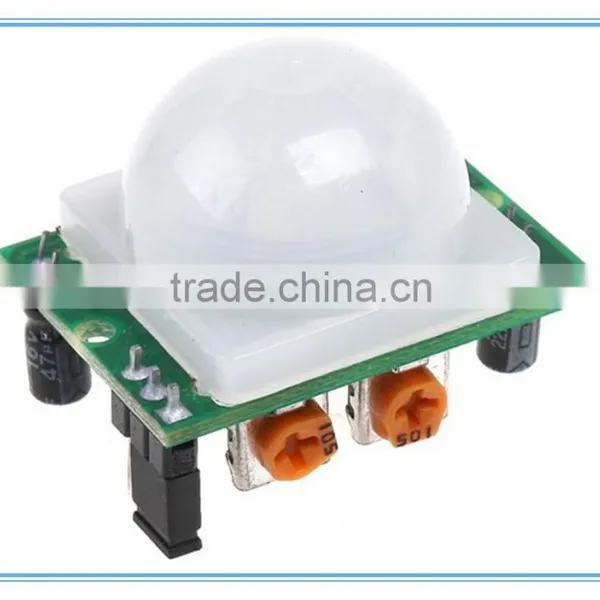

PIR Motion Detection Sensor ModulePassive Infrared Sensor (PIR) Sensor ModulePyroelectric Infrared PIR Motion Sensor Detector

This PIR Motion Detection Sensor Module is consists of pyroelectric sensor and fresnel lens that detects motion by measuring change in the infrared levels emitted by the objects. It can detect motion up to 20ft. This module is very sensitive to change in infrared levels subjected by human movement.

Features:

1) Infrared sensor with control circuit board.
2) The sensitivity and holding time can be adjusted.
3) Small and light, it is easy to use.
4) Detecting distance is up to 7m.
5) Suitable for the field of security, toy, automation control etc.

Specifications:

1) Working voltage: DC 4.5V--20V;
2) Quiescent Current: Less than 60uA;
3) Voltage output: High/Low level signal:3.3V TTL output;
4) Detection distance: 3--7M(can be adjuted);
5) Detection angle: <110degree;

6) Delay time: 5-200S (can be adjuted, default 5s +-3%);
7) Blockade time: 2.5S (default);
8) Trigger method: L: unrepeatable trigger H: repeatable trigger(default);
9) Photosensitive setting: Use CDS (Defaut: included, not welded);
10) Working temperature: -20---+80degree;

11) Product weight: 6.4g;
12) Product size: 3.2 * 2.4 * 2.4cm;
