Specifications

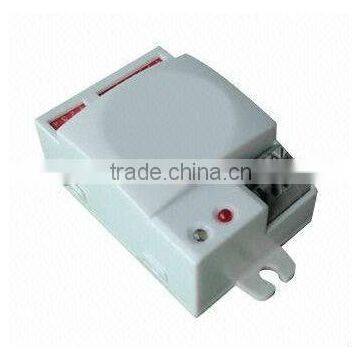

This microwave motion sensor,which operating frequency is up to 5.8GHZ,and was widely used in Incandescent lamp (bulb)......Feature:
1) Compact Size, could be embedded installation into the ceiling lamp
2) With light-dependent control function(Day and night mode, also could be set as the illuminance);
3) Could set the light-dependent control as the external reality;
4) The sensitivity and delay time is adjustable;
5) Could set different distance;
6) Delay time of lighting could be set as the application environment;
Specification:
1) Operate voltage: 230V/AC±10%;
2) Power supply frequency: 50Hz;
3) Load power: 500W (Max.,using the incandescent lamp); 200W (Max., using the fluorescent lamp );
4) Operate temperate range: -20°C~ +60°C
5) Limited temperate range: -35°C~ +75°C;
6) Microwave frequency: ISM 5.8GHz;
7) Installation height: 2m ~ 3.5m (2.5m Suggested ) ;
8) Detection range: 1m ~ 10m (adjustable);
9) Detection delay time: 8sec ~ 30min (adjustable);
10) Indoor installation: ceiling installation;
12) Detection degree: 180 degree ;
13) Microwave output power: less than 10mw;
