Specifications
This detector could be widely used in all kinds of large, medium and small parking lot.Description:

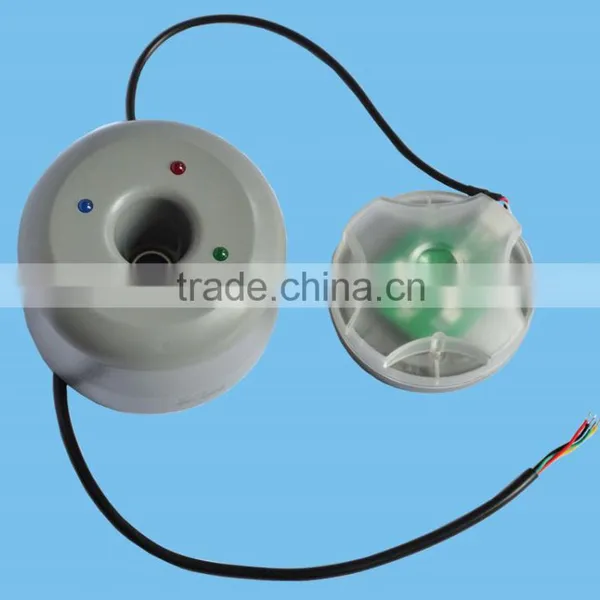

This detector uses ultrasonic measuring technology to real-time monitor parking lot. The main working principle is using the range difference to judge whether it has cars or not and outputting the corresponding state and data via RS 485 communication interface. This detector could be widely used in all kinds of large, medium and small parking lot.
This detector also could be combined with our parking concentrator and constitutes a parking management system, and then achieve scientifically to manage the car parking lot or garage on the WEB.
Features:
1) Accurate in measurement, using ultrasonic ranging technology, which resolution ratio is 0.2mm and tiny measurement degree 16°. which in order to ensure it could be run stably in all kinds of parking space and collect data accurately;
2) Strong expansibility, Using the RS 485 communication technology, which is compliance with "TIA/EIA - 485 - A" standard. This detector could be connected up to 64 nodes in a RS 485 bus. Than the other similar products on the market support twice as many as 32 nodes. This detector could be set up 10 binary address and one system could connect with 1022 nodes at the same time under the condition of with repeater;

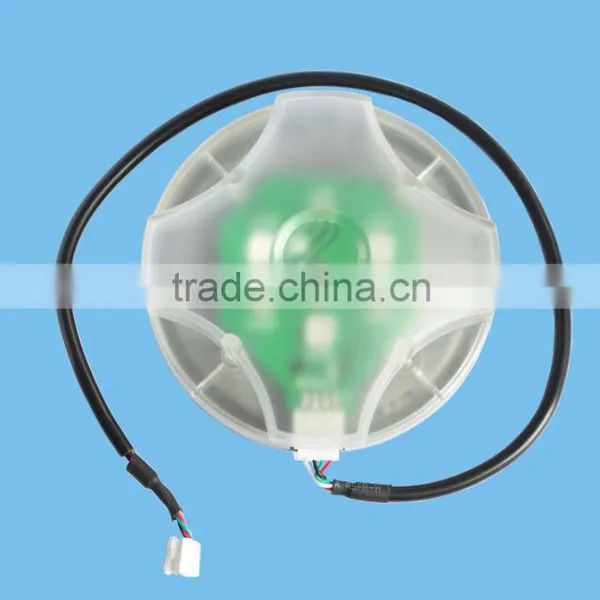

3) Strong independence, considering the management system of maintenance and update, In application, this product could be normally used the basic state of parking led indicator function during the management system maintenance and update, so that reduce the maintenance costs;
4) Simple application, when we developed this product we had considered the data could be connect with all kinds of present communication products, so when you use this product, which could be directly combined with the common RS485 control module, which could reduce the secondary development and easily achieve to collect and manage the state of parking space;
Technical parameters:
Operating voltage |
DC 12V |
Voltage ripple requirements |
Less than 100mV |
Average power consumption |
0.264 W |
Peak current |
22 mA |
Blind zone |
less than 40 cm |
Maximum distance |
5m |
Range error |
Less than 5% |
Degree |
16° |
Detection period |
3s - 6s |
Operating temperature |
-20 - 70°C |
Storage temperature |
-30 - 80°C |
