Specifications

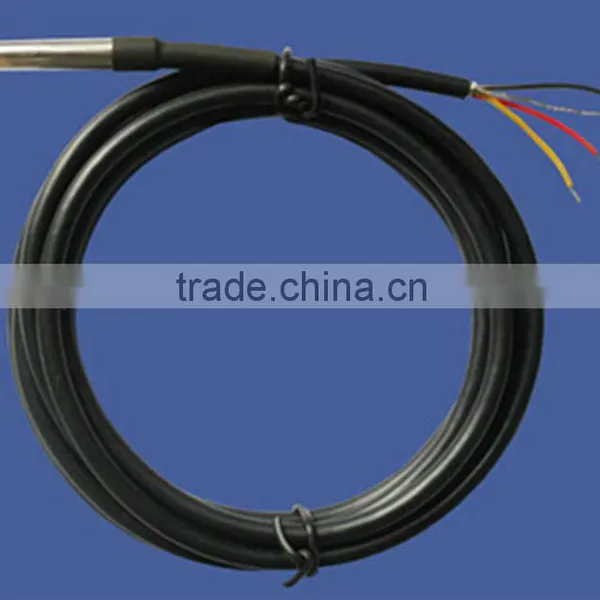

It is widely used in cold-storage room, beer production, environment monitoring, and various temperature instruments, etcThis DS18B20 temperature sensor is designed for use in liquid media or situation in which waterproof is required. Measures 3 meters in length, this temperature sensor is widely used in cold-storage room, beer production, environment monitoring, and various temperature instruments, etc.
Features:
1 Core Components: DS18B20, with high accuracy and good stability;
2 "Bus line" digital transfer, greatly improving system anti-interference;
3 Nickel-plated brass shell package, which is waterproof and corrosion-resistant;
4 Suitable for temperature measurements in liquid media;
Parameters:
1 Sensor Type: DS18B20 digital temperature sensor;
2 Operating Voltage: 3 - 5.5V;
3 Measuring Range: -55 ~ +125°C;
4 Temperature Accuracy: ± 0.5°C (-10~+85°C condition);
5 Temperature Resolution: 9-12 bit (0.0625°C);
6 Cable Length: 3 meters ( could be made other length,the longest is 30m );
7 Cable Color: black (could be customized as other colors);
Pin Definition:
1 VCC - Power supply (red wire);
2 DQ - Data (yellow wire);
3 GND - Power ground (black wire);
4 GND - Shielded cable;
