Help CenterYQ High Quality Used Plate Bevelling Edge Milling Machine With Low Price
Related Products
-
YQ 12m Bevelling Edge Metal Milling Machine With Low Price for SellNegotiableMOQ: 1 Piece -
Chinese YQ 6m 9m 12m Used Bevelling Edge Metal Milling MachineNegotiableMOQ: 1 Piece
-
YQ 6m 9m 12m Used Bevelling Edge Metal Mill Machine With 75 DegreeNegotiableMOQ: 1 Piece
-
YQ 6m 9m 12m Used Steel Plate Bevelling Edge Metal Mill MachineNegotiableMOQ: 1 Piece
-
YQ 6m 9m 12m Universal Steel Plate Bevelling Edge Metal Mill MachineNegotiableMOQ: 1 Piece

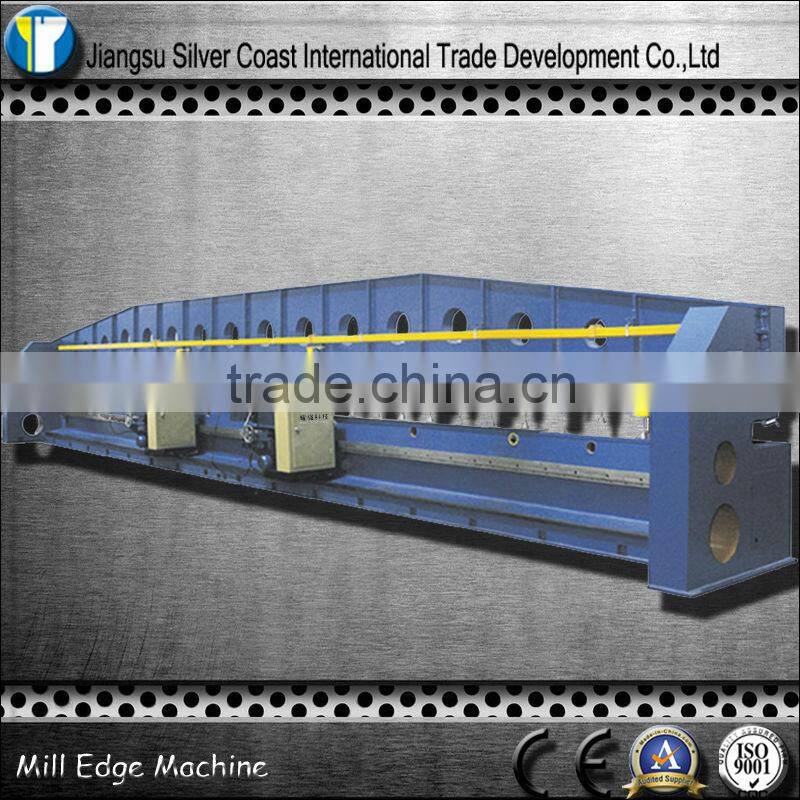

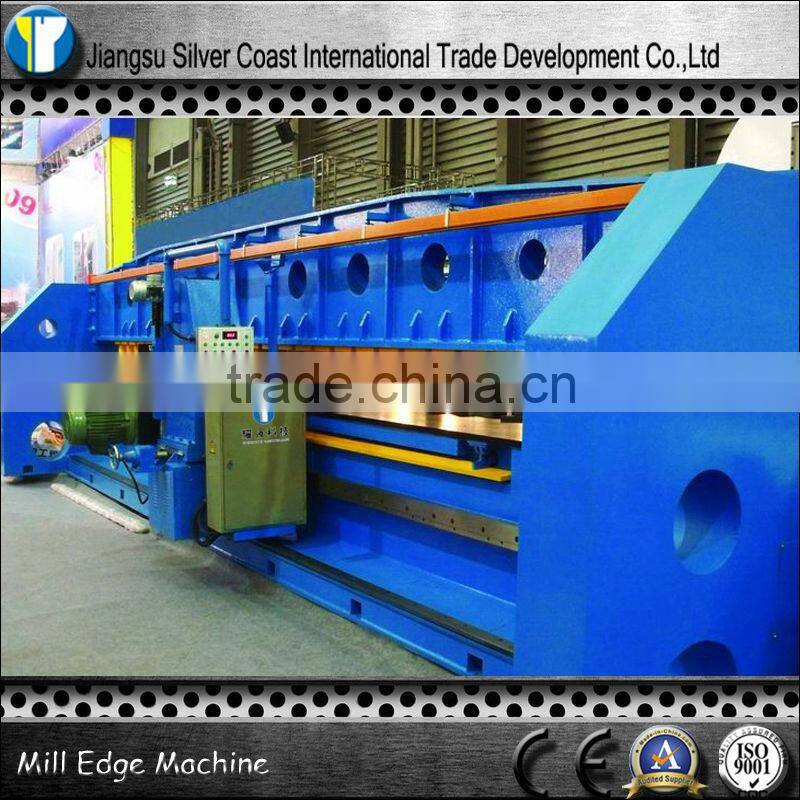

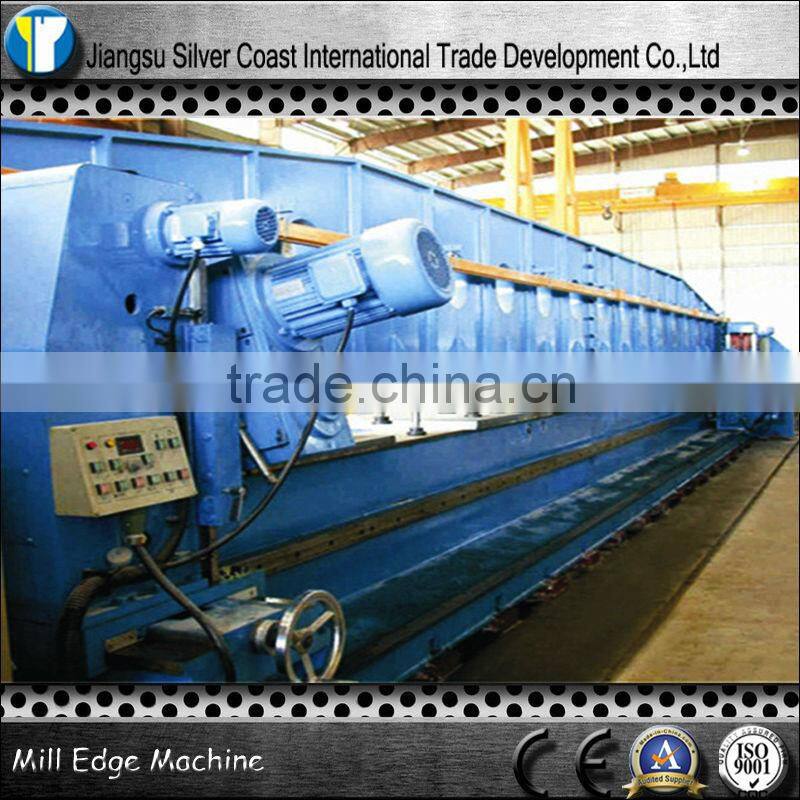

YQ Bevelling Edge Milling Machine
Specification:
1.Equipment structure types:fixed;
2.The function of equipment:straight edge,bevel edge≤ 75°,U-shaped
3.Way of working,milling cutter disk circle pins forming;
4.Adopt imported frequency technical realization of head and walk cabinet step;
5.AC motor driving type of case:+ gear reducer+super-modulus gear pair;
6.Hydraulic control system:the oil cylinder pressure and time delay function;
7.Milling pin straightness:≤1.5mm/m;
8.Electrical control system:the cabinet + operation control box.
XBJ edge milling machine | ||||
model |
XBJ-3 |
XBJ-6 |
XBJ-9 |
XBJ-12 |
effective milling scope length m |
3 |
6 |
9 |
12 |
milling edge adjustment range° |
0-45 |
0-45 |
0-45 |
0-45 |
adaptable steel plate thickness mm |
6-80 |
6-80 |
6-80 |
6-80 |
max. milling width mm |
2--4 |
2--4 |
2--4 |
2--4 |
milling cutter forward speed mm/min |
100-1000 AC frequency stepless speed adjustment AC frequency stepless speed adjustment |
|||
milling cutter backward speed mm/min |
4 |
4 |
4 |
4 |
milling shaft speed rpm |
100-1000 |
|||
hydraulic pressure Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥3.5 |
hydraulic head qty. pc |
5 |
8 |
11 |
15 |
supporting flat height mm |
900 |
900 |
900 |
900 |
feeding motor power kw |
1.5 |
1.5 |
1.5 |
1.5 |
oil pump motor power kw |
4 |
4 |
5.5 |
5.5 |
Packaging & Delivery:
Packaging Details:Standard export package
Delivery Details:Within 30days after received your deposit
