H-beam Sand Shot Blasting Machine with Cleaning Fucntion
- 100 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 3.5X-180X Green Trinocular Stereo Microscope Continuous Zoom Soldering Tool
- Mechanic T12 Pro Intelligent Digital Soldering Station
- roller for stacker-reclaimer cladding welding Wear resistant High hardness
- Surfacing welding-Built up welding-Cladding welding China
- China Forged roller for Steel Mills-cladding welding
- Repair surfacing welding for large gear
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | yaoqiang | Model Number: | HP1020/1225/1530 |
Product Description
Specifications

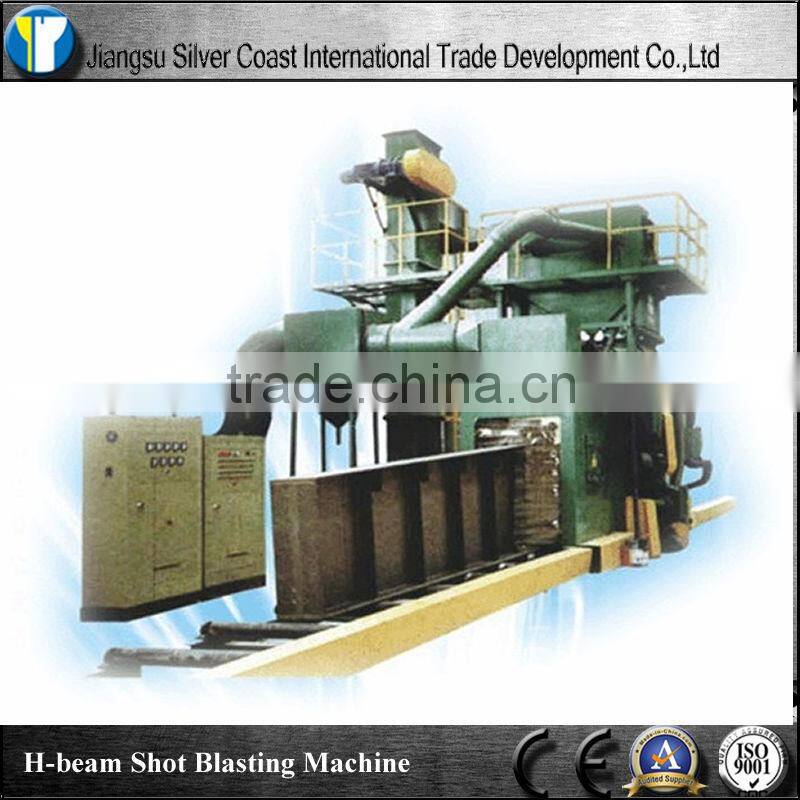

H Beam Shot Blasting Machine1.Shot blast H-beam & other steel structure
2.Configurable pulse bag filter canister filter/p
Main features:
1.Shot blast H-beam and other steel structure;
2.The layout of clean room and shot is reasonable,shot blast widely,comprehensive and thorough
cleaning;
3.It adopts speed-adjusted roller,cleaning process convenient and efficient;
4.Configurable pulse bag filter canister filter/pulse.
Brief introduction:

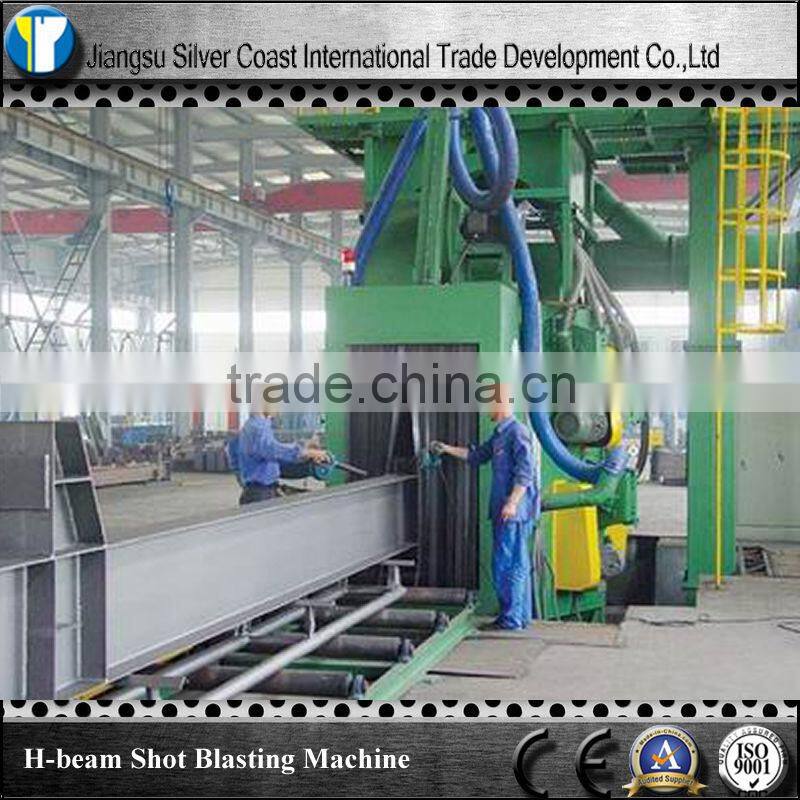

HGP0816 series steel H beam shot blasting cleaning machine is automatically table roller continually passing type.It is specially used for steel H beam surface cleaning,strengthening, to get certain
degree of surface roughness,to add paint coating adhesion force, to improve surface quality and
anti-corrosive effect.Two shot blaster are on the left and right side of shot blasting room.They are
assembled to the best position according to H beam condition.There are a layer of abrasion resistantprotecting plate on the inside room surface,and it is inserted type so it is easy to change.The anti-dust system adopts American DONALDSON company technology, the cartridge type dust cleaner,
with high efficient ability and low operation resistance,low size,small weight and easily to be changed.The dust release density is lower than the national environmental requirement.
Type | HP 1020 | HP 1225 | HP 1530 | |
Size of the work-piece | section(L*W) | 1000*2000 mm | 1200*2500mm | 1500*3000mm |
work | 4000-15000 mm | 4000-15000mm | 4000-15000mm | |
Quality standard | cleanness | A-B Sa2-Sa2½ | A-B Sa2-Sa2½ | A- B Sa2-Sa2½ |
Shot blaster | numbers | 8 | 8 | 8 |
power | 8*11Kw | 8*11Kw | 8*15Kw | |
In and out converyor | loading | 200kg/m | 1000kg/m | 1000kg/m |
speed | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min | |
Circulation quantity | 120T/h | 120T/h | 120T/h | |
Nominal size(L*W*H) | 6770*2900*3150mm | 7895*2985*3460mm | 7895*3500*3760mm | |
Total power | 125kw | 135kw | 148kw |
Our services:
1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.
4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.
Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e. TheWuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management
and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.
So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is for
producting.
Here we make a promise to you all: we will offer you the products with the ideal price and good quality.
If you have any problems or you are interested in our products, Please contact me via Email or following ways:
Skype:sakina135246
QQ:2696243358
Tel:0086-15061825918
