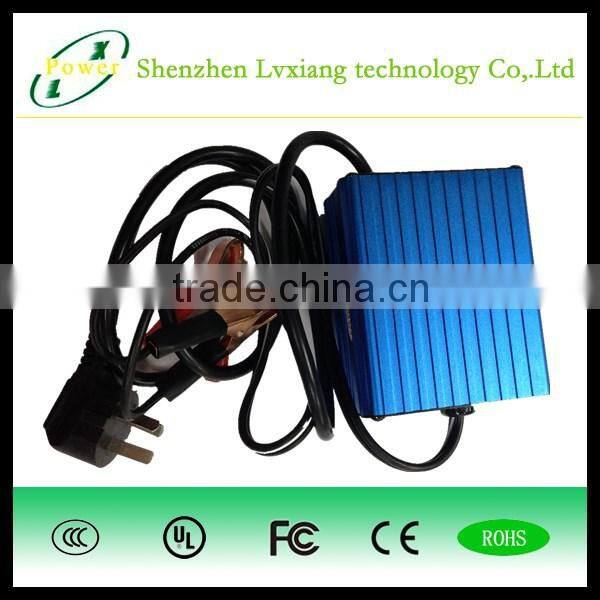

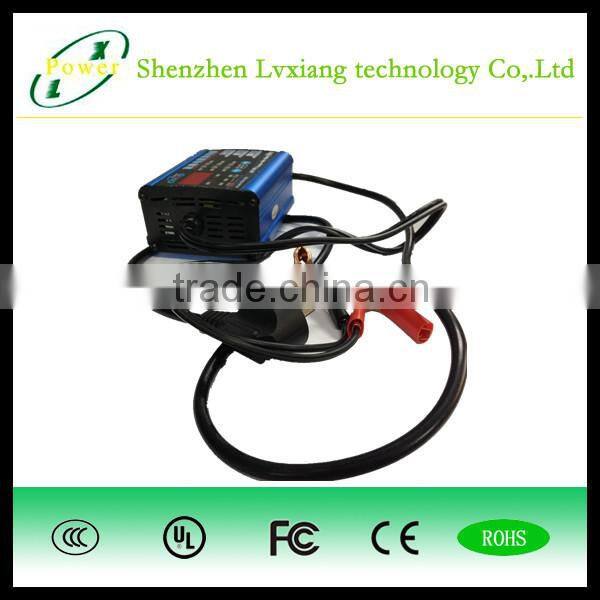

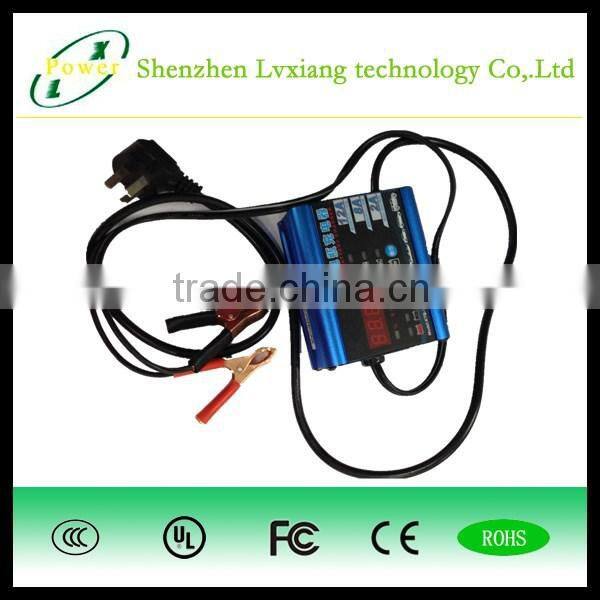

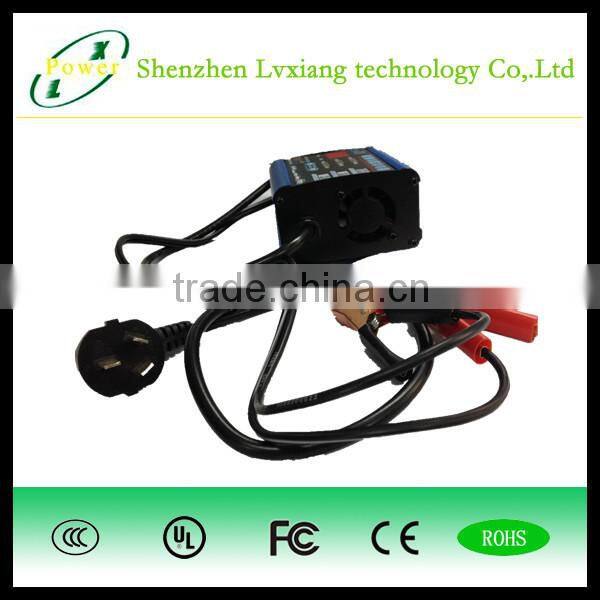

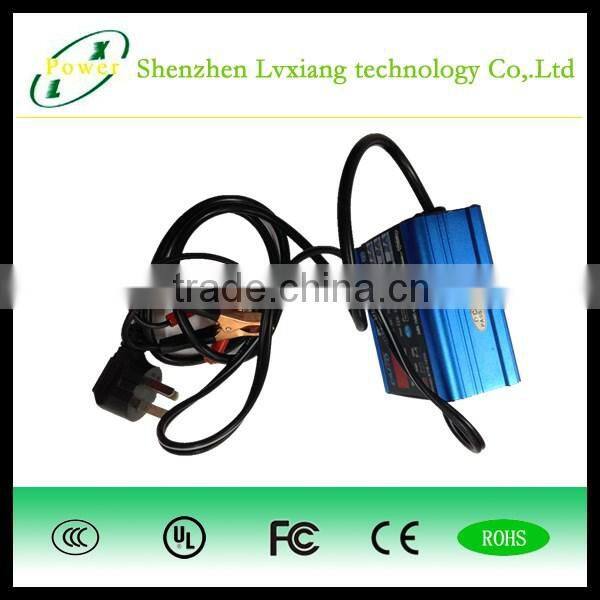

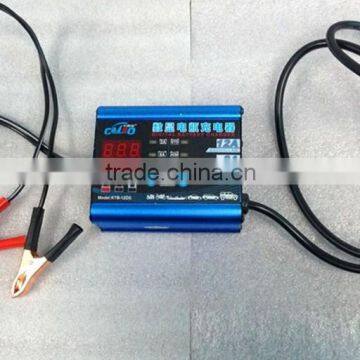

48W 12V 4A car battery charger/turbo charger/power inverter with charger
2.Charging process fully controlled
3.CE certification battery charger
4.Lead acid battery for car
Connection:
1. Cut off the supplied battery clips; ensure you leave sufficient cable to reach the battery terminals. (DO NOT extend the battery charger DC cables, as the added voltage drop will cause incorrect charging)
2. Fit a ring terminal to the BLACK Negative (-) wire.
3. Connect the inline fuse to the RED Positive (+) wire.
4.Connect a ring terminal to the other end of the inline fuse.
5.Connect the RED lead (with inline fused and ring terminal) to the Positive (+) battery post.
6. Connect the BLACK lead (with ring terminal) to the negative (-) battery post.
7. Fit the correctly rated fuse.
Specifications:
Type |
7-Stage Automatic |
Input Voltage |
220-240V~, Hz 110V~, 600Hz |
Input Power |
332W |
Output Voltage/ Current |
12V DC, 12,000mA |
Minimum Start Voltage |
2V |
Current Fuse Rating |
250V AC, T 3.15A |
CHARGE CONRTOL | |
Desulption |
Pulse charge to 11V |
Soft start |
Half the rated set current up to 12V |
Bulk |
12,000mA (up to 14.4V) |
Absorption |
Constant voltage until current drops to 1.8A |
Bettery test |
Monitors voltage for 90 seconds |
Recondition |
Constant current (1.8A) up to 16V for 14 hours. |
Float |
13.8V also with pulse feature. |
Efficiency |
App. 85% |
Short Protect |
Short Circuit Protection |
Polarity Reverse |
Polarity Reverse Circuit Protection |
Non battery link protection |
Circuit protection |
Link battery type mistake |
Circuit protection |
Over voltage protection |
17.5 V |
Thermal Protect |
65°C +/- 5°C |
Cooling fan |
Automatic temperature controlled |
BATTERY RANGE | |
Deep cycle |
80-240Ah |
Types of batteries |
Most type of lead acid batteries including Calcium, GEL and AGM. |
Dimension (L x W x H) |
215 x 115 x 62 mm |
Weight |
1.1 kg |
1. Exported standard colorful carton packing, or according to your request.
2. 35-45 working days upon receive the deposit
