H Beam Flange Web Plate Automatic Assembly Machine

FOB Price

US$ 10,000 - 29,800 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	YQ(YaoQiang)
Model Number	Z15 / Z18 / Z20	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

I/H beam Automatic assembly Machine

Brief Description:

H-beam automatic assembly machine is a kind of H-beam full-automatic assembly equipment based on extensive market. Positioning of flange and web is adopted with hydraulic transmission, both sides clamped and aligned mechanically, ensuring precise positioning of web and flange of different width within specified range. Automatic alignment is accurate,no need to adjust every time.

Main technical specifications:

1,The main structure: Main frame,upper gate frame,synchronous clamping and centralizing system of web and flange, main transmission motor reducer;

2.Applicable workpiece specifications: Web height:200-2000mm,Flange width:200-800mm,Length:4000-15000mm;

3,Clamping system:Web and flange automatic clamping;

4,Inlet table roller system: Active and passive table roller: 2.6m*3sets, tension rod: 3 sets;

5,Outlet table roller system: Active and passive table roller: 2.6m*3sets;

6,Hydraulic system: Oil bump station,high pressure rubber pipe,and hydraulic cylinder.With pressure keep and Time delay function;

7,Electric control system: Electric cabinet,AC frequency converter and etc;

8,Host drive control: Ac motor + Cycloidal reducer;

9,Power: AC 380V frequency 50Hz 3 phase;

10,Adopt imported technology of frequency converter to AC frequency convertor centralizes and locates the web and flange,and realize automatic working;

11,CO2 gas shield welding or manual welding are optional for user.

Model	Z15	Z18	Z20
web height mm	200-1500	200-1800	200-2000
web thickness mm	6-50	6-50	6-50
web length mm	4000-15000	4000-15000	4000-15000
flange width mm	200-800	200-800	200-800
flange thickness mm	6-80	6-80	6-80
assembly speed mm/min	500-6000	500-6000	500-6000
feeding table roller mm	2600×2	2600×2	2600×2
output table roller mm	2600×2	2600×2	2600×2
centralized way	hydraulic link mechanism clamp,centralize and weld in the middle automaticly
speed control	imported AC frequency adjustor stepless adjust
input volumn	16KVA exclude wellding power
welding system	2 sets of CO2 protecting welding machine

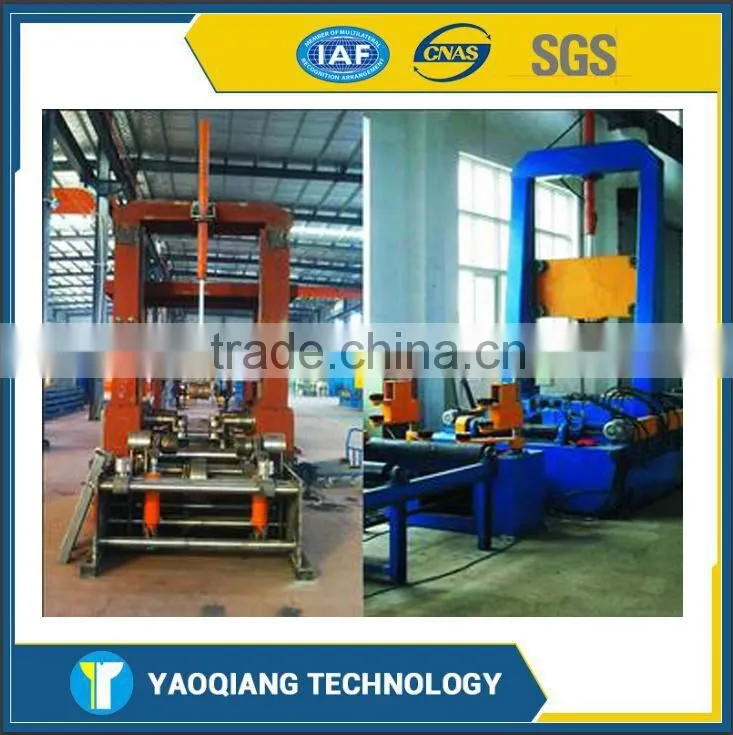

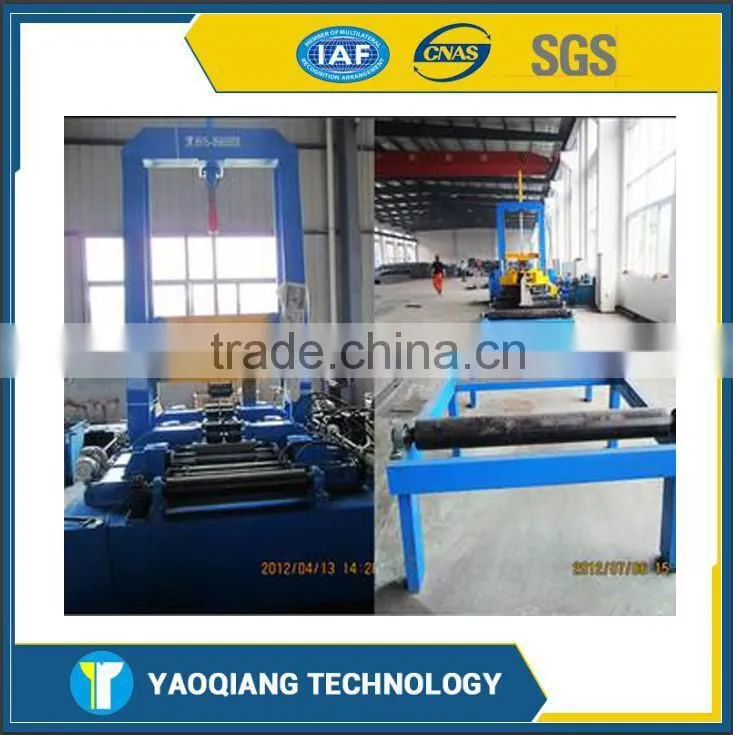

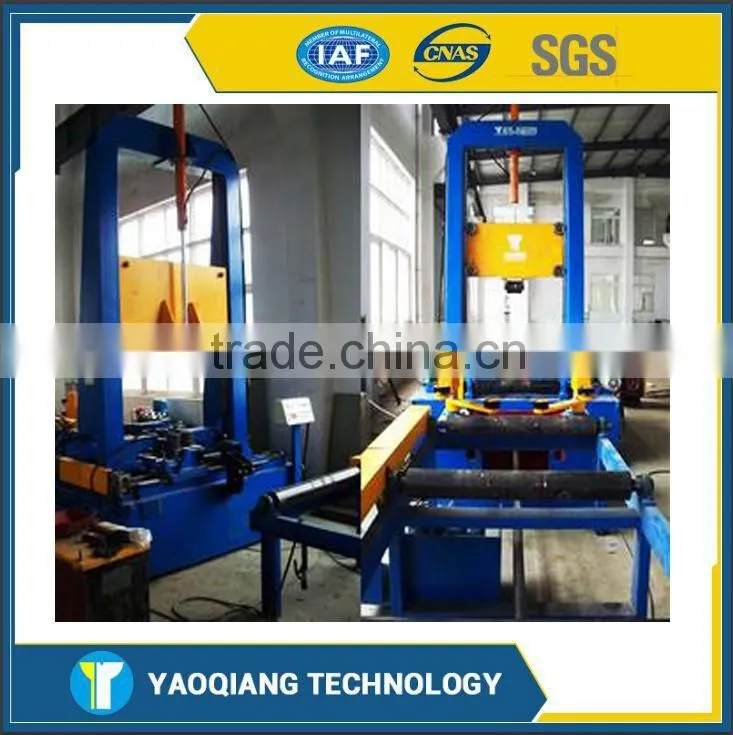

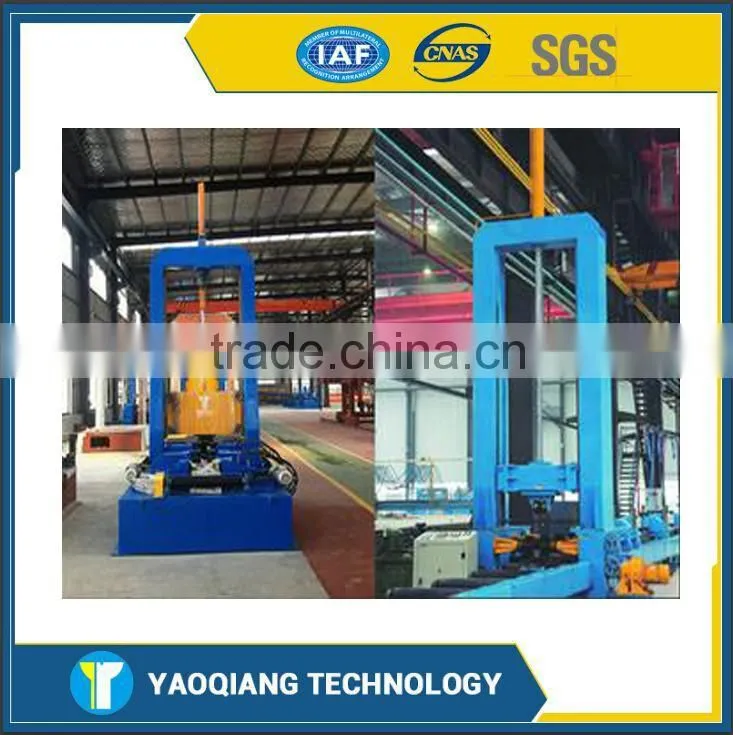

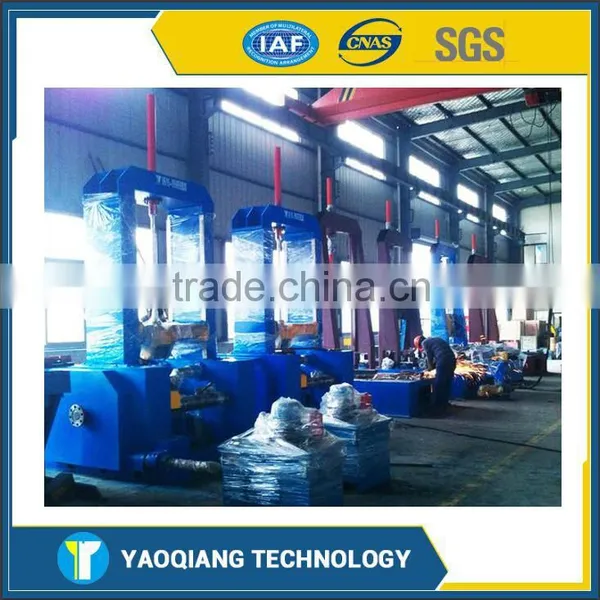

H Steel Assembling Machine Images Show:
