Help CenterCo-rotating Double /coinical Twin Screw Barrel for Plastic Extruder Machine
Related Products
-
80/156 Conical Twin Screw and Barrel for Extrusion MachineUS$ 800 - 12,000MOQ: 1 Piece -
Twin Conical Screw and Barrel for PVC Plastic Extrusion MachineUS$ 1,100 - 4,100MOQ: 1 Piece
-
Parallel Double or Twin Screw Barrel for HDPE LDPE MaterialUS$ 900 - 2,700MOQ: 1 Piece
-
Conical Twin Screw and Barrel Competitive Price SupplierUS$ 150 - 6,800MOQ: 1 Piece
-
Bimetal Conical Twin /Parallel Twin Screw BarrelUS$ 2,600 - 18,000MOQ: 1 Piece
Specifications
1) MATERIAL: 38CRMOALA2) Heat-treatment: Nitriding
3) GUARANTEE TIME: MORE THAN 1 YEAR
4) Best quality and price

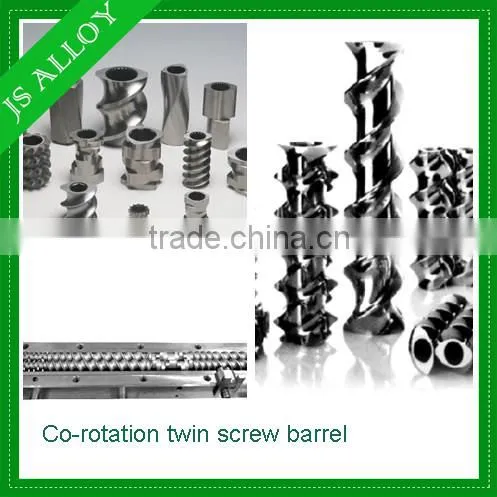

Topic: Co-rotating double /coinical twin screw barrel for plastic extruder machine
Conical twin screws and barrels
Specification:
1) OD35/75MM-OD92/188MM
2) Heat treatment: Nitration treatment
3) Depth of Nitration:0.5-0.8mm
4) Hardness of Nitration:950-1020Hv
5) Fragility of Nitration: less than grade 1
6) Roughness of surface: Ra 0.4um
7) Linearity of screw: 0.015mm
| Item | Types of Scres(d/D) | Length of Work(mm) | Quantity of Extruder(Kg/h) | Speed of Screw rotate(rpm) |
| JS1 | φ35φ77 | 810 | 40-70 | 5-50 |
| JS2 | φ45φ90 | 990 | 50-80 | 5-45 |
| JS3 | φ50φ105 | 1070 | 100-150 | 4-45 |
| JS4 | φ51φ105 | 1220 | 100-150 | 4-45 |
| JS5 | φ55φ110 | 1220 | 120-180 | 4-40 |
| JS6 | φ60φ125 | 1320 | 150-200 | 4-40 |
| JS7 | φ65φ120 | 1440 | 200-250 | 4-40 |
| JS8 | φ65φ132 | 1440 | 200-250 | 4-40 |
| JS9 | φ70φ140 | 1460 | 220-300 | 4-40 |
| JS10 | φ75φ150 | 1480 | 250-320 | 4-35 |
| JS11 | φ80φ143 | 1660 | 300-360 | 4-35 |
| JS12 | φ80φ156 | 1800 | 300-360 | 4-35 |
| JS13 | φ90φ184 | 2000 | 400-500 | 3-35 |
Physical Characteristics of Bimetallic
| Characteristics | Alloy | Hardening (HRC) | Base material |
| Abrasion resistance | Fe+Ni+Cr+B | 58-64 | 45/40Cr |
| Anti-corrosion | Ni+Cr+Co+B | 50-58 | 45/40Cr |
| Abrasion resistance &Anti-corrosion | Fe+Ni+Cr+Co+B | 56-64 | 45/40Cr |
| High Abrasion resistance &Anti-corrosion | Ni+Cr+Wc+Co+B | 58-67 | 45/40Cr |
Jinsheng History
1) Jinsheng Bimetallic Plastic Machnery Factory was established in 2004.
2) It was developed as a large-scale and comprehensive company specializing in manufacturing the kinds of Screws and Barrels in Zhoushan.
3) Include bimetallic barrel & screw ,conical twin screws & barrels ,parallel twin screws & barrels,single screw &barrel , rubber screw & barrel ,planetary screw & barrel and components
4) Apply for injection molding machine and extruder machine .
5) Sales to America, Germany, Brazil, Russia, Ukraine, India, Pakistan,Egpyt,Argentina and some other countries and regions
6) Based Material: #45 steel,40Cr,38CRMOALA, 42CrMo,SKD11,SKD61 and high temperture ALLOY etc.
1) strong and solid export wooden case with foam inside
2) plastic film case package
3) suitable to transportation
4) as buyer request
Jinsheng with more than 1 year guarantee for screw and barrel!
For each product will be inspected before shipment!
Jinsheng can design the drawing according to cusotmer request!
Picture for Conical Twin Screws and barrels
