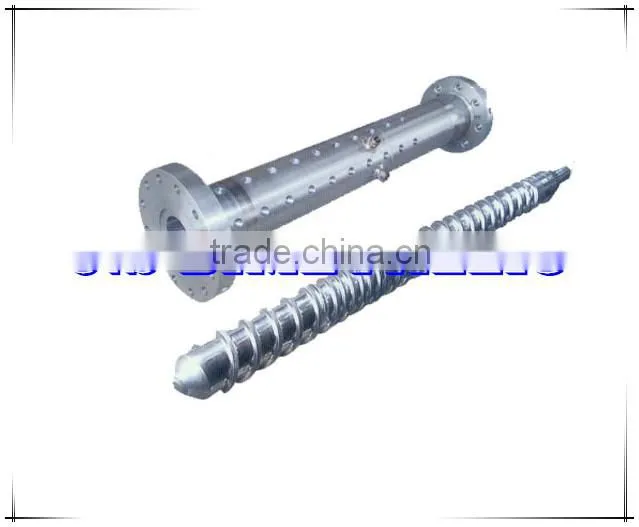

Rubber Screw and Barrel for Rubber and Plastic Machine
US$ 2,800 - 19,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JS BRAND
Model Number:
JS-
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rubber Screw BarrelUS$ 500 - 50,000MOQ: 1 Set -
Cold Feed Rubber Screw Barrel for Rubber MachineUS$ 1,200 - 1,200MOQ: 1 Piece
-
PE Foam Recycling Machine Rubber Screw BarrelsUS$ 1,200 - 1,200MOQ: 1 Piece
-
Rubber Extrusion Pin Screw BarrelUS$ 1,200 - 1,200MOQ: 1 Piece
-
Plastic & Rubber Machine Parts Twin Screw BarrelUS$ 1,200 - 1,200MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
JS BRAND
Model Number
JS-
Product Description

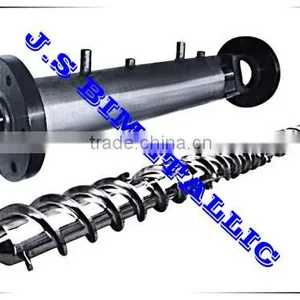

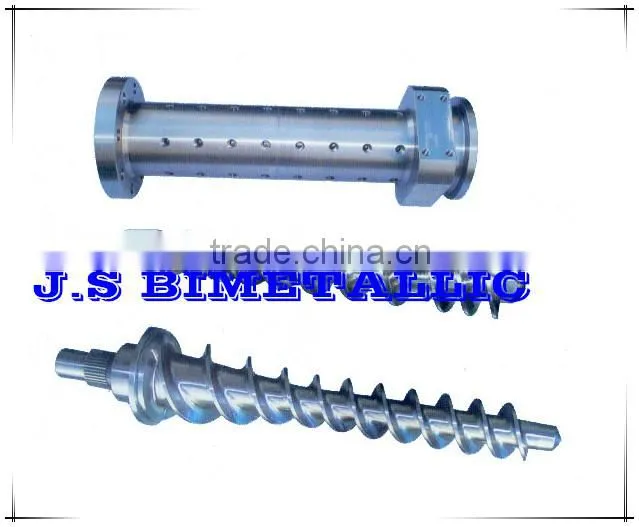

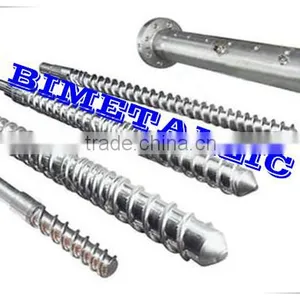

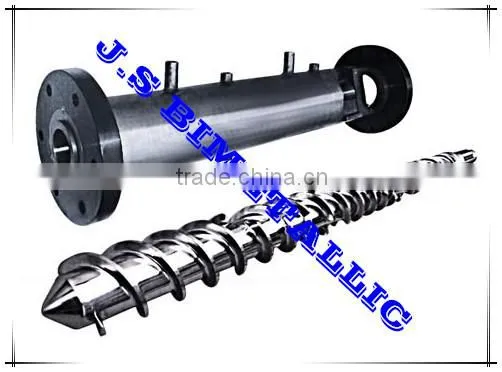

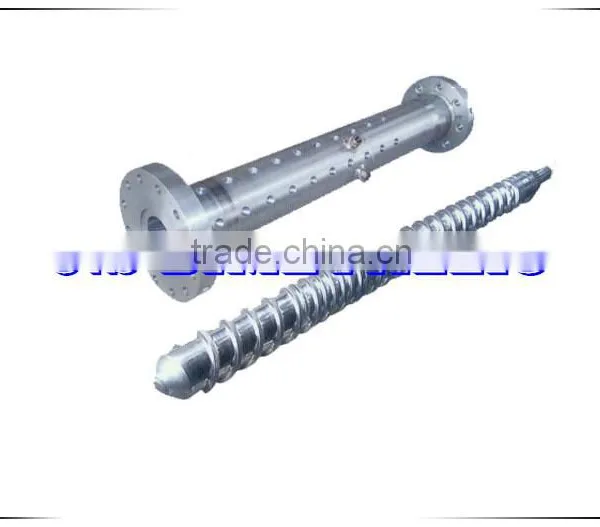

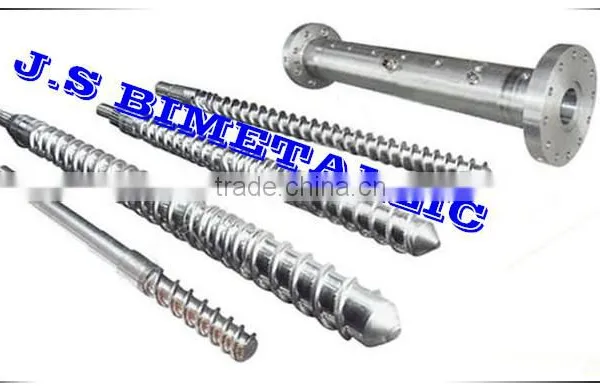

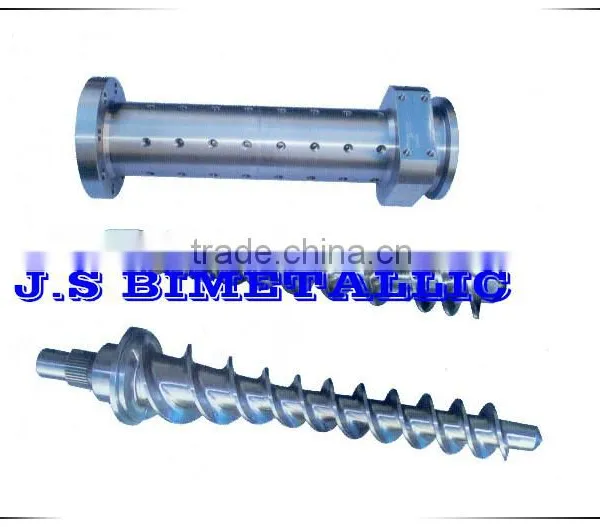

Rubber Screw and Barrel:

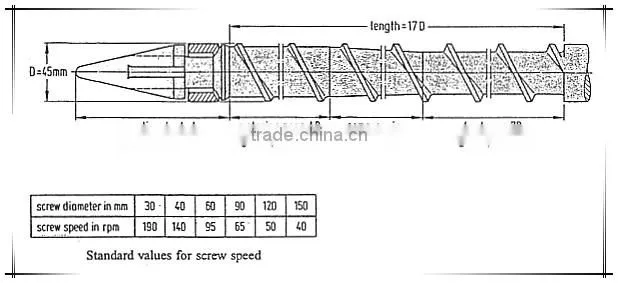

Screw diameter: OD30MM-300MM
Length to diameter ratio: L/D=4-20
Types of pin screw and barrel: OD75MM-200MM
Cold/heat feeding material screw and barrel: OD30MM-250MM
Instructions for 38 crmoala Screw:
1.We are a professional company specialized in manufacturing many types of screw, the barrel can be applied on all types of injection moulding machine,rubber hot-feeding extruder, rubber cold-feeding extruder, pin barrel cold feed extruder, plastic extruder with different specifications.

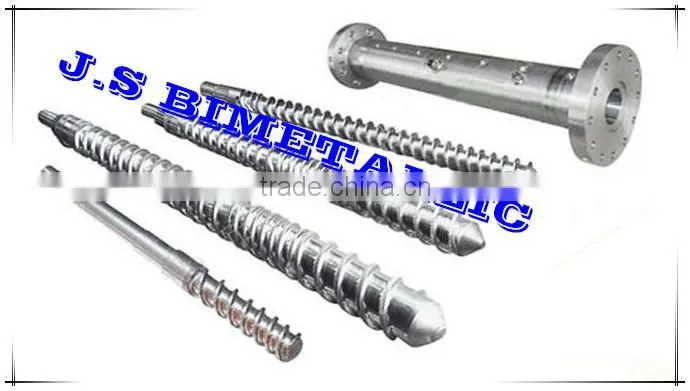

2.The models of screw include:
2.The models of screw include:
Variable pitch and variable depth, variable pitch and equal depth, variable depth and equal pitch, and equal depth and pitch.
Groove multi-die type, composite type, mixing type and separating type.
3. The material of screw: manufactured with high-quality nitro alloy steel, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.
Information:
| MATERIAL | HEAT-TREATMENT |
| 38CRMOALA | NITRIDING TREATMENT |
| 42CRMO | BIMETALLIC ALLOY COATING |
| 40CR | HARD-CHROME ELECTROPLATED |
| SKD11 | VACUUM QUENCHING |
| SKD61 | HIGH-FREQUENCY |
Technical Parameter:
| Depth of Nitration | 0.5-0.8mm |
| Hardness of Nitration | 950-1020Hv |
| Roughness of surface | Ra 0.4um |
| Fragility of Nitration | Less than grade 1 |
| Linearity of screw | 0.015mm |
| Depth of double alloys | 2-3mm |
| Hardness of double alloys | HRC58-62 |
Our Services
Jinsheng Services and Advantage:
1) Jinsheng have more than 1 year quarantee
2) Jinsheng have over 10 years history
3) Jinsheng have a strong work-hard team
4) Jinsheng is the first factory to make the bimetallic screw and barrel
5) Jinsheng will handle all difficult for products
6) Jinsheng will meet customer request
7) Jinsheng will be keeping improving
Jinsheng product flow:
| ORDER | |
| DESIGN & DRAWING | |
| PROCESSING & PRODUCTING | |
| FINISHED PRODUCTS | |
| INSPECT | |
| CONFIRMED BY BUYER | |
| SHIPPING | |
Packaging & Shipping

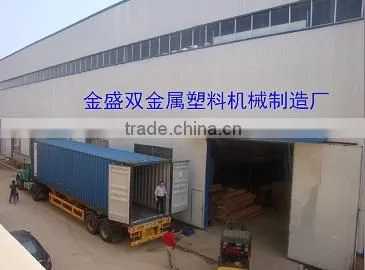

Jinsheng welcome you visit our factory !!!
