Home > Manufacturing & Processing Machinery > Woodworking Machinery > Other Woodworking Machinery > BQ1226/8E Hydraulic Single-chuck Rotary Lathe

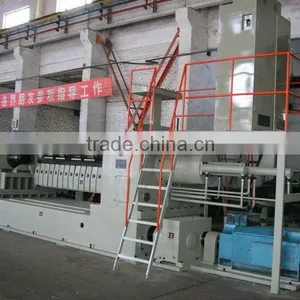

BQ1226/8E Hydraulic Single-chuck Rotary Lathe
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BSY
Model Number:
BQ1226/8E
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
BSY
Model Number
BQ1226/8E
Specifications
BQ1226/8E Hydraulic Single-chuck Rotary Lathe| MODEL | BQ1226/8E(E1) | BQ1226/8F(F1) |
| Max.cutting diameter(mm) | Φ170-Φ800 | Φ170-Φ800 |
| Max,cutting length(mm) | 2150-2700 | 2150-2700 |
| Range of veneer thickness(mm) | 0.35-3.9 | 0.35-4.2 |
| Chuck diameter(mm) | Φ100 | Φ130 |
| Max.rotating speed of spindel(rpm) | 0-200 | 0-200 |
| Quick forward and backward speed of tool cartridge(m/min) | 1.8 | 1.8 |
| Main motor power(kw) | 75 | 75 |
| Rapid feed motor power(kw) | 4 | 4 |
| Hydraulic motor power(kw) | 7.5 | 7.5 |
| Grinding angle of appropriate tool cartridge | 18o-22o | 18o-22o |
| General motor(kw) | 89.5 | 89.5 |
| Overall dimensions(mm) | 8250×2855×1554 | 8250×2855×1554 |
| Weight(kg) | 16500 | 16500 |
