Specifications

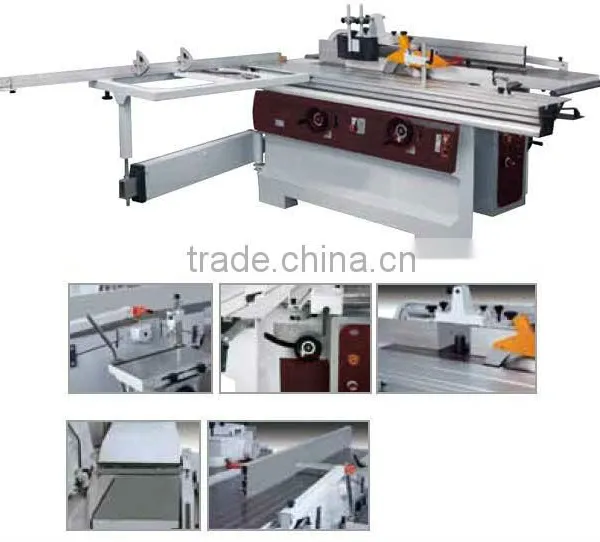

Combined saw cutting,Planning,Thicknesser,Mortiser,Shaper functins in one. Be liked by many professional carpenter man.With CE certificate.
Cutting Saw
Max. sawing length 2250mm
Max. sawing thickness 80mm
Main saw motor power 3kW
Main spindle speed 3800r/min
Main spindle diameter 30mm
Main saw blade diameter 300mm
Saw blade tilt angle 45°~90°
Scoring saw
Scoring saw rotation speed 8000r/min
Scoring spindle diameter 20mm
Scoring saw blade diameter 100mm
Shaper
Milling spindle stroke 200mm
Max. milling height 120mm
Milling spindle diameter 35mm
Milling spindle motor power 3kW
Milling spindle rotation speed 3500,6000,8000,10000r/min
Planing
Max. planing width 400mm
Max. planing depth 5mm
Planing spindle speed 5200r/min
Planing spindle diameter 87mm
Planing motor power 3kW
Thicknesser
Planing thickness 6~210mm
Feed speed 6m/min ; 12m/min
Mortiser
Max. mortise depth 100mm
Max. mortise width 16mm
Table lengthways stroke 105mm
Table transverse stroke 160mm
Boring
Bit fitting diameter .16mm
Mortising table size 470×230mm
Send Inquiry to This Supplier
