Specifications
1. Max. Processing width: 1300mm2. Max. processing height: 120mm
3. Heavy-duty welt belt sanding machine

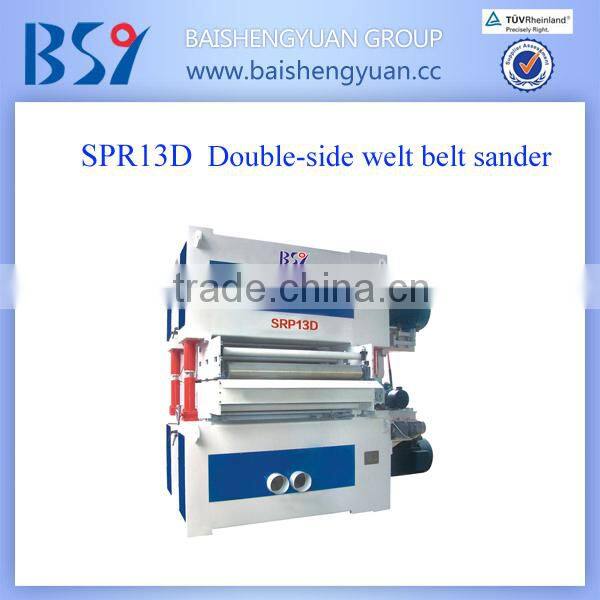

SRP 13D Characteristics
Incorporating advanced technology ,using high quality imported parts and accessories and featuring stable performance ,precision double-side processing with thickness tolerance of± 0.1mm.
The machine is structured by cold forming rectangle steel,noted for high rigidity,vibration damping and deformation free.
Easily operated inverter speed regulator for reliable meterial feeding.
Simplified operation of the computer terminal with the industrial-grade touch screen.
SRP 16D/SRP20D Characteristics
The sanding roller is disposed by using foreign technology.
The machine adopts the advanced computer terminal than makes the operation easy and clear.
The conveyor table is supported by precision ball screws,providing extremely smooth and accurate table elevation.
The main parts is foreign technology of no weldment.
SRP 13D Technical features
Working thickness |
3-90mm |
Motors |
Feed motor |
11kw |
Working length |
>900mm |
Litft motor |
1.5kw |
|
Working width |
200-1300m |
Compressed air |
Brush motor |
1.5kwx2 |
Abrasive belt speed |
24m/s |
Working air pressure |
0.6Mpa |
|
Size of abrasive belt(WxP) |
1350x2800mm |
Exhaust air consumption |
Consumption |
0.15m3/min |
Feed speed |
6-30m/min |
Exhaust air consumption |
24000m3/h |
|
Main motor |
75kwx2 |
Pressure |
1300pa |
|
Air speed |
25-30m/s |
|||
Overall dimension (LXWXH) |
2200x3360x2900mm |
Net weight |
15T |
|
SRP 16D Technical features
Working thickness |
3-90mm |
Motors |
Feed motor |
11kw |
Working length |
>900mm |
Litft motor |
1.5kw |
|
Working width |
500-1600m |
Compressed air |
Brush motor |
1.1kwx2 |
Abrasive belt speed |
24m/s |
Working air pressure |
0.6Mpa |
|
Size of abrasive belt(WxP) |
1650x3000mm |
Exhaust air consumption |
Consumption |
0.15m3/min |
Feed speed |
6-30m/min |
Exhaust air consumption |
24000m3/h |
|
Main motor |
75kwx2 |
Pressure |
1300pa |
|
Air speed |
25-30m/s |
|||
Overall dimension (LXWXH) |
2200x3760x2900mm |
Net weight |
17T |
|
SRP 20D Technical features
Working thickness |
3-90mm |
Motors |
Feed motor |
11kw |
Working length |
>900mm |
Litft motor |
1.5kw |
|
Working width |
800-1900m |
Compressed air |
Brush motor |
1.5kwx2 |
Abrasive belt speed |
24m/s |
Working air pressure |
0.2Mpa |
|
Size of abrasive belt(WxP) |
1950x3000mm |
Exhaust air consumption |
Consumption |
0.15m3/min |
Feed speed |
6-30m/min |
Exhaust air consumption |
28000m3/h |
|
Main motor |
90kwx2 |
Pressure |
1300pa |
|
Air speed |
25-30m/s |
|||
Overall dimension (LXWXH) |
2200x4060x2900mm |
Net weight |
18T |
|
Why do you choose us:
1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.
2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

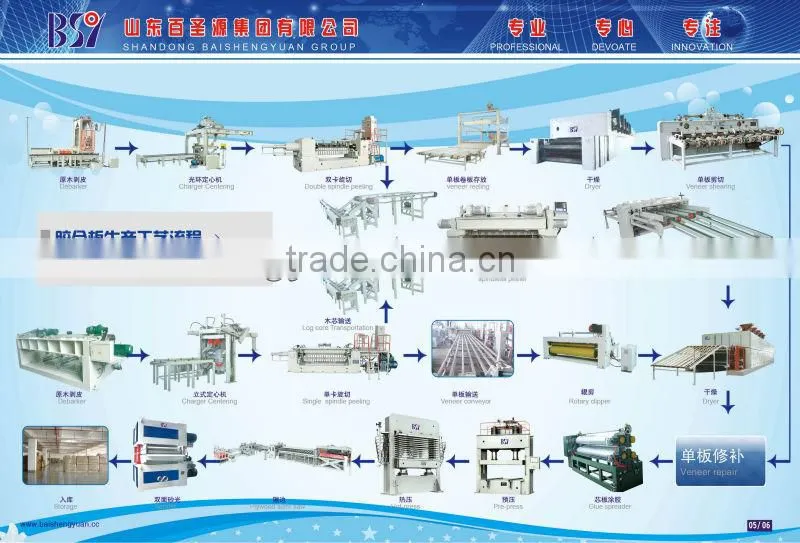

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four Side Moulders, Rip Saw, Finger Jointer Line, Profile Grinders, Double Side Planer,
Surface Planers, Bandsaw ,sanding machine etc.
