Home > Products > plywood machine > BQ1242/15 Plywood peeling machineRotary slicer

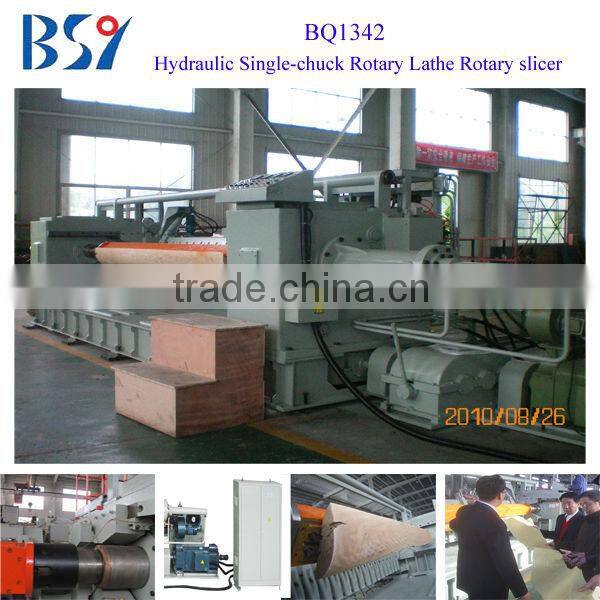

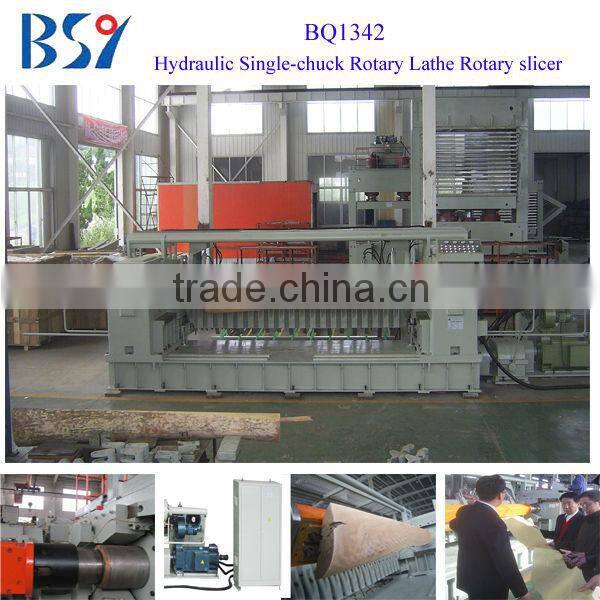

BQ1242/15 Plywood peeling machineRotary slicer
- 5 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Other, plywood | Place of Origin: | Shandong, China |
Brand Name: | BSY | Model Number: | BQ1242/15 | Voltage: | accoding to your requirement |
Power(W): | 105 | Dimension(L*W*H): | 11500x2320x2150 | Weight: | 40000 |
Certification: | CE,ISO9001 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Eccentric rotary slicer2. Semi-circular rotary peeling
3.Max.cutting length 2900-4200mm
4.veneer thickness 0.35-3mm
This machine is used to peel the semi-circle log without skin with single spindles into veneer. It is used to peel the face board.
MODEL | BQ1235/15 | BQ1242/15 |
Vertical stroke max load(mm) | 550-1500 | 310-1500 |
Max.cutting length(mm) | 2400-3500 | 2900-4200 |
Range of veneer thickness(mm) | 0.35-3.9 | 0.35-3.0 |
Chuck diameter(mm) | 160 | 180 |
Max.rotating speed of spindle | 0-100 | 0-100 |
Main motor power(mm) | 75 | 75 |
Rapid feed motor power(kw) | 5.5 | 5.5 |
Hydraulic motor power(kw) | 7.5 | 7.5 |
Rear angle motor | 0.75 | 1.5 |
General motor(kw) | 91.75 | 105 |
Overall dimensions(mm) | 10700×2320×2150 | 11500×2320×2150 |
Weight(kg) | 36000 | 40000 |
