Double Output AC/DC Power Adaptor

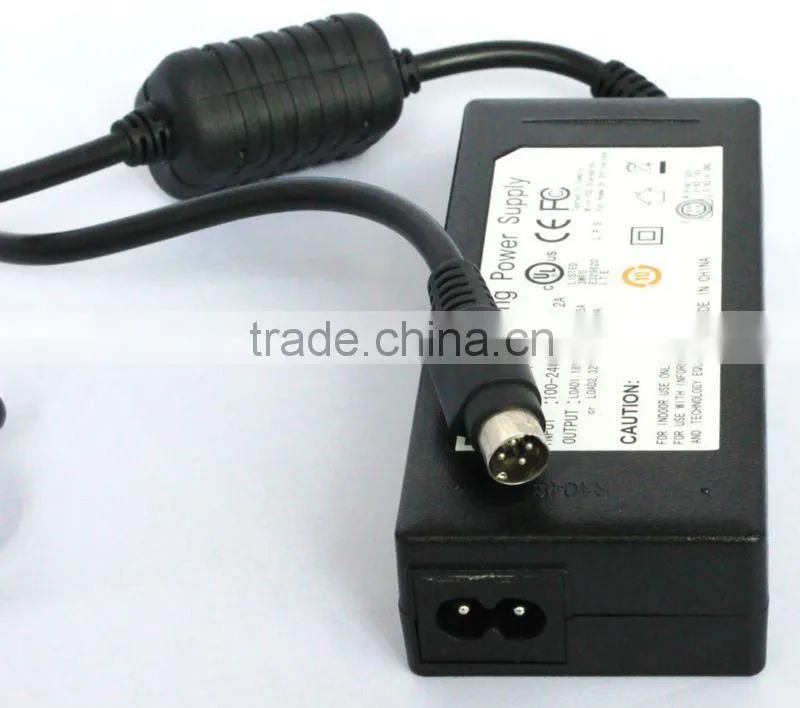

Double Output AC/DC Power Adaptor photo-1
US$ 5 - 7 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
uniontop
Model Number:
UT93
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name uniontop
Model Number UT93
Usage Other, Laptop, Usage
Output Type DC
Connection Desktop

Specifications

double output AC/DC power adaptor
1 Desktop switching adapter
2 compact size and easy to carry
3 CB/UL/cUL/PSE/BSMI/LPS/GS





double output AC/DC power adaptor

Desktop Type switching adapter
compact size and easy to carry



Features:

1, compact size and easy to carry

2, punctual delivery& Competitive price

3,single output to 90W

4,meet Safety Agency Requirements& Complies EMI/EMC

5,Modified and Customized design Available

6,1 year Warranty

7,CB/UL/cUL/PSE/BSMI/LPS/GS/CE certification passed

8, Desktop Type

Model:

Model

O/P Voltage

O/P Current

Watt

UT93-XXXYYY-ZZ

18/36

1.5/2.5Amax

45/48W

Remark: XXX Show the output voltage which vary from 18.0—19V, meantime YYY show the output current while vary from 0—4.74A, but the Max Watt will be 90W.

Parameters:

Input:

*Voltage: 100—240VAC

*Frequency:50—60Hz

*Current:1.2A Max

Output:

*Load Regulation: 5% Typical

*Ripple: 1-2%P-P Max.for Output Voltage&Full Load

*Transit Response: 0.5mS for 50%Load Change Typical

*Holdup Time: 10ms Full load

*Protection: Short Circuit Protection/ Over Voltage Protection/Over Current Protection

*DC Cord: 18AWG/16AWG/14AWG

Electronical

*Topology: Switching flyback

*Hi-Pot Withstand: 3000VAC Primary-Secondary

*Leakage Current: 0.25mA@2Pin

*Efficiency:Meet CEC&Energy Star

*EMI Conduction&Radiation: Compliance to EN55022 Class B

*Harmonic Current: Compliance to EN61000-3-2,3

*EMS immunity: Compliance to EN61000-4-2,3.4,5,6,8,11

*MTBF: 50,000 Calculated Hours at 25 , by ML-HDBK-217F









double output AC/DC power adaptordouble output AC/DC power adaptordouble output AC/DC power adaptor



About Us:


We provide LED power,switching power supply and AC/DC power adapter with good

quality and very competitive price. Hope to be a partner of your company! If  you are

interesting in it ,please contact with us at any times.



double output AC/DC power adaptor

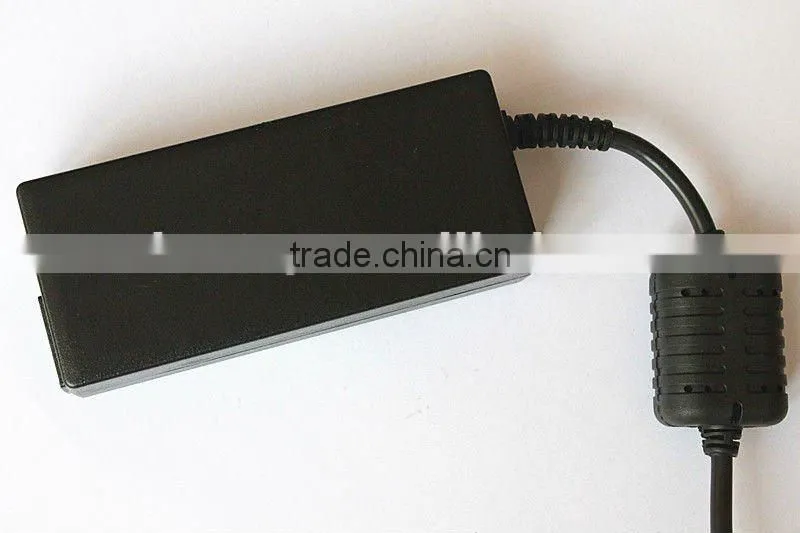

 Product  Picture 1 (wall mount  adapter)

double output AC/DC power adaptor

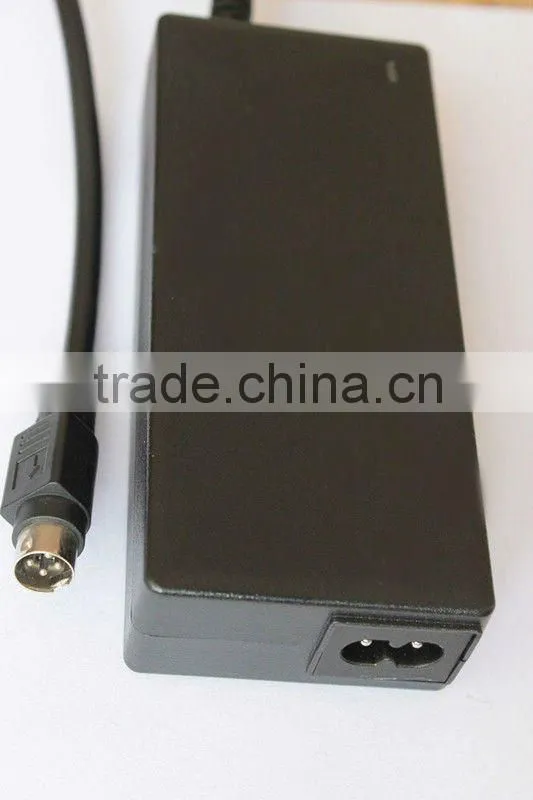

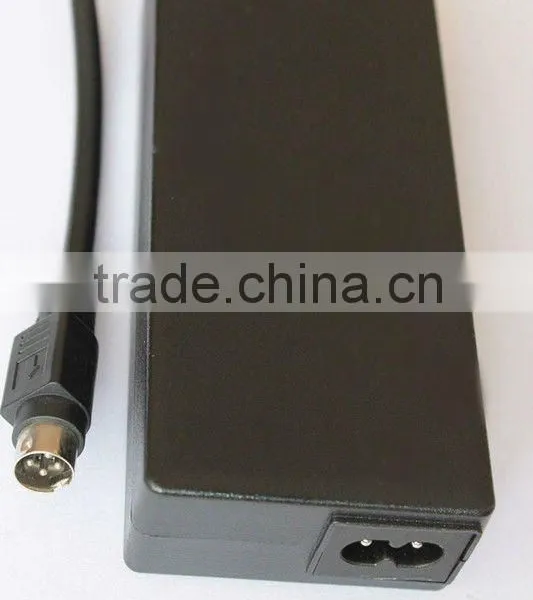

Product  Picture 2 (desktop adapter)

                   double output AC/DC power adaptor
