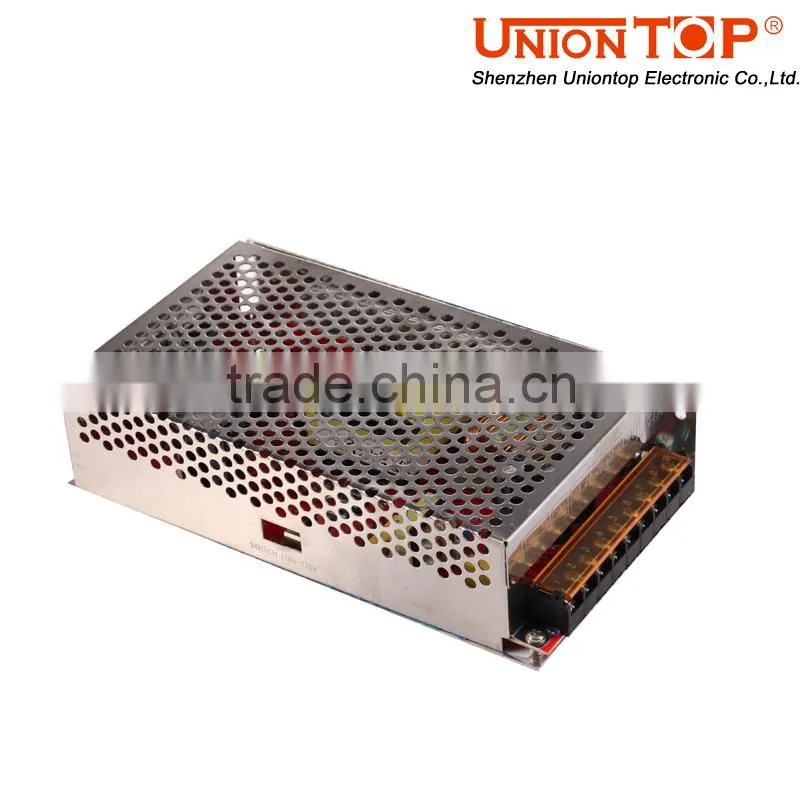

Wholesale 48v 2A switch mode power supply for industrial use
OUTPUT |
Model |
UT-S05200 |
UT-S1241 |
UT-S1566 |
UT-S2441 |
UT-S3627 |
UT-S4820 |
||
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
|||
Rated current |
20A |
8.3A |
6.6A |
4.1A |
2.7A |
2A |
|||
Current range |
0 ~20A |
0 ~8.3A |
0 ~ 6.6A |
0 ~4.1A |
0 ~2.7A |
0 ~2A |
|||
Rated power |
100W |
100W |
100W |
100W |
100W |
100W |
|||
Ripple & Noise (max) |
75mVp-p |
90mVp-p |
90mVp-p |
120mVp-p |
150mVp-p |
180mVp-p |
|||
Voltage adjustable range |
3~ 7v |
10 ~ 14v |
13~ 17v |
22 ~ 26v |
34 ~ 38V |
46 ~50V |
|||
Voltage tolerance |
±5.0% |
±4.0% |
±4.0% |
±3.0% |
±3.0% |
±3.0% |
|||
Line regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|||
Load regulation |
±5.0% |
±4.0% |
±4.0% |
±3.0% |
±3.0% |
±2.0% |
|||
Setup, Rise, Hold up time |
500ms,20ms,30ms/230VAC 500ms,20ms,10ms/115VAC(when full load) |
||||||||
INPUT |
Voltage range |
90 ~ 264VAC or 135 ~ 370VDC |
|||||||
Frequency range |
47-63Hz |
||||||||
Efficiency(Typ) |
75% |
83% |
85% |
78.5% |
80% |
80% |
80.5% |
||
AC Voltage |
0.31A/115VAC 0.16A/230VAC |
||||||||
Inrush current(max.) |
25A/115VAC 45A/230VAC(cold start) |
||||||||
Leakage current(max) |
0.25mA/240VAC |
||||||||
PROTECTION |
Over temperature |
Crystal internal junction exceeds 140 ℃, Reset: Auto Recovery |
|||||||
Protection type: close output voltage, Automatic recovery after temperature drop | |||||||||
Overload |
5V:>rated output power 105%; 7.5 ~ 48V: rated output power 110% |
||||||||
Protection type: Hiccup mode, recovers automatically after fault condition removed | |||||||||
Over voltage |
>rated output voltage 150% ~ 170% |
||||||||
Protection type: diode-clamp | |||||||||
ENVIRONMENT |
Working temperature |
0 ~ +50℃ |
|||||||
Working humidity |
20 ~ 90%RH, Non-condensing |
||||||||
Storage temp and Humidity |
-20 ~ +85℃,10 ~ 95%RH |
||||||||
Temperature coefficient |
±0.03%/℃(0 ~ 40℃) |
||||||||
OTHERS |
MTBF |
≥1414.6Khrs MIL-HDBK-217F(25℃) |
|||||||
Packaging |
Export Carton with Standard or customise |
||||||||
Shenzhen Union Top Electronics Co., Ltd. was established in 2001, located in Shenzhen, Guangdong, China. Our company is a high-tech enterprise specializing in developing, producing and operating 5W~180W ac dc power adapter,universal adapter,switching power supply.cable,LED driver,Car Charger .
Union Top integrates designing, molding, manufacturing, testing, and finishing products. We comprise with a team of professional engineers and managers together with the sophisticated equipments for production and ... View detail
