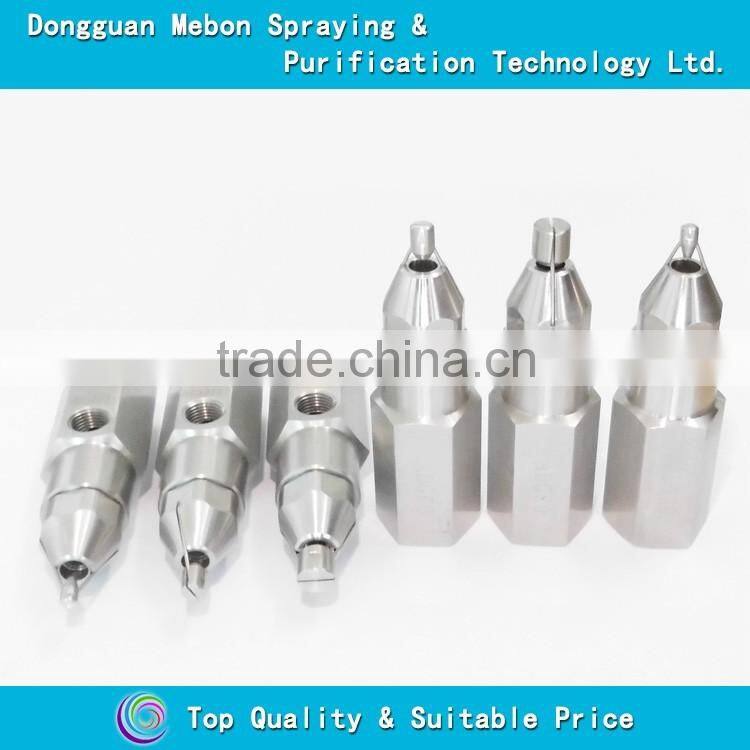

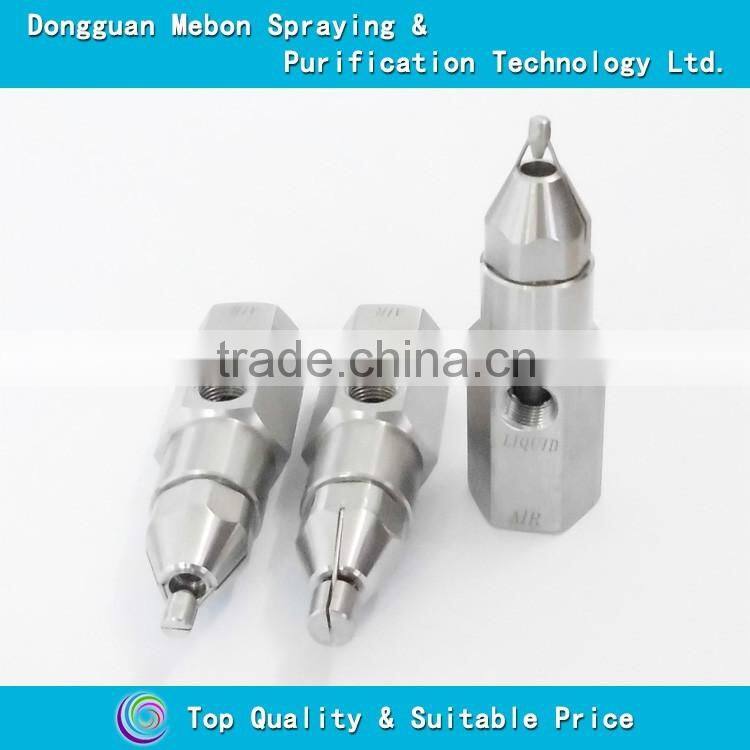

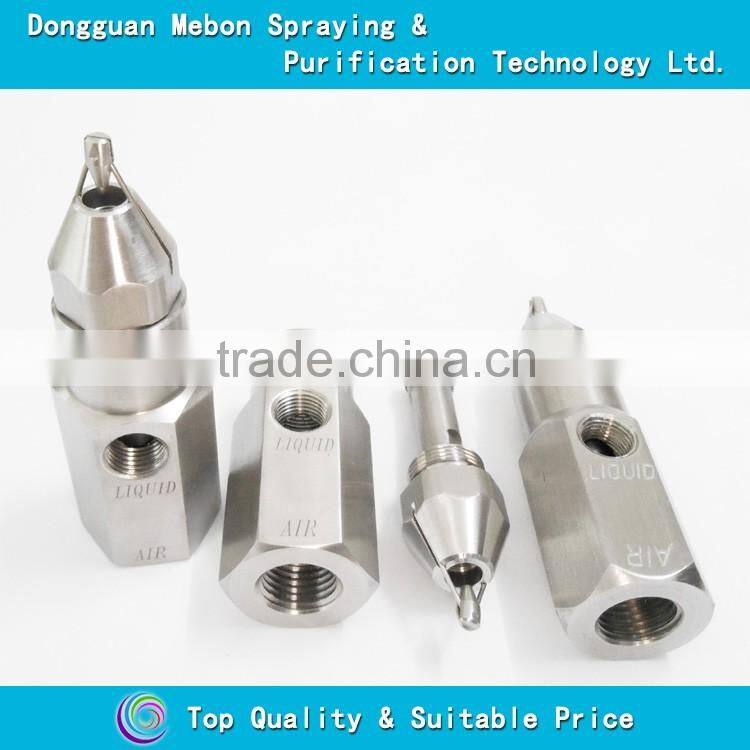

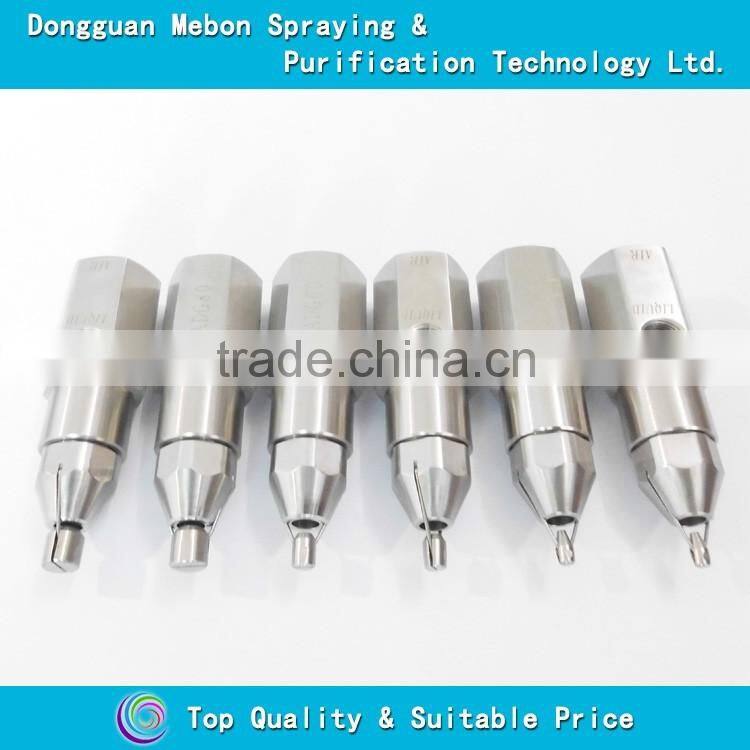

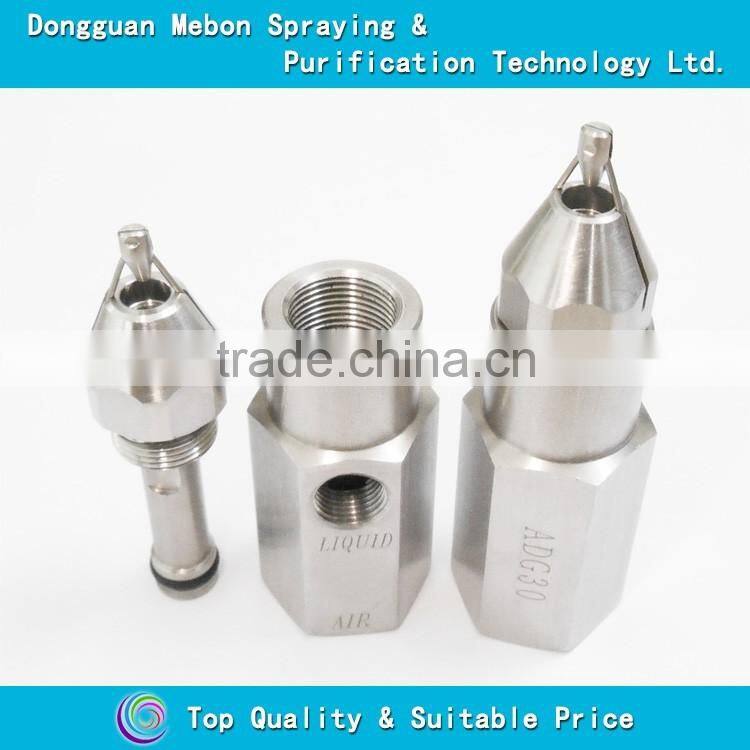

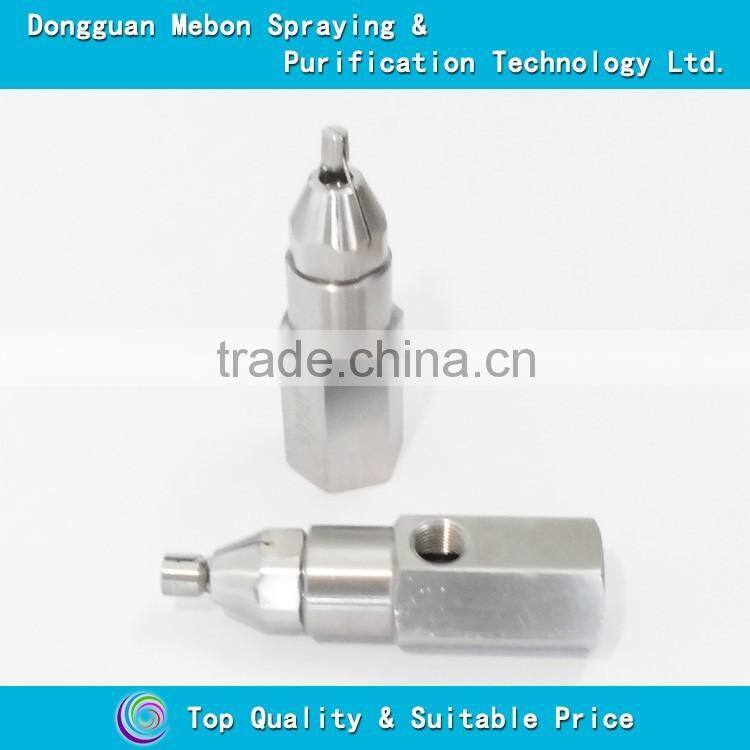

Dry Fog Ultrasonic Atomzing Nozzle,30 Degree Ultrasonic Mist Nozzle

Name: Dry Fog Ultrasonic Atomzing Nozzle,30 Degree Ultrasonic Mist Nozzle
Brand: Mebon
Availability: InStock

FOB Price

US$ 50 - 100 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Mebon
Model Number	ADG		Condition	New

Product Description

dry fog ultrasonic atomzing nozzle,30 degree ultrasonic mist nozzle

Design feature

1.Stainless steel ultrasonic atomizing nozzles with the ability to creat extremely fine droplets--the so-called "dry fog", with droplets size 1-10 Microns.

2.The mechanical ultrasonic nozzle has a carefully designed resonator to produce high frequency wave. Compressed air passes through the nozzle's inner bore through a convergent/divergent section at high velocities and expands into a resonator cavity where it is reflected back to complement and amplify the primary shock wave.

The result is an intensified field of sonic energy focused between the nozzle body and the resonator cap. Any liquid capable of being pumped into the shock wave is vigorously sheared into fine droplets by the acoustic field. Air bypassing the resonator carries the atomized droplets downstream in a soft plume shaped spray.

3.Application

Dry fog nozzle have proven to significantly reduce fugitive dust from a variety of material handling points, including conveyor transfer points, trippers, reclaimers, crushers, screens, truck dumps, railcar loading/unloading, and ash silo discharge chutes.

Categories	ADG 80°	ADG 30°	ADG 60°
Gas pressure	5.2bar	3.5bar	5.2bar
Water pressure	1.5bar	0.6bar	1.2bar
Gas consumption	115L/Min	260L/Min	240L/Min
Water consumption	7.1L/Hr	45L/Hr	20L/Hr
Atomizing granularity	3-6microns	4-10microns	7-10microns
Gas filtration demand	<40microns	<40microns	<40microns
Water filtration demand	<50microns	<50microns	<50microns

Product Show

Factory

Workshop

Packaging

Why Mebon?

1. Sufficient support for our representatives.

2. OEM service available based on official & legal authorization.

3. Strict quality control system.

4. Faster lead time than our competitors.

5. Excellent quality with reasonable price.

6. Strong technical support

7. Nozzle solutions to your particular requirements.

8. Sample is available with economic express fee.
