Tiller Blade

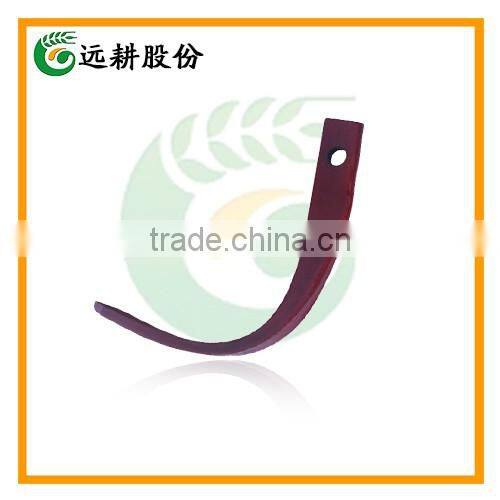

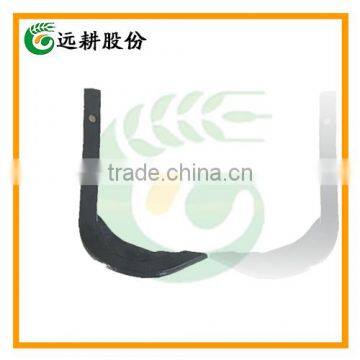

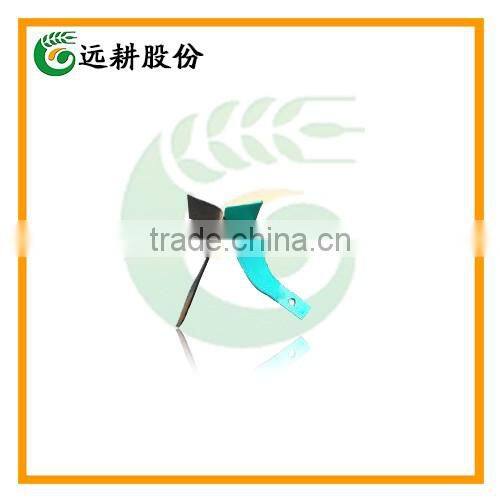

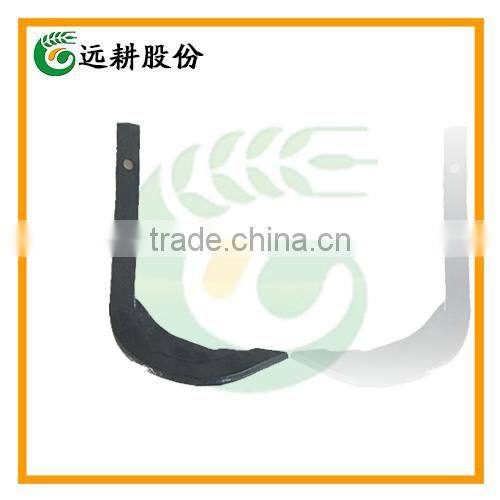

Hot Selling Farm Plow J type Tiller Blades For Subsoilers
Specificaiton Details:
1 | Item Name | Dryland tiller blade |
2 | Material | 65Mn, 60SI2MN, 28SiMnB |
3 | Technique | Hot Forging |
4 | Surface Treatment | Spray Paint,Power Painting, |
5 | Color | Black,Blue,Gray,Green,Yellow,Orange or according to your requirement |
6 | Heat Treatment | Normalized-hardened & Tempered |
7 | Hardness | 40-50HRC |
8 | Working Hours | 300-400 |
9 | Feature/Characteristic | Long using life and the reasonable price,smooth surface |
10 | Advantages | Professional production team,excellent engineer,high quality productions |
11 | Place of origin | Jiangxi |
12 | Package | Carton and pallet. Otherwise we can supply the package according to your requirement if needed. |
Chemical composition of steel:
Material | Chemical composition table | ||||||
C(%) | Si(%) | Mn(%) | Cr(%) | P(%) | S(%) | B | |
65Mn | 0.62-0.70 | 0.17-0.37 | 0.9-1.20 | ≤0.25 | ≤0.015 | ≤0.035 |
|
60Si2Mn | 0.56-0.64 | 1.50-2.00 | 0.69-0.90 | ≤0.35 | ≤0.035 | ≤0.035 |
|
55Si7 | 0.52-0.60 | 1.50-2.00 | 0.69-0.90 | ≤0.35 | ≤0.035 | ≤0.035 |
|
28SiMnB | 0.24-0.32 | 0.60-1.00 | 1.20-1.60 | 0.014 | 0.015 |
| 0.0005-0.0035 |
30MnCrB5 | 0.26-0.34 | ≤0.4 | 1.10-1.40 | 0.3-0.6 | ≤0.025 | ≤0.035 | 0.0008-0.005 |
SuP9 | 0.52-0.60 | 0.15-0.35 | 0.65-0.95 | 0.65-0.95 | ≤0.030 | ≤0.030 |
|
Our Products Advantage
*Long lasting quality
*These blades are available in hard faced conditions
*Available for all tiller
*The whole part has been adjusted to pass the balance test both in static and moving states
*The blade is high temperature salt holistic tempering medium temperature and hardness is HRC40 to 50
*The surface can be painted blacken
*Our heat treatment that ensures long life even in tough soil conditions
Sample , Payment Terms & Delivery
1) Sample : test the quality of our sample firstly before you purchase them in mass quantity.
2) Payment Terms : T/T, L/C, Western Union
3) Delivery Date: 20-25 working days after deposit paid
4) Shipping Way: By Sea or By express
Jiangxi Yuangeng Agricultural Machinery Co.,Ltd, which is a member of Jiangxi Yuancheng Group. Jiangxi Yuancheng Group, founded in 2002, and after more than 10 years’ rapid and stable development, it has established 8 factories and formed 6 central warehouses in Jiangxi Nanchang, Gansu Lanzhou, Hubei Xiangfan, Jilin Changchun, Tianjin, Guizhou Guiyang, and it has standed the leading position in the whole industry. Our group owns the powerful research and development team, strong technical reserve forces, and adopts the leading domestic, international first-class manufacturing equipment. And we take ‘supply the most cost-effective products’ as our instruct principle for the product and our market, and provide the timely and highest quality service. Our product are widely used in the global, and are sold to European, North and South America, Asia and Africa.
