Product Description

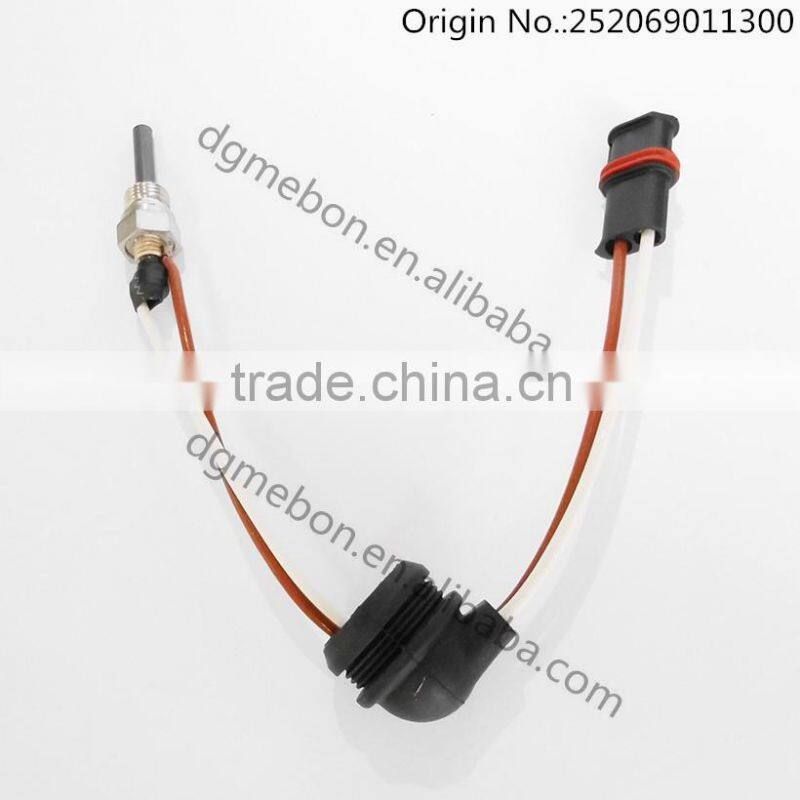

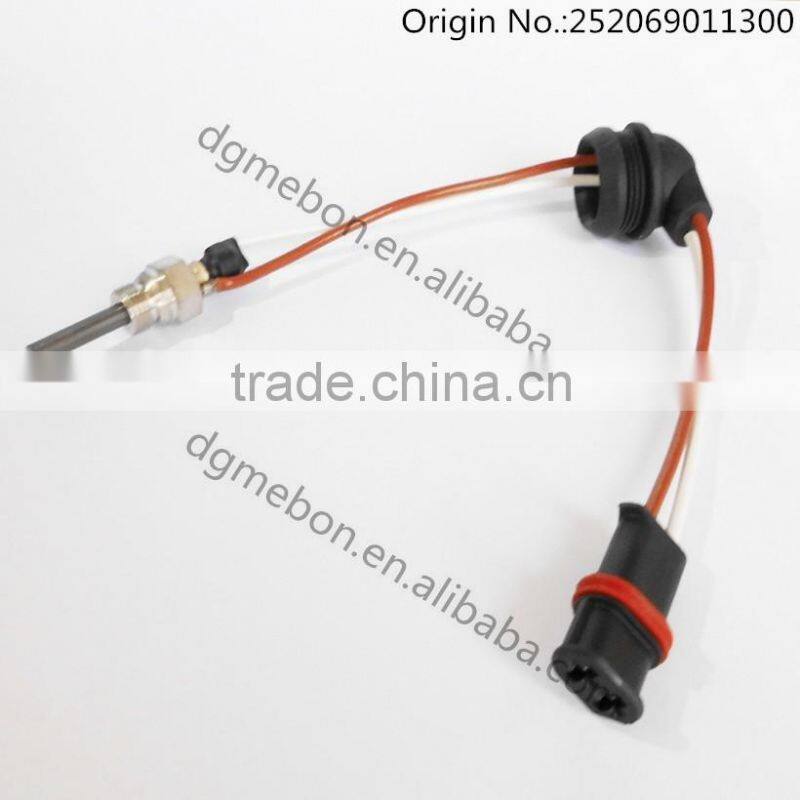

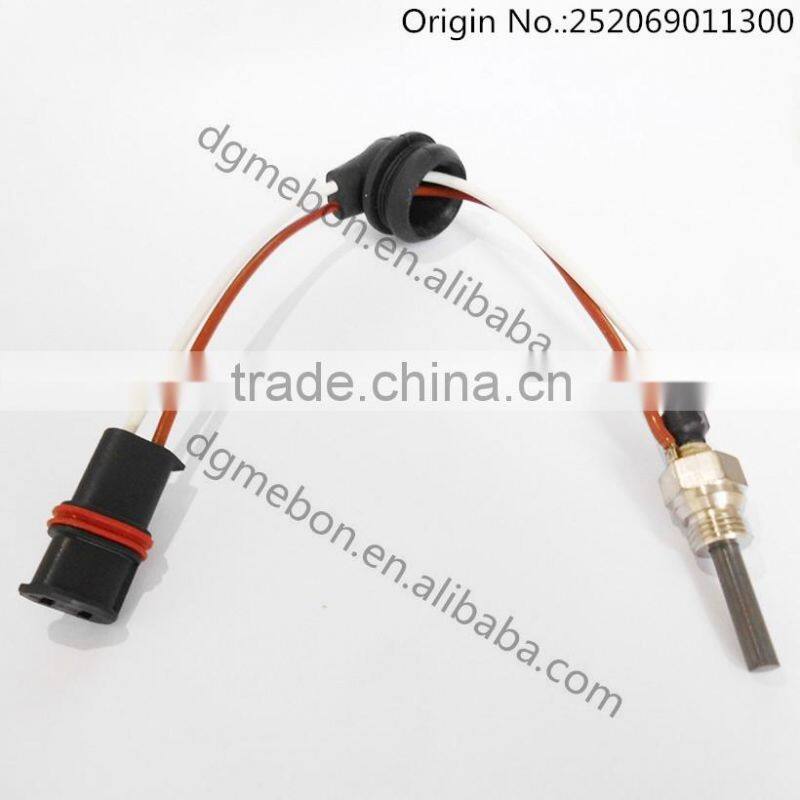

for Eberspacher Airtronic D2,D4,D4S 12V Glow Pin 252069011300

Our silicon nitride glow plugs used for Webasto & Eberspacher parking heaters and silicon nitride ceramic elcetric heating elements used in the water heater,heating faucets, thermostatic bath and the steam engine.
Diameters of glow plug candles are 3.0mm, 4.2mm, 4.5mm and Rated voltage of that are 8v,12v, 18v, 24v in total.
Rated wattage of electric heating elements is 1500w, 2500w,3000w, 3500w and rated voltage of that is 110v, 220v in total.
Customized products are available.

Specification

Product Name	8V glow pin
Material	Silicon nitride
Original Number	252069011300
Application	For Eberspacher Airtronic D2,D4,D4S 12V
Rated Voltage	8 V
Current	8~9A
Wattage	64~72w
Diameter	4.5mm
Weight	30g

1. Made of silicon nitride
2. Long service life,can be used for over 20,000 times
3. Preheat fast,only take about 10s to preheat to 850 °C
4. High temperature durability, the highest resistance is about 1200-1300 °C
5. High watt density, Good thermal efficiency
6. Low start ability, can make your vehicle start at -40 °C
7. We have one year warranty. Quality is as good as KYOCEAR, but the price are much cheaper

Advantage

1. Long service life

2. Compact, Light weight and Energy saving

3. Rapid heat increase, High temperature durability

4. High watt density, Good thermal efficiency

5. Superior chemical resistance

6. No electric noise

7. Physical manufacturing process, health, environmental protection for

the human body without radiation.

Silicon nitride ceramic glow plugs compared with metal glow plugs

Item	Si3N4 glow plug	Metal glow plug
Preheating temperature (°C)	1200~1300	800~900
Regular time of preheating (S)	10~20	20~40
Times of power on and off	20,000	240
Low temperature starting ability (°C)	-40	-5

Product show
