Fine misting nozzle,ceramic orifice fog nozzle
- 1000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Mebon | Condition: | New |
Product Description

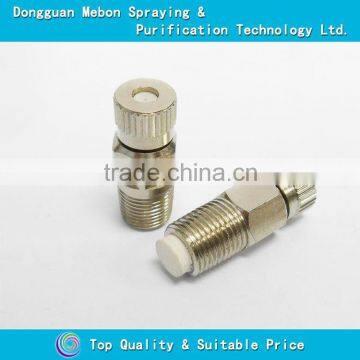

Fine misting nozzle,ceramic orifice fog nozzle
Product Description
- Metal fog spray nozzle consists of brass/SS body with internal SS/ceramic core and stainless steel guide vane (with a leak-proof device).
- The liquid flows at high velocity under the water pressure of 70kg to 120kg, forming centrifugal swirl and spraying very fine hollow droplet.
- It is equipped with TEFLON strainer and the fog droplet sizes are about 30um.
- Widely used in workshop moistening salt spray test,man-made fog and other moistening locations.
- The nozzle saves 10 times or above cost than that of moistening by air.
- Thread size: 10/24,12/24 UNC,1/8',3/16"
- Spray pattern:full cone
- Orifice: stainless steel,ceramics.
- Thread screw:BSPT or NPT.
Performance Data | |||
Fog Nozzle | Orifice Diameter | Operation Pressure | Flow Rate |
FD1 | 0.15mm | 20-70kg/cm | 20-46ml/min |
FD2 | 0.20mm | 49-89ml/min | |
FD3 | 0.30mm | 80-145ml/min | |
FD4 | 0.40mm | 95-178ml/min | |
FD5 | 0.50mm |
130-243ml/min |
Commen Application:
1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place
Product Show
Factory Equipment:
Payment & Delivery:
Why choose us?
1. Professional, 12 years experience about nozzles.
2. Various types of products. Provide professional products with more than 2,000 types.
3. Original manufacturer with direct factory price, Competitive & Professional.
4. High Standard management for quality control.
5. Small order acceptable.
6. Safe payment terms: T/T and Western Union are available.
7. Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, TNT.
8. Widely cooperats with Chinese customers and overseas.
9. Excellent Service, Smooth export procedure.
