1m 1.2m 1.5m 3m 5.5 x 2.5mm DC Connector DC Cable

Shenzhen Uniontop Electronic Co., Ltd.

US$ 0.2 - 0.4 MOQ: 6000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Type:

Other, Cable

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UT

Type Other, Cable

Packing Polybag

high selling network cables

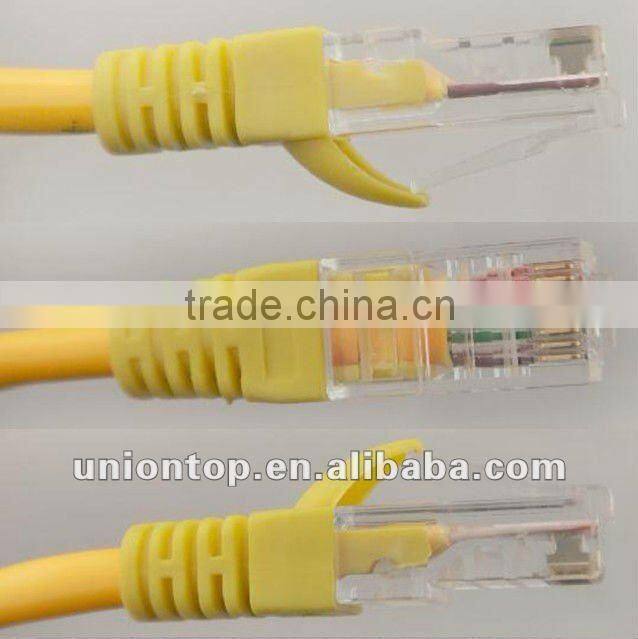

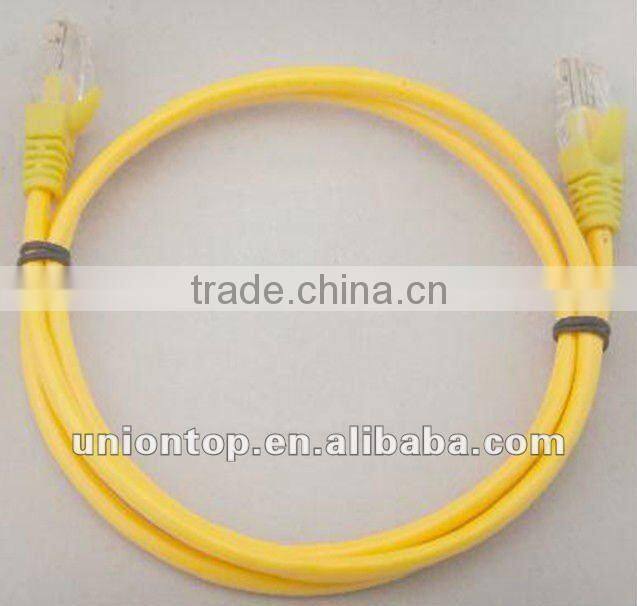

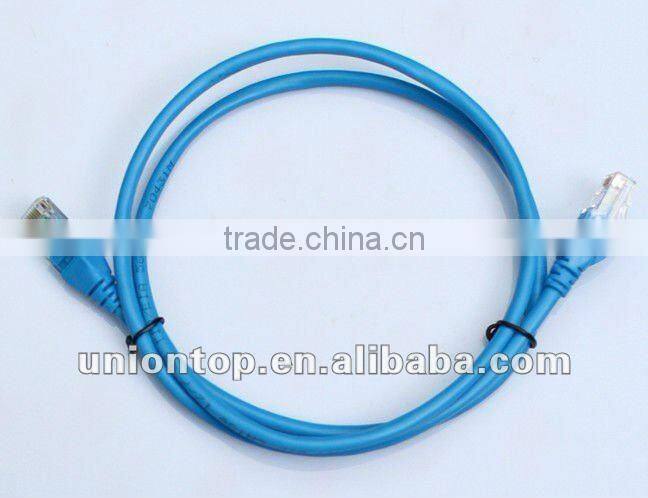

best price utp cat5e lan cable network cable Cat5e Cat6 Ethernet cable Patch Cord
Custom length
Jumper Wire

best price utp cat5e lan cable network cable

Cat5e Cat6 Ethernet cable Patch Cord
Custom length
Jumper Wire
UTP STP type

RJ45 Ethernet to USB Cable

STANDARD COMPLIANCES

All Category 5e Requirements as per ANSI/TIA, ISO/IEC, and CENELEC EN Standards:

TIA/EIA-568-C.2 Cat5e Cat6

ISO/IEC 2^nd Edition 11801 Class D

CENELEC EN 50173-1

IEC61156-6, CENELEC EN 50288-3-2 for patch cable

Flame Retardancy is verified according to IEC 60332-1-2, NEPA-262, NFPA-90A, UL-910

We Implemented ROSH compliance for the Requirement of European Union Issued Directive 2002/95/EC

CONSTRUCTION & CHARACTERISTICS

Conductor	Material/Size	Solid Bare Copper/24AWG
Insulation	Material	PE or FRHDPE
	Thickness	Nominal: 0.19 mm
	Diameter	Nominal: 0.96 mm
	Colors	Blue/White-Blue Orange/White-Orange
	Colors	Green/White-Green Brown/White/Brown
	Unaged Elongation	Min. 300%
	Unaged Tensile Strength	Min. 1.683 Kgf/mm²
Jacket	Material	FRPVC Low-Smoke or FEP, PVC
	Thickness	Nominal: 0.5 mm
	Diameter	Nominal: 5.2-6.5 mm
	Color	Assorted upon request
	Unaged Elongation	Min. 125%
	Unaged Tensile Strength	Min. 0.917 Kgf/mm²
	Aging @ 100°C for 168Hrs	Min. elongation retention:75%
	Aging @ 100°C for 168Hrs	Min. tensile strength retention: 70%
