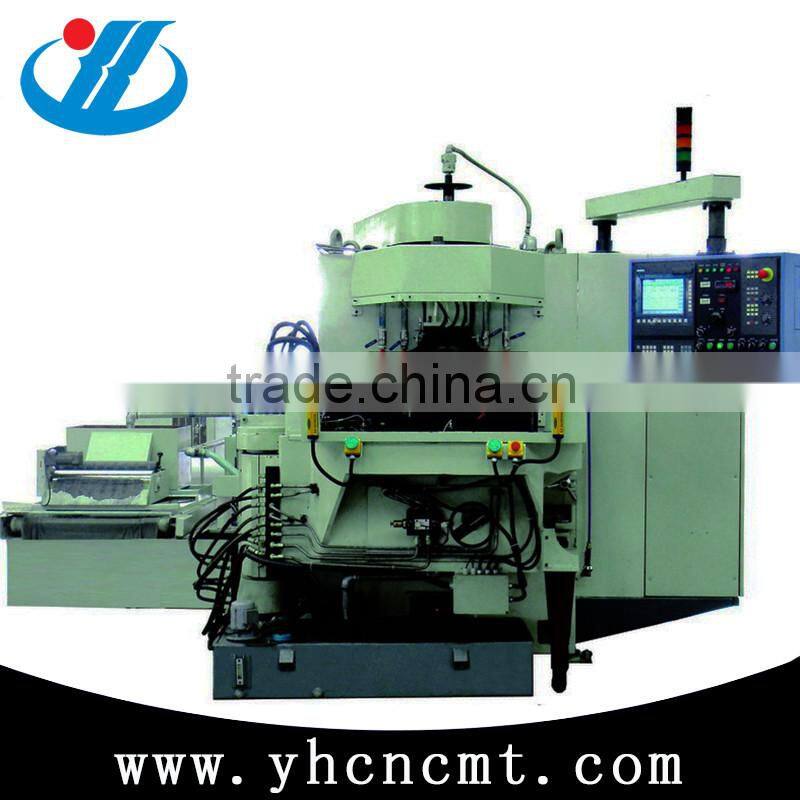

Factory direct sale vertical double disc side surface grinder
- Shenzhen Guangzhou Shanghai etc.
You May Like
-
Best selling Precision Lapping/Polishing Machine for sales
-
High efficiency polishing machine for the flat surface and 2.5D arc surface
-
Universal grinder machine in china
-
Professional CNC End Double face milling machine
-
high precision Automatic end polishing machine
-
YH2M81116 3D surface polishing machine
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 320mm | |
| Place of Origin | Hunan, China | Brand Name | YUHUAN | |
| Model Number | YHDM580C | Voltage | Requirement | |
| Power(W) | 22Kw x 2 | Dimension(L*W*H) | 2755*2980*2560 | |
| Weight | 10000kg | Certification | ISO9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
It can process and grind thin parts with parallel side surfaces like motorcycle brake disc, ring type, disk type,ect.
Technical characters
1. Adopts Siemens 802D SL CNC system, servo motor control and the display operation.
2.The machine body adopts casting boxlike structure with good shock absorption and reliable rigidity
and thermal stability; Wheel heads spindle are set by vertical configuration
3.Wheel head feed adopts precise ball screw unit(Patent No:ZL200520050915.X). Feeding scale value:
0.001 mm.
4. Wheel head spindle is driven by converter, 150-950r/min.
5.Adopt hinged feeding carrier mechanism(Patent No: ZL201020261020.1), which is easy
to open to make a convenient change and dressing of the grinding wheel.
6. Adopt grinding segment for grinding (patent number: ZL201020261024.X), to achieve
motorcycle brake grinding.
7. Feeding carrier adopts Oil motor drive , with stepless speed.
8. Filtered by magnetic and paper tape two steps, the coolant recycle after oil temperature controller.
Model Item | Unit | YHDM580C |
Diameter of parts | mm | 320 |
Thickness of parts | mm | 3.5 |
Size of grinding wheel | mm | 150×70.5×15 |
Power of wheelhead motor | Kw | 22Kw×2 |
Wheel head motor speed | rpm | 150-950 |
Feeding carrier drive speed | rpm | Oil motor drive, stepless speed |
Plainness | mm | ≤0.05 |
parallelism | mm | ≤0.02 |
Surface roughness | µm | ≤Ra1.6 |
Total Weight | Kg | 10000 |
Overall dimensions(L*W*H) | mm | 2755×2980×2560 |
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
We want to know:
How much the laser power you need
What materials do you need to process
The Cutting size and thickness
