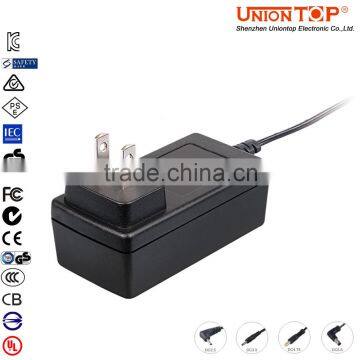

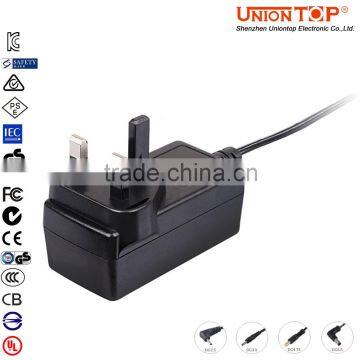

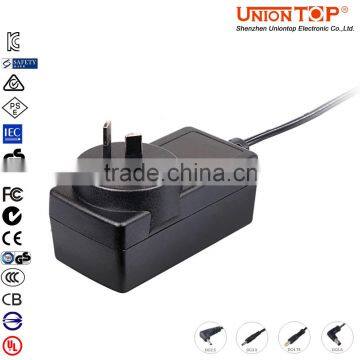

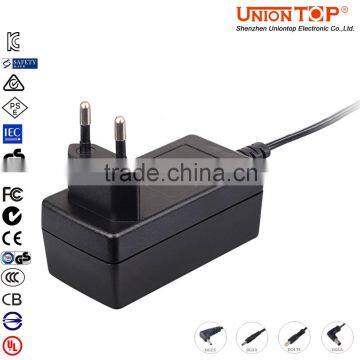

UL CB KC PSE approval 12.5V 1A AC DC power adaptor
Specification
18W interchangeable Wall-mount Power Supply
*Input : 100 to 240 VAC,0.6A
*Frequency : 47-50/60-63HZ
*Output: 5-24V,0.1-3A
*Leakage Current:0.25mA Max
*Available AC Plug:EU,US,AU,UK,Kr,etc.
Features:
1. compact size and easy to carry
2. punctual delivery& Competitive price
3.single output to15W 18W
et Safety Agency Requirements& Complies EMI/EMC
5.Modified and Customized design Available
6.1 years Warranty
7.CB/UL/cUL/PSE/BSMI/LPS certification passed
8.Wall Mount Type
Parameters:
Input: |
*Voltage: 100—240VAC *Frequency:50—60Hz *Current:1.2A Max |
Output: |
*Load Regulation: 5% Typical *Ripple: 1-2%P-P Laxford Output Voltage Full Load *Transit Response: 0.5mS for 50%Load Change Typical *Holdup Time: 10ms Full load *Protection: Short Circuit Protection/ Over Voltage Protection/Over Current Protection *DC Cord: 22AWG/20AWG |
Electrical |
*Topology: Switching fly back *Hi-Pot Withstand: 3000VAC Primary-Secondary *Leakage Current: 0.25mA@2Pin *Efficiency: Meet CEC&Energy Star *EMI Conduction Radiation: Compliance to EN55022 Class B *Harmonic Current: Compliance to EN61000-3-2,3 *EMS immunity: Compliance to EN61000-4-2,3.4,5,6,8,11 *MTBF: 50,000 Calculated Hours at 25 , by ML-HDBK-217F |
