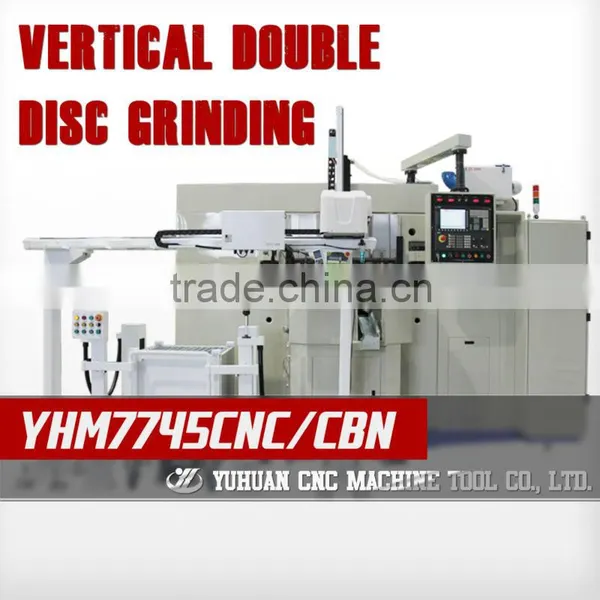

Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 120mm | |
| Max. Grinding Length | 40mm | Place of Origin | Hunan, China | |
| Brand Name | YUHUAN | Model Number | YHDM7745 | |
| Voltage | 380V 50Hz | Power(W) | 30Kw x 2 | |
| Dimension(L*W*H) | 3200*2700*2800 | Weight | 9500kg | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical characters:
1.The machine body adopts boxlike overall structure; The grinding head parts and body section work closely together with overall adjustment structural for the upper machine body; with vertical wheel head spindle .
2.Adpots Siemens CNC system withstable performance, high intelligentization and flexibility.
3.The wheel head parts adopt high precise feeding system and equipped with auxiliary worm wheel to adjust the return clearance of wheel head at any time, so that improve the feeding accuracy of the entire wheelhead , The grinding head parts are with reliable sealing and sufficient lubrication to get the guarantee of long - term precision.
4.Feeding carrier mechanism adopts AC servo motorwithStable transmission, rotational feeding (rotational speed 1-15rpm) and constant removal rate processing (that is variable speed feed processing to each workpiece),which greatly raise the quality and the efficiency of processing; Open is flexible, replacing wheel is convenience.
5.Equipped with CBN grinding wheels, High speed, high efficiency, high quality grinding
6.Marposs measurer with continuously measuring and feedback, make sure the transferring of rough grinding to fine grinding.
7.The cooling liquid can be recycled after the treatment through the magnetic scraper conveyor - vortex separator - oil cooler - pipe filters
8.Mechanical arm loading and unloading, high automation.
9.Diamond roller wheel of the dresser unit.
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
