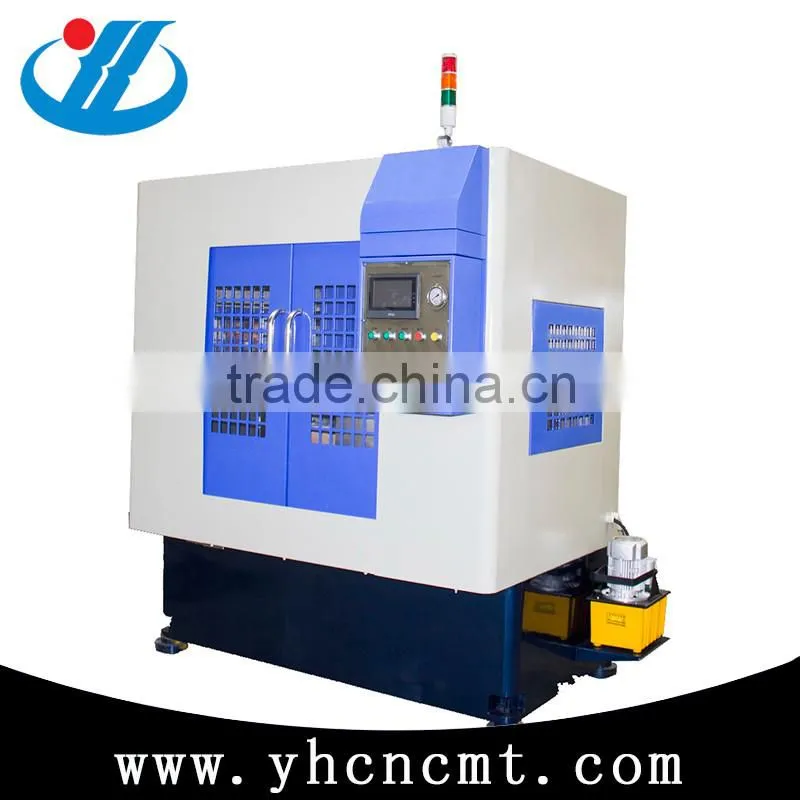

Help CenterCylindrical Grinding Machine Price / Cylindrical Grinder
Related Products
-
Automatic End Milling Machine / Low Cost CNC Milling MachineUS$ 75,000 - 160,000MOQ: 1 Set -
Automatic Universal Grinding Machine End Mill Machine For SaleUS$ 45,000 - 1,000,000MOQ: 1 Set
-
High Precision End Mill Grinding Machine With ProfessionalUS$ 53,000 - 120,000MOQ: 1 Set
-
Automatic End Mill Grinding Machine Made in ChinaUS$ 27,000 - 70,000MOQ: 1 Set
-
High Quality Surface Grinding Machine for Metal Milling MachineUS$ 35,000 - 60,000MOQ: 1 Set
It’s used for polishing multi-surface non-metal and brittle material, such as the perimeter sides of OGS glass, sapphire, etc.
1. Polishing the perimeter sides of a stack of thin workpiece at the same time
2. Polish the workpieces with interpolation motion by 2 polishing head at the same time,driven by servo motor and lead screw, stable amount of polishing compression, high polishing efficiency
3. Vertical motion of polishing heads, driven by lead screw lift and linear guideway to make polishing smooth, no trace.
4. Spray system of polishing liquid, supplied by sand pump, spray to workpiece uniformly from polishing heads inside
5. Polishing pad or bristle of polishing heads, to make sure ideal polishing effect
6. The machine at work through the editing processing procedure on HMI, and then downloaded to the PLC, PLC will be run by the current downloaded program
7. PLC controlling, which it is flexible and reliable
8. Touch screen, it is convenient to show alert information and real situation. Besides, the interface is friendly and the information is huge.
9. 24VDC of control components, PLC is supplied by isolation transformer, external electric wave interference is lowered, and the safety of the machine is greatly raised.
Main technical perameters
Item |
Unit |
spec |
Polishing head size (OD * H) |
mm |
290*235 |
Max size of workpiece |
mm |
45-150(Perimeter) |
Max thickness of workpiece(s) clamped |
mm |
180 |
Rotational speed of polishing head |
rpm |
10-600 |
Rotational speed of workpiece |
rpm |
0.5-3 |
Lift speed of polishing head |
mm/min |
5-350 |
Motor for polishing head |
|
Power 1.5kw Rated speed 1400rpm |
Motor for workpiece rotation |
|
Power 1kw Rated speed 2000rpm |
Motor for lifting polishing head |
|
Power 1.1Kw Rated speed1400rpm |
Motor for moving polishing head |
|
Power 1kw Rated speed 2000rpm |
Qty of polishing head |
piece |
2 |
Total weight |
kg |
2500 |
Overall dimensions (L*W*H) |
mm |
1800×1250×2150 |
Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
The R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student , get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Our products are widely used in automotive, IT electronic, military, and aerospace, shipbuilding, bearings,seals, household appliances, and other key areas of national economy.
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
3. We will offer free the training for machine’s management ,operation , maintenance to user’s related people.
