concrete foam generator concrete foam generator machine for fire

Name: concrete foam generator concrete foam generator machine for fire
Brand: MINSHAN
Availability: InStock

FOB Price

US$ 65 - 100 / Unit

10 Units(Min. Order)

Port XIAMEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	MINSHAN
Model Number	MSFS-067

Product Description

Banner

Product Description

Foam generator with ISO, CCC Certificates

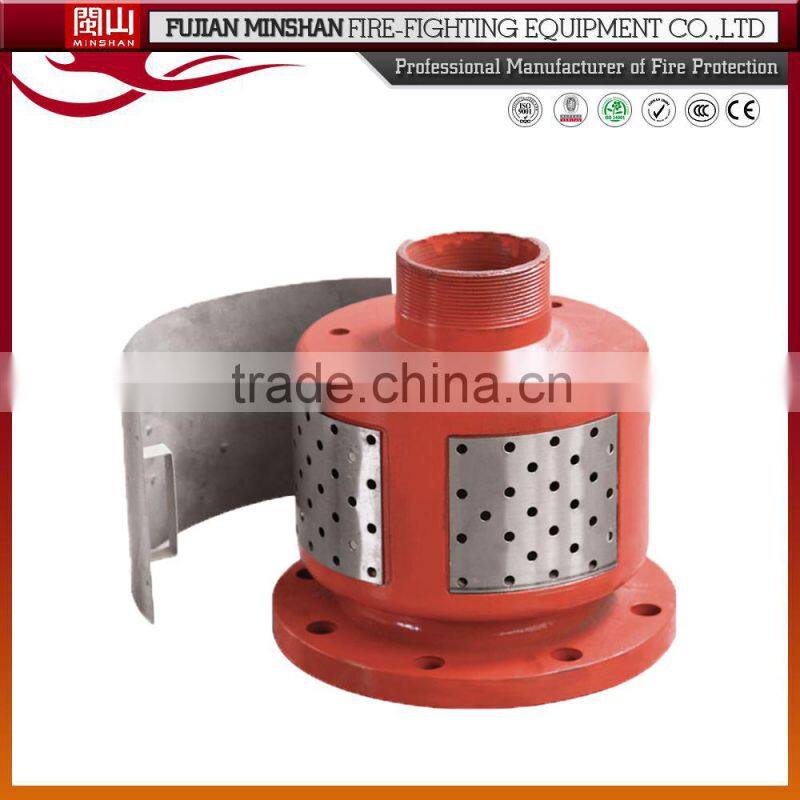

Concrete Foam Generator Concrete Foam Generator Machine for Fire

1.Brief information

Designed as air aspirating discharge devices, foam generator is used principally for the protection of dikes, open floating-roof storage tanks, and rim seals, where low-velocity foam streams are desired. Foam generator generally is installed in the line of a semi-fixed or fixed foam fire-protection system, mounted either horizontally or vertically.

Foam generator's feature of all-brass construction is for using in harsh and corrosive environments. Foam generator air inlets is covered with stainless mesh, and supplied with standard NPT threaded inlets and outlets.

Minshan foam generator is horizontally fixed at the top of the tank wall, and it's a foam extinguishing equipment producing and jetting air. Foam fire truck or a fixed fire pump supply the mixture flow through the pipeline throught the bubble generator, and format the air bubble to put out oil fire. Foam generator is mainly composed of air bubble generator body, foam nozzle and guide group. When foam mixture liquid throught the foam generator nozzle, atomizing jet diffussion and produce negative pressure in its surrounding thus inhalation air to create foam, the foam liquid flow directly to the surfance of fire through guide group, cover the surface of liquid using bubble cooling to put out the fire.

2.Technical parameters

Size	Working pressure Mpa	Rate flow mixture liquid(L/S)	Foam expansion	Flow series (k)	Inlet flange	Outlet flange	Height (mm)
PCL4	0.3-0.6	4	≥5	107	50	65	155
PCL8		8	≥5	215	65	80	160
PCL16		16	≥5	429	100	125	185
PCL24		24	≥5	644	125	150	200

Product Image
