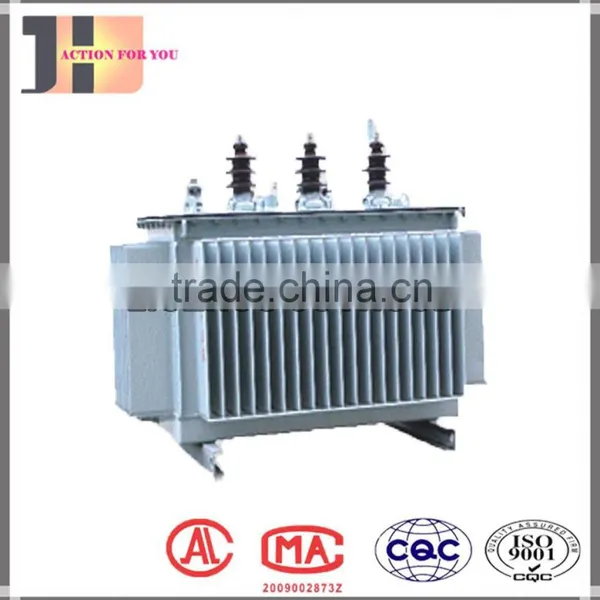

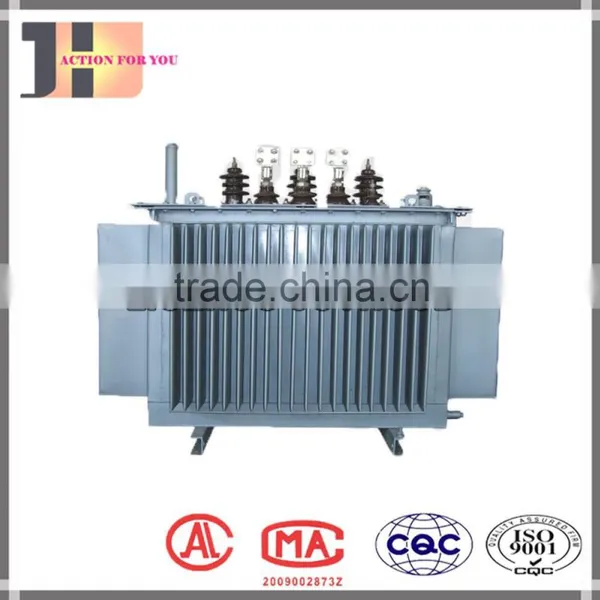

10 KV S(B)15 Amorphous Alloy Oil Immersed Distribution Transformer
- Fangcheng Port Guangzhou Port Shanghai Port
- T/T Money Gram Credit Card
You May Like
Product Details
| Brand Name | JOYHOOD | Model Number | 10KV S(B)H15 oil immersed distribution transformer | |
| Usage | Power | Phase | Three | |
| Coil Structure | Toroidal | Coil Number | Other, 2 |
Product Description
Amorphous alloy is a kind of new energy-saving materials. 10 KV S(B)15 amorphous alloy oil immersed distribution transformer core adopts imported amorphous alloy strip. It is more conducive to magnetization and demagnetization. Thus greatly reduce the no-load loss of transformer. It is applied to oil immersed transformer can reduce emissions of harmful gas. Such as Co2, So2, NOX and so on.
| Model | Nominal Capacity KVA | No-load losses W | load losses W | No-load current % | Impedance % | Outside Dimension | Mounting Base | Weight | ||
| L | B | H | Center mm MxN | Kg | ||||||
| S(B)H15-30/10 | 30 | 33 | 600 | 1.7 | 950 | 530 | 895 | 400x550 | 470 | |
| S(B)H15-50/10 | 50 | 43 | 870 | 1.3 | 1010 | 550 | 950 | 400x550 | 580 | |
| S(B)H15-63/10 | 63 | 50 | 1040 | 1.2 | 10701 | 550 | 955 | 400x550 | 640 | |
| S(B)H15-80/10 | 80 | 60 | 1250 | 1.1 | 1130 | 550 | 960 | 400x550 | 680 | |
| S(B)H15-100/10 | 100 | 75 | 1500 | 1 | 1200 | 570 | 960 | 550x660 | 800 | |
| S(B)H15-125/10 | 125 | 85 | 1800 | 0.9 | 1260 | 610 | 1010 | 550x660 | 900 | |
| S(B)H15-160/10 | 160 | 100 | 2200 | 0.7 | 4 | 1270 | 670 | 1090 | 550x660 | 1025 |
| S(B)H15-200/10 | 200 | 120 | 2600 | 0.7 | 1360 | 730 | 1100 | 550x660 | 1175 | |
| S(B)H15-250/10 | 250 | 140 | 3050 | 0.7 | 1460 | 790 | 1130 | 660x820 | 1360 | |
| S(B)H15-315/10 | 315 | 170 | 3650 | 0.5 | 860 | 1180 | 660x820 | 1550 | ||
| 1570 | ||||||||||
| S(B)H15-400/10 | 400 | 200 | 4300 | 0.5 | 1750 | 880 | 1240 | 660x820 | 1780 | |
| S(B)H15-500/10 | 500 | 240 | 5150 | 0.5 | 1800 | 900 | 1290 | 660x820 | 2170 | |
| S(B)H15-630/10 | 630 | 320 | 6200 | 0.3 | 1900 | 1060 | 1300 | 820x1070 | 2530 | |
| S(B)H15-800/10 | 800 | 380 | 7500 | 0.3 | 2020 | 1170 | 1320 | 820x1070 | 2980 | |
| S(B)H15-1000/10 | 1000 | 450 | 10300 | 0.3 | 2110 | 1250 | 1420 | 820x1070 | 3370 | |
| S(B)H15-1250/10 | 1250 | 530 | 12000 | 0.2 | 4.5 | 2200 | 1320 | 1460 | 820x1070 | 3950 |
| S(B)H15-16000/10 | 1600 | 630 | 14500 | 0.2 | 2260 | 1440 | 1500 | 820x1070 | 4750 | |
| S(B)H15-2000/10 | 2000 | 750 | 17400 | 0.2 | 5 | 2380 | 1640 | 1540 | 820x1070 | 5565 |
| S(B)H15-2500/10 | 2500 | 900 | 20200 | 0.2 | 2420 | 1660 | 1590 | 820x1070 | 6680 | |
Features | Performance |
Core of transformer are made by imported
| Reducing the no-load losses |
Iron Core of transformer apply clamping structure and backing device | Reducing iron core mechanical stress and noisy. |
The low voltage winding of transformer with the capacity above 315Kva apply foil structure | Enhance the strength of the transformer when short circuit happen |
Dyn11 connection type | Reducing the impact of harmonic wave, improving power supply quality |
Corrugate tank structure used in the transformer design for below 500KVA, the transformer with capacity above 630 KVA apply Chip heat dissipation structure | beautifully-designed |
Our Office Show
Our Workshop Show
Main Testing Equipment
1. We will offer site technical service according user’s requirements. Guide the user installation,
commissioning and trial operation accordance with technical information and drawings.
2. We will offer the training of equipment installation, commissioning and maintenance technology
for user according to the contract.
3. Replacement of spare parts, wearing parts for free during guarantee period.
4. Actively cooperate with the user to examination of hanging the core, installation, commissioning
and trial operation. Make sure to put product into operation.
5. We offer 24 hrs customer consulting service.
6. For customer on-site service application, we will give answer within 24hrs, and try our best to
arrange the technical worker get to the site as soon as possible.
1.Our headquarter Guangxi Liuzhou special transformer technology Co.,Ld founded in 2001, 13 years of experience in
transformer manufacturing
2. 1).We have a rich theoretical and practical experience of product research and development team can help you. One stop
service from design to installation and debugging.
2). ISO9001,GB/T19001, CTQC, CCC
3.Our products cover electric furnace transformer, rectifier transformer, dry type transformer, pre-installed type (combination)
transformer, etc. Voltage class cover 10-220Kv. single transformer’s capacity can reach to 240000kva.
4.OEM/ODM
5.Factory covers an area of 54000m3, more than 300 employees,
6.Prompt Reply Within 24 Hours
