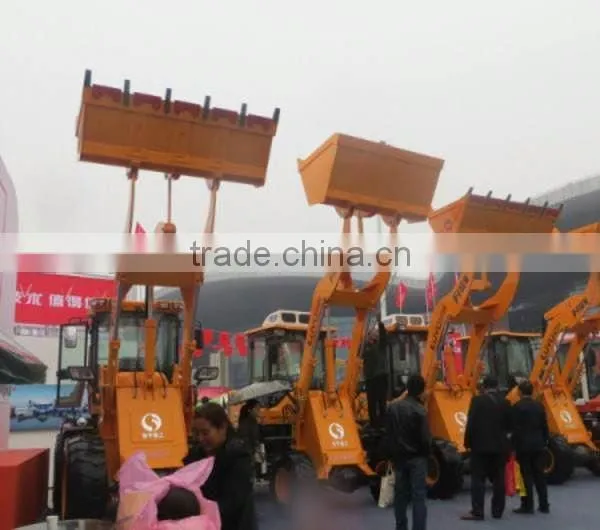

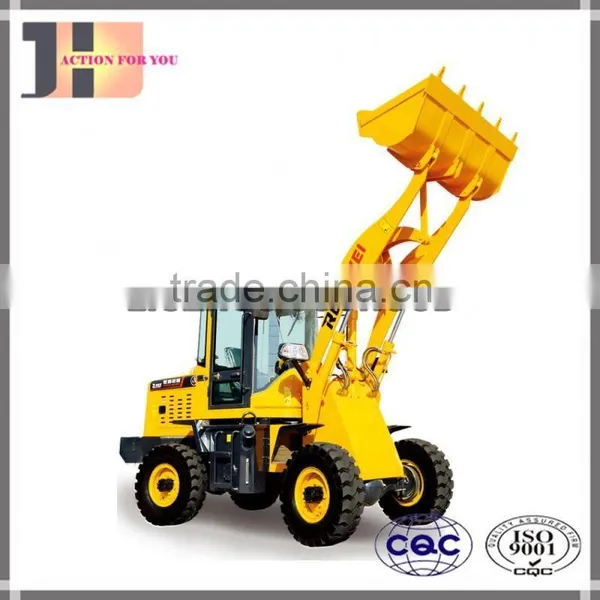

high configuration mini front end loader for sale
Negotiable
/ Unit
1 Unit(Min.Order)
- 2000 Unit / Units per Month
- Qindao Port Tianjin Port Dalian Port Shanghai Port
You May Like
Product Details
| Condition | New | Brand Name | RONG WEI | |
| Model Number | ZL915F | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 1500*1600*2600 | Rated Load | 1200kg | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
high configuration mini front end loader for sale SPECIFICATION
| Model | ZL915F | ZL916F | ZL918F | ZL920F | ZL926FZ | ZL928AZ | ZL930AZ |
Loading weight(kg) | 1200 | 1500 | 1600 | 1800 | 2000 | 2000 | 2200 |
| Overall Size(L*W*H mm) | 5100*1600*2600 | 5200*1600*2600 | 5200*1600*2600 | 5300*1800*2700 | 5300*1800*2700 | 5850*1950*2850 | 5850*1950*2850 |
| Bucket Capacity(m3) | 0.5 | 0.75 | 0.75 | 0.9 | 1 | 1.2 | 1.3 |
| Wheel Base(mm) | 2075 | 2075 | 2075 | 2230 | 2230 | 2630 | 2630 |
| Wheel Track(mm) | 1310 | 1310 | 1310 | 1310 | 1520 | 1585 | 1585 |
| Minimum Ground Clearance(mm) | 250 | 250 | 250 | 250 | 250 | 325 | 325 |
| Kerb weight(kg) | 2700 | 2800 | 2800 | 3300 | 3700 | 4700 | 4700 |
| Dump Height(mm) | 2850 | 2850 | 2850 | 3200 | 3250 | 3200 | 3200 |
| Rate Power(kw) | 30 | 32 | 40 | 39 | 65 | 70 | 63 |
| Axle | Heavy-duty ISUZU Axle | Heavy-duty ISUZU Axle | Heavy-duty ISUZU Axle | Heavy-duty ISUZU Axle | Small Hub Reductor Axle | Big Hub Reductor Axle | Big Hub Reductor Axle |
Brake systerm | Oil Brake | Oil Brake | Oil Brake | Oil Brake | Oil Brake | Oil Brake | Oil Brake |
| Gear Box | Five axis mechanical transmission | Five axis mechanical transmission | Five axis mechanical transmission | 265 Connected converter | 280 Connected converter | 280 Connected converter | 280 Connected converter |
| Tyre | 900-16 | 900-16 | 14/90-16 | 20.5-16 | 20.5-16 | 16/70-20 | 16/70-20 |
