Home > Security & Protection > Fire Control > Other Fire Control Equipment > Concealed Fire Sprinkler Heads Design of Fire Fighting System

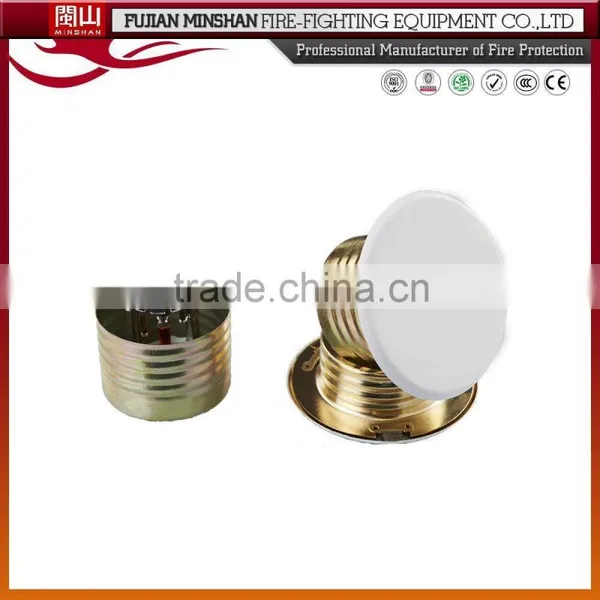

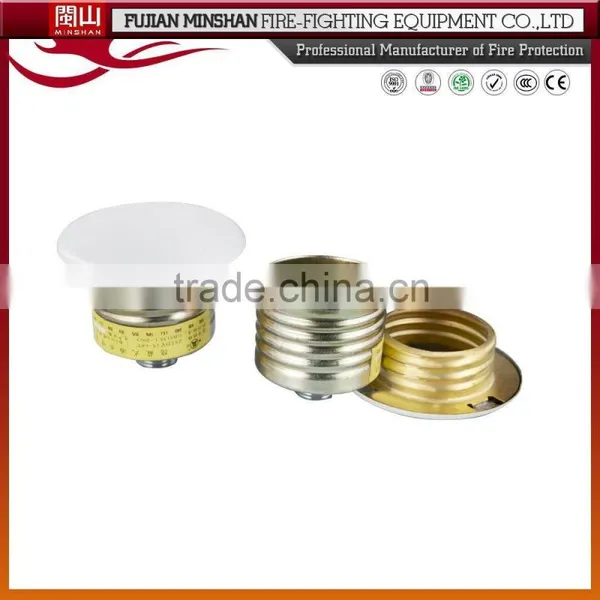

Concealed Fire Sprinkler Heads Design of Fire Fighting System
US$ 0.5 - 1.5
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Min Shan
Model Number:
ZSTDY
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brass ESFR Fire Fighting Sprinkler of Fire Sprinkler SystemUS$ 0.5 - 1.5MOQ: 2000 Pieces -
ESFR Fire Sprinkler Pipe for Fire FightingUS$ 0.5 - 1.5MOQ: 2000 Pieces
-
Water Fire Sprinkler of ESFR Fire Sprinkler SystemUS$ 0.5 - 1.5MOQ: 2000 Pieces
-
Concealed Heat Detector for Fire Fighting UseUS$ 0.5 - 1.5MOQ: 2000 Pieces
-
High Quality Sidewall Fire Sprinkler PriceUS$ 0.5 - 1.5MOQ: 2000 Pieces
Place of Origin
Fujian, China
Brand Name
Min Shan
Model Number
ZSTDY
Banner
Product Description
Concealed Fire Sprinkler with ISO, CCC Certificates
1. Widely use in office, school, kitchen and warehouse;
2. Work by temperature sensitive;
3. Vairous types to choose;
4. Easy install and use.
| Characteristics and Functions | |
| Model | ZSTDY |
| Material | Brass, chrome plating |
| Type | concealed fire sprinkler heads of fire fighting system |
| Norminal diameter(mm) | 15DN or 20DN |
| Connecting thread | R1/2 or R3/4 |
| Glass bulb color | Red |
| Temperature rating | 68°C |
| Flow Rate | 80±4 or 115±6 |
| Bulb | 3mm or 5mm |
| Response | Standard or quick response |
| Basic Parameters of Fire Sprinkler | ||||
| Model | Norminal Diameter | Thread | Flow Rate | Style |
| T-ZSTP | DN15 | R1/2 | 80±4 | Upright/Pendent |
| DN20 | R3/4 | 115±6 | ||
| T-ZSTX | DN15 | R1/2 | 80±4 | Pendent |
| DN20 | R3/4 | 115±6 | ||
| T-ZSTZ | DN15 | R1/2 | 80±4 | Upright |
| DN20 | R3/4 | 115±6 | ||
| T-ZSTBS | DN15 | R1/2 | 80±4 | Horizontal Sidewall |
| DN20 | R3/4 | 115±6 | ||
| ZSTDY | DN15 | R1/2 | 80±4 | Pendent |
| DN20 | R3/4 | 115±6 | ||
| Nozzle Rated Temp | Max Ambient Temp | Glass Ball Color |
| 57°C | 27°C | Orange |
| 68°C | 38°C | Red |
| 79°C | 49°C | Yellow |
| 93°C | 63°C | Green |
| 141°C | 111°C | Blue |
| 182°C | 152°C | Purple |
Product Image
Hot selling products
|
|
|
|
|
Factory View
Our Services
Primary Competitive Advantages:
1. Our company has several years's experience in producing all kind of forged brass ball valve and fittings , we have the self-operated importing and exporting rights .
2.Our products are approved by ACS ,CE ,ISO9001/14001 approved .
3.We can produce the fire fighting products according to our customer's requirement, and if the order is large , we don't charge any mould fee .
4. We insist to popularize our brand"Minshan" to our customers , and welcome to become our sales agency , We'll give our customer the special prices once the customer become our approved agency .
Outstanding Service:
Fast feedback: we promise to reply your inquiry within 24hours
Positive cooperation with your esteemed company
Good suggestions to your choice if necessary with our own rich experience
OEM accepted
Your visited to factory welcomed!
FAQ
Q: Are you a factory or trading company?
We are factory specialized on fire fighting equipment.
Q: Can I get a sample?
For certainly, please contact us for detail.
Q: What's the terms of the payment?
T/T, L/C, Western Union, MoneyGram, etc.
