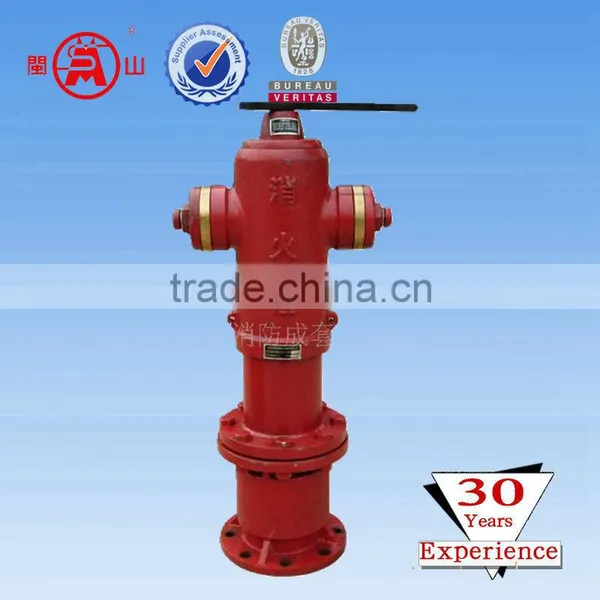

Pressure Regulating and Quick Start-up Type Fire Hydrant

Name: Pressure Regulating and Quick Start-up Type Fire Hydrant
Brand: Minshan
SKU: 129116511
Availability: InStock

US$ 12 - 30 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Minshan

Model Number:

SS100/65/80-1.6

Fujian Minshan Fire-Fighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Minshan

Model Number SS100/65/80-1.6

Specifications

1.Material:Ductile iron/coppper
2.Outlet: 65 or 80mm
3.Inlet:100mm
4.Work pressure:PN10/16
5.Breakable fire hydrant outdoor

1.Description

Breakable Landing Fire Hydrant

1) Size: DN80, DN100.

2) Work pressure: PN16.

3) Material: ductile iron, cast iron

4) Color: blue color,black color,red color,gray color,etc.

2. Specifications

Name	Model	Type	Parameters	Raw Material	Image
Post fire hydrant	SS100/65-1.6	Freeze-proof and thicken type	Height:1410mm;Weight:82KG	Body:HT200(corrosion prevention)
Post fire hydrant	SS150/80-1.6	Freeze-proof and thicken type	Height:153mm;Weight:165KG	Valve rod:cast steel;Nut:Copper
Quick pressure regulating fire hydrant	SSKT100/65-1.6	Pressure regulating and quick start-up type	Height:1650mm;Weight:99KG	Regulator device:high pressure polyethylene
Quick pressure regulating fire hydrant	SSKT150/80-1.6	Pressure regulating and quick start-up type	Height:1779mm;Weight:193KG	Regulator device:high pressure polyethylene
Breakable fire hydrant	SSF100/65-1.6	Breakable and quick start-up type	Height:1678mm;Weight:110KG	Anti-collision Device:crake plate ,ball-milling(QT500)
Breakable fire hydrant	SSF150/80-1.6	Breakable and quick start-up type	Height:1802mm;Weight:208KG	Anti-collision Device:crake plate ,ball-milling(QT500)

Note:

All above hydrant are auto-discharge and quick start-up type. (Freeze-proof patents)

DN100mm fire hydrant: According to different frost-proof course in areas, this size can increase a tube (X grade 250mm length, weight 12.4KG) for freeze-proof regulator. Weight of elbow:17.3KG.
DN150mm fire hydrant: According to different frost-proof course in areas, this size can increase a tube (X grade 250mm length, weight 27.5KG) for freeze-proof regulator. Weight of elbow: 35.5KG.

3. Sample shows

4.Drawings

5.Factory Process

6.Packings

7.Our Company
