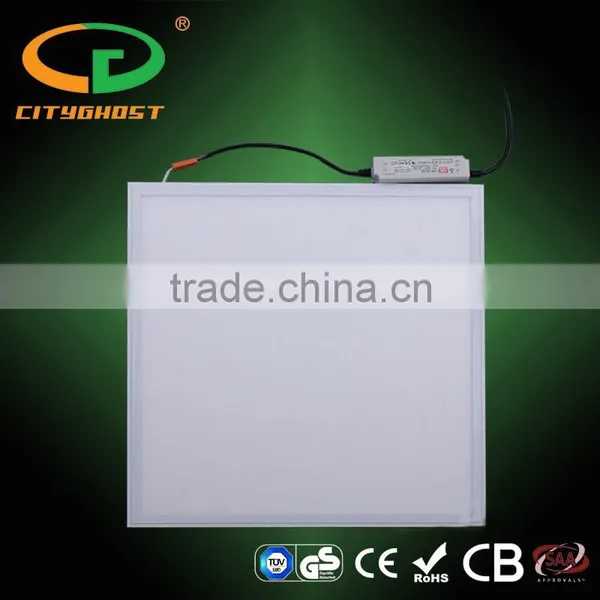

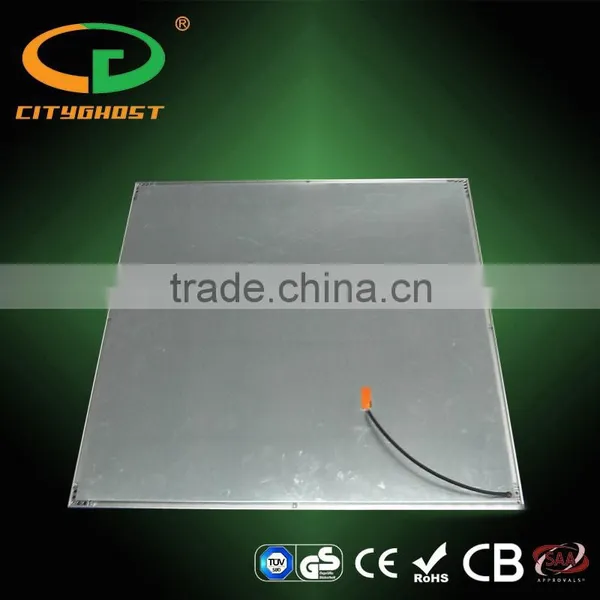

630w power dimmer 9mm super thin super energy saving triac dimming led panel light 600x600mm 36w
Specification & Parameter:
| Item Type: | Triac Dimming LED Panel Light |
| Item No.: | P66-36K |
| Size(mm): | 595*595*9mm |
| LED Type: | 0.2W SMD4014 |
| LED QTY: | 180 pcs |
| Input voltage(V) | AC 100-240V |
| Power consumption: | 36W, can be optional |
| Luminous: | 3240lm |
| Light Luminous Efficiency: | 90lm/w |
| Working Temperature: | -20c---+40c |
| Storage Temperature: | -40c---+85c |
| IP Rating: | IP44 |
| CRI : | Ra>80 |
| CCT: | 3000K/4000K/5000K/6000K |
| Beam angle | 120° |
| Light Body Material: | Aluminum Alloy |
| Working Lifetime: | 50000 Hours |
| Certification: | CE,RoHS |
| Warranty: | 3 years |
Why Cityghost ?
(Independent R&D)1. Design all the products by our self, had got 15 patents. The two patented products ( Frameless led panel light and Invisible led panel light) are on hot selling. We keep developing new items all the time.
(Product Performance)2. High luminous efficacy, the luminous flux have a 3% higher than the ordinary supplier here in Shenzhen city. Passed the 850℃ glow-wire flammability test.
(Factory Inspection) Qualified inspection by the “TUV Rheinland” & “TUV-SUD” agency in Germany.
(Certificate)4. Had got the “TUV-SUD” authorized CE(EMC+LVD), GS, CB, SAA certificates, UL certificate is in the plan.
(Honor)5.Win the title for “ Outstanding Supplier Of GuangDong Province”, “ National Hi-tech Manufacture Enterprise” , and etc.
Culture Of Enterprise
1.Mission: Provide safe and reliable products to serve the community
2.Vision: Becoming a global manufacturer in lighting industry
3.Business Model: ODM, OEM
Our Service
1.Own an independent import & export rights which facilitate a convenient foreign trade.
2.OEM&ODM accepted
3.High efficient production ability, professional & humanized
“one-stop” after-sales service.
Our Team
1.Young, experienced and passionate team.
2. We insist holding the working philosophy “ Innovation. Commitment. Partnership! ”
Our Factory:
Q:Why are you choosing cityghost?
A:There are four reasons ,for confidence guarantee ,quality guarantee ,patent guarantee and certificated guarantee . Cityghost has specialized in led panel light for 5 years ,all the products employ fireproof materials ,and pass 850°C glow-wire flammability test .Technology innovations and utility patents to avoid patent disputes .TUV and BV certified manufacturer from Shenzhen , china.
Q: What is the type of your LED resources?
A: Our LED is 3014 for round panel,4014 for square panel and 5050 for RGB.Different color termperature for your option,3000k,40000k,5000k,6000k . The CRI is more than 80, and beam angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.
Q: What is the material of your LGP?
A: Our LGP is PMMA , and the thickness is 4mm ,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
A: Our Aluminum back is 6063, and the thickness is 0.6mm.We use PC diffuser , and the thickness is 1.5mm.
Q: What are your available sizes?
A: We have many sizes such as
Diameter 134mm,163mm, 180mm,220mm,240mm,300mm;
square 195mm,295mm,595mm,620mm;
Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
All the sizes are our standard sizes.And if you needed , we supply customization service to some extent.
Q: what is your available wattage?
A:7w,8w,9W,10w,12W,15W,16w,18W,24W,30W,32w,36W,48W,60W,72W,90w.
Q: Do you have dimmable panel lights?
A: Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light, 0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.
Q: Does it easy to install and use?
A: Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual. There will be a manual in each led panel light box when you buy it. Look it carefully and install it step by step according to the instructions.
Q: How is your warranty and how to apply?
A: We offer 3 years warranty for all the products. When light or driver meets problems, we request our customer to send us pictures or videos for our analysis, and we send the customer a new product, with this we all save time and money in freight to send back the goods.
Q: Do you accept OEM packing?
A: Yes, we accept OEM packing even if you just want 1 piece of panel light.
