Specifications
high lumen led panel light housingCertificate TUV CE RoHS
3 years warranty
ultra-thin 19mm
High light efficiency 85Lm

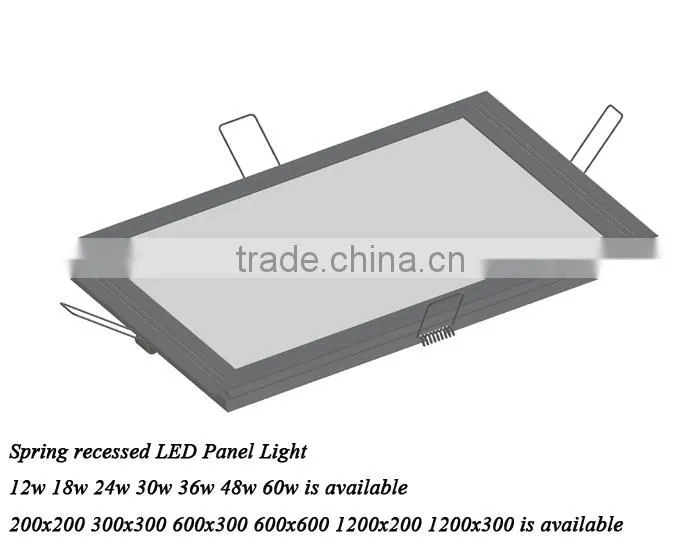

§ Easy install 24watt 602x602mm 2x2 led recessed panel light warm white
Specification:
| Model | M66-24A | M66-30A | M66-36A | M66-48A | M66-60A |
| Dimensions | 602x602x19mm | ||||
| Cut out |
585x585mm |
||||
| lighting source | SMD 4014 LED | ||||
| LED QTY | 90pcs | 120pcs | 150pcs | 240pcs | 300pcs |
| Power consumption | 18W | 24W | 30W | 48W | 60W |
| Input voltage | 100-265V 175-265V AC/50-60HZ | ||||
| Efficiency | ≥90% | ||||
| PF | ≥0.9 | ||||
| Input voltage | 20-30V | 34-36V | 32-42V | 32-42v | 32-42v |
| Constant current | 0.84A | 0.84A | 0.84A | 1.15A | 1.15A |
| Operation temperature | -40~+50 | ||||
| CCT | 3000K,4000K,5000K,6000K | ||||
| Luminous | 2112lm | 2640lm | 3240lm | 4320lm | 5400lm |
| light efficiency | 88lm/w | 88lm/w | 90lm/w | 90lm/w | 90lm/w |
| CRI | RA≥80 | ||||
| Beam angle | 120° | ||||
| Temperature rising | <20°C | ||||
| Ingress protection | IP44 | ||||
| Certificate | CE, RoHS | ||||
Installations:
Size of inner carton:67*62*3.5CM Size of master carton:68.5*63.5*20CM
G.W of inner carton:5.8KG G.W of master carton:30KG
Packing quantity:5PCS/mater carton
Why Cityghost?
Company Profile Shenzhen Cityghost Technology limited was founded in 2008. We devote ourselves to researching, developing and promoting premier LED lighting products, aim at building outstanding national brand and try best to contribute society.
Our company specializes in developing, producing and selling LED lighting products. With outstanding engineers team, advanced testing equipments, sufficient designing and manufacturing experience, we are able to produce best quality LED lighting products. Our main products are LED panel lights and LED down lights, which are widely applied in office building, shopping mall, factory, hotel, hospital, school and residential house and other indoor places. Our company passed the audit of TÜV Rheinland and Bureau Veritas and certified to be compliant with the GMC Guangdong Standards. So far, our products are certified by CE(EMC/LVD) , RoHS standard and passed IEC60695-2-12 850°C glow wire test, especially our invisible panel light and frameless panel light are our patented products. Our products are sold popularly all over the world and our main market is Europe and North America. It is our business philosophy that is to create biggest value for customers. Our products and service enjoy a long-term recognition from customers. Cityghost has become the symbol of top level LED lighting product.
Showroom:
On fair:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area, ideas of design and all your private information.
Q: Why are you choosing Cityghost?
There are four reasons, for confidence guarantee, quality guarantee, patent guarantee and
certifcated guarantee. Cityghost has specialized in led panel light for 5 years, all the products
employ fireproof materials, and pass 850C glowwire flammability test. Technology innovations
and utility patents to avoid patent disputes. TUV and BV certified manufacturer from Shenzhen, China.
Q: What are your available sizes?
We have many sizes such as:
Diameter 134mm,163mm, 180mm, 220mm, 240mm, 300mm;
square 195mm, 295mm, 595mm, 620mm;
Rectangle: 595x295mm, 1195x195mm, 1195x295mm, 1195x595mm;
All the sizes are our standard sizes. And if you needed, we supply customization service to some extent.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel, 4014 for square panel and 5050 for RGB. Different color
termperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.
Q: What is the material of your LGP?
Our LGP is PMMA, and the thickness is 4mm,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm. We use PC diffuser, and the thickness is 1.5mm.
Q: what is your available wattage?
7w, 8w, 9W, 10w, 12W, 15W, 16w, 18W, 24W, 30W, 32w, 36W, 48W, 60W, 72W, 90w.
