§ 300x300MM Warm White 18W LED Panel Lamps with TUV CE SAA Approved
Specifications:
Model |
M33-18AU |

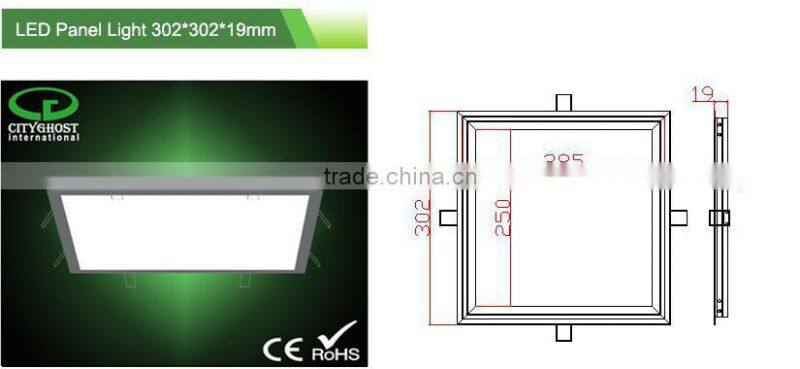

Dimension |
302X302mm |
Net Weight (with driver) |
0.3 KG |
Lighting source |
SMD4014 LED |
Chip QTY |
90pcs |
Power consumption |
18W |
Input voltage (Driver) |
100-240VAC /50-60HZ |
Output voltage (Driver) |
12~14VDC |
Constant current |
830mA |
CCT |
2700K-3300K warm white |
Luminous flux |
1440 lm |
Light Efficacy |
80 lm/w |
Efficiency |
≥85% |
PF |
≥0.90 |
Bean-angle |
120 ° |
Ra |
Ra ≥ 80 |
Fixture Material |
Oxidized Aluminum + Imported PMMA (Acrylic) |

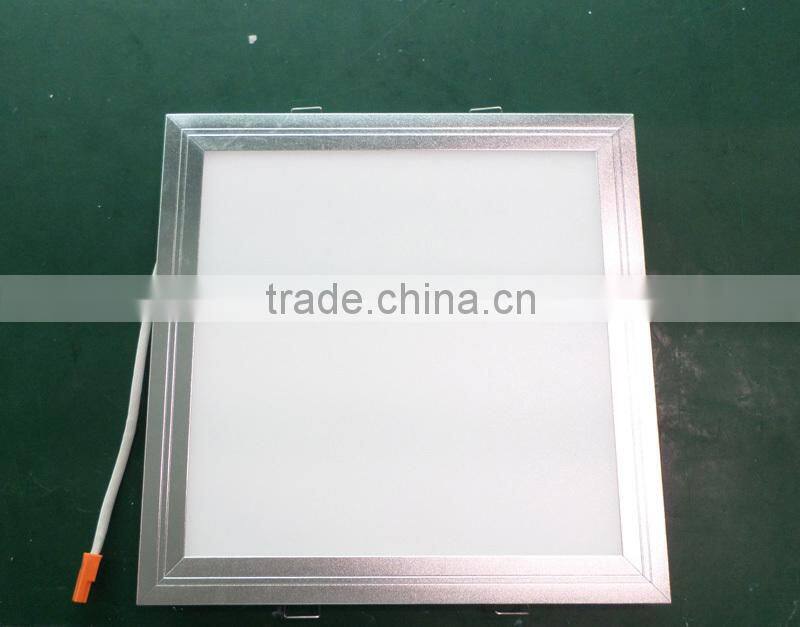

Silver color frame

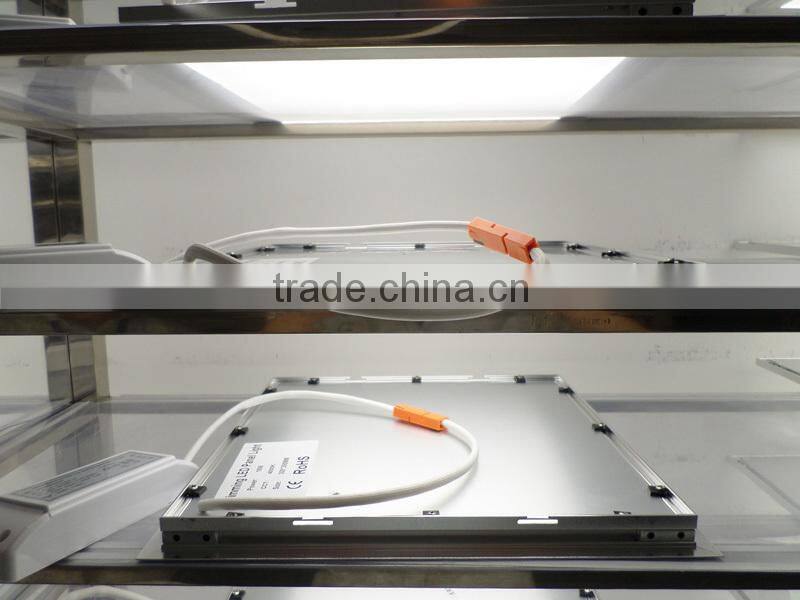

Panels are on aging line to test power supplys:
Neutral packaging:
10PCS/CTN, 13KG/CTN.
Different connector options:
Other Popular Models
Specification
| Model | M22-12A | M33-18A | M63-24A | M66-30A | MC2-36A | MC3-48A | MC3-60A |
| Dimension ( mm) | 200x200 | 300x300 | 600x300 | 600x600 | 1200x200 | 1200x300 | 1200x300 |
| Power consumption | 12w | 18W | 24W | 30W | 36W | 48W | 60W |
| LED QTY | 60 pcs | 90 pcs | 120 pcs | 150 pcs | 180 pcs | 240 pcs | 300 pcs |
| Input voltage (Driver) | 90-265VAC or 100-240VAC /50-60HZ | ||||||
| Output voltage (Driver) | 12~14V DC | 12~14V DC | 24~28V DC | 36~42V DC | 48~56V DC | 60~70V DC | 72~84V DC |
| Constant current | 900mA | 900mA | 900mA | 900mA | 900mA | 900mA | 900mA |
| Efficiency | ≥85% | ||||||
| PF | ≥0.9 | ||||||
| CCT | 3000K, 4000K, 5000K, 6500K | ||||||
| Luminous | 936 lm | 1440 lm | 2112 lm | 2640 lm | 3132 lm | 4320 lm | 5400 lm |
| Luminescence efficiency | 78 lm/w | 80 lm/w | 88 lm/w | 88 lm/w | 87 lm/w | 90 lm/w | 90 lm/w |
| Net Weight (includes driver) | 0.3KG | 0.4KG | 0.9KG | 1.8KG | 3.6KG | 3.6KG | 7.2KG |
Cityghost LED Panel Lights are suitable for both domestic and commercial applications.They are ideal for all types of commercial LED Lighting projects in offices, schools, hotels, hospitals, shopping malls, kitchens and providing a superior light for any environment.
Packing specification:
10 pcs/CTN, 13KG/CTN.
Why Choose CITYGHOST?
Shenzhen Cityghost Lighting Ltd. was founded in 2008. We are dedicated to R&D, manufacturing and promoting LED panels, aiming to offer excellent lighting to all over the world.
4000 square meter scale factory, 150 skilled workers, 5 assembly lines, 1 set of integrated sphere, wave soldering machine, SMT machine, which can support 20,000 pieces LED panels per month.
There are a varity of testing machines in our workshop in order to know the exact information about the
products, so you can definately trust our IES test report.
As a professional LED panel light manufacturer in China, Cityghost has achieved many certificates and honors, for instance, CE , RoHS and patents, which demonstrate our products are of high quality.
CITYGHOST has been to many exhibitions, for example, Canton Fair, Guangya, HK International
Lighting Fair etc. During this time ,our team have shown our team spirit, enthusiasm and
professionism for customers from all over the world.
Q: Why are you choosing Cityghost?
There are four reasons, for confidence guarantee, quality guarantee, patent guarantee and
certifcated guarantee. Cityghost has specialized in led panel light for 5 years, all the products
employ fireproof materials, and pass 850C glowwire flammability test. Technology innovations
and utility patents to avoid patent disputes. TUV and BV certified manufacturer from Shenzhen, China.
Q: What are your available sizes?
We have many sizes such as:
Diameter 134mm,163mm, 180mm, 220mm, 240mm, 300mm;
square 195mm, 295mm, 595mm, 620mm;
Rectangle: 595x295mm, 1195x195mm, 1195x295mm, 1195x595mm;
All the sizes are our standard sizes. And if you needed, we supply customization service to some extent.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel, 4014 for square panel and 5050 for RGB. Different color
termperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.
Q: What is the material of your LGP?
Our LGP is PMMA, and the thickness is 4mm,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm. We use PC diffuser, and the thickness is 1.5mm.
Q: what is your available wattage?
7w, 8w, 9W, 10w, 12W, 15W, 16w, 18W, 24W, 30W, 32w, 36W, 48W, 60W, 72W, 90w.
- Your inquiry related to our products or prices will be replied in 24hrs;
- Well-trained and experienced staffs to answer all your enquires in fluent English;
- OEM&ODM, any your customized lightings we can help you to design and put into production;
- Distributoership are offered for your unique design and some our current models;
- Protection of your sales area, ideas of design and all your private information.
