Specifications
Side Emitting, 13mm thickness;3 years warranty;
6 years experience in led panels
CE&RoHS approved

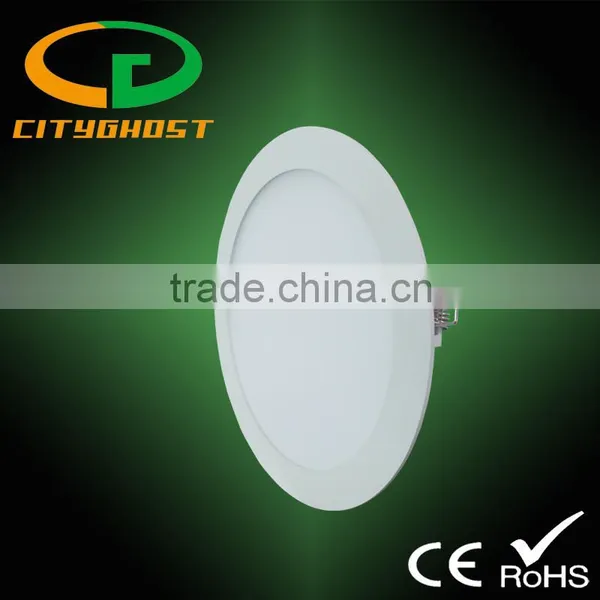

super slim 160mm cut out 12w LED Round Panel Light office with PC fireprof material for innovative lighting

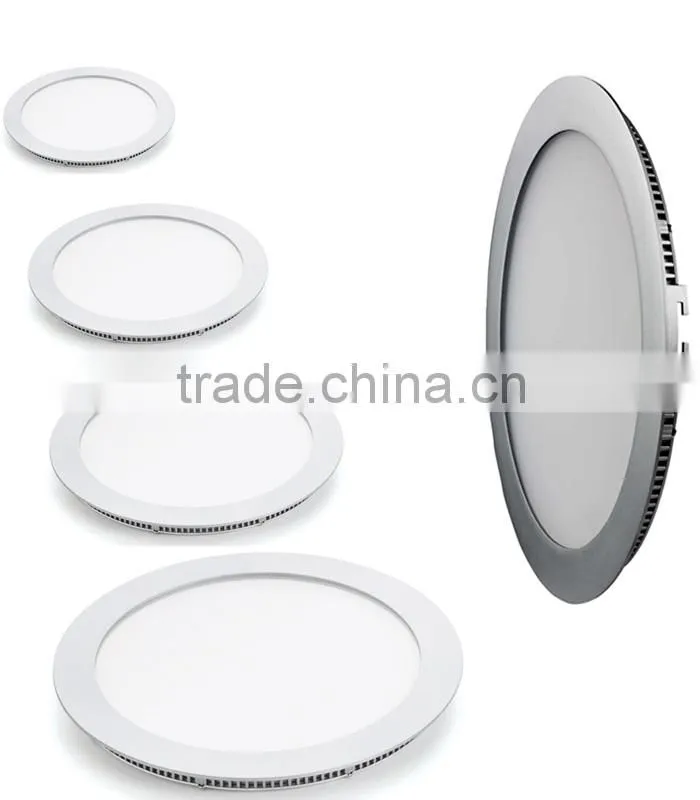

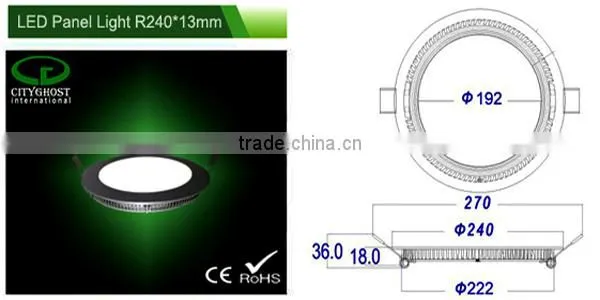

ultra thin 13mm ROUND led panel light product series:
Features
² 13mm Ultra-thin Design
² PB Free
² CE & ROHS Compatible
² LED TYPE:SMD 3014
² CRI:≥80
² Optional CCT:3000K / 4000K / 5000K / 6000K
² Light Angle:120°
² Insulation:CLASSⅡ
² Ingress Protection:IP44
² Working environment:10~80%RH,-20℃~50℃
| What are the specifications of our ROUND led panels? | |
| Model | R13-09A/R16-12A/R18-12A/R22-15A |
| Description | round led panel light |

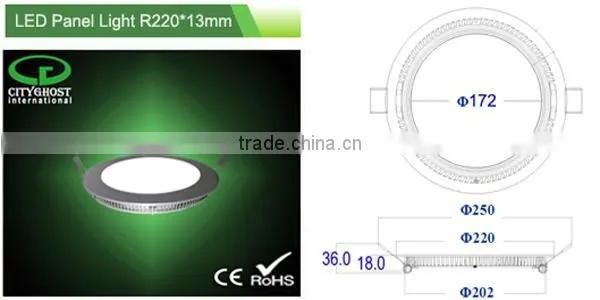

| Dimension | Φ134 Φ 163 Φ 180 Φ 220 Φ 240 Φ 300 |
| Material | aluminum alloy +acrylic+PS/PC |
| Lighting source | 0.2W SMD3014 |
| Colour temperature | 3000K-6000K |
| Luminous efficacy | 59-68Lm/W |
| Luminous flux | 531-1224Lm |
| Beam angle | >110° |
| CRI | RA>80 |
| LED Quantity | 45-90 |
| Wattage | 9-18W |
| Driver brand | CE approved |
| Power efficiency | 90% |
| PF | 0.90 |
| Certificates | CE&RoHS |
| Life span | >50,000h |
| Warranty | 3 years |
| Delivery | Samples: 3 days;Mass:20 days |
| Payment terms | L/C or 30% T/T in advance ect. |
| Price terms | FOB Shenzhen,CIF,EXW ect. |
Model | Watts. | LED | Light Eff | Lumen | Power Supply Info. | |||||
|
| PCS | lm/W | lm | Input | Output | PF | Eff. | ||
R18-12A | 12W | 60 | 70 | 840 | 90-265V | 24-42V | 0.35A | >0.9 | 80% | |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| ||

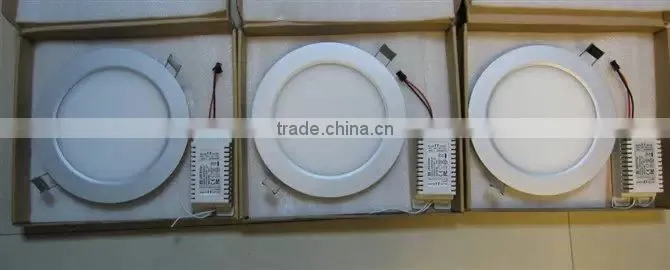

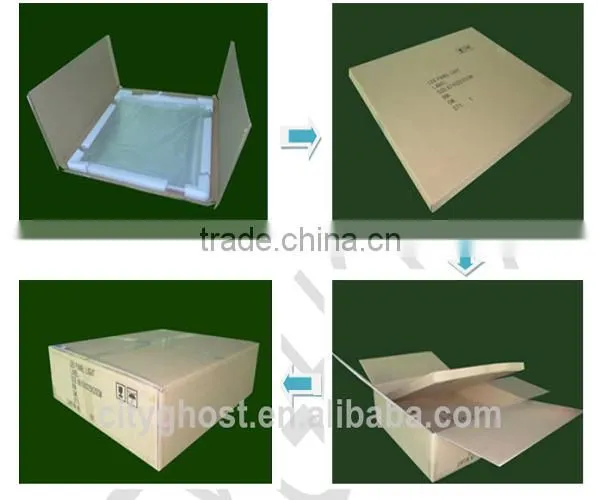

How is Packaging & Shipping?

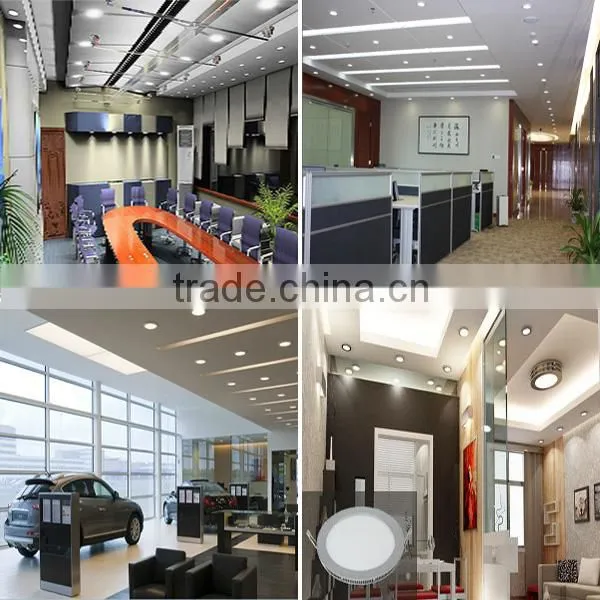

LED panel lights are widely used in many occasions, including shopping mall, subway, office,
living room and so on. LED lighting makes the world greener, brighter and lovelier.

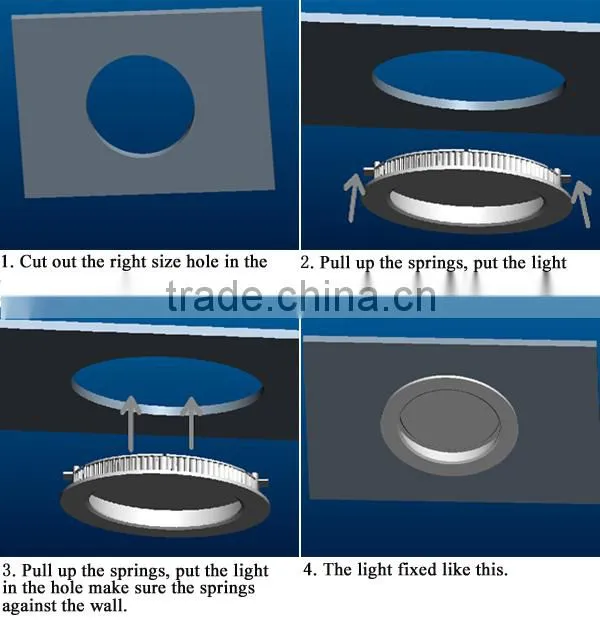

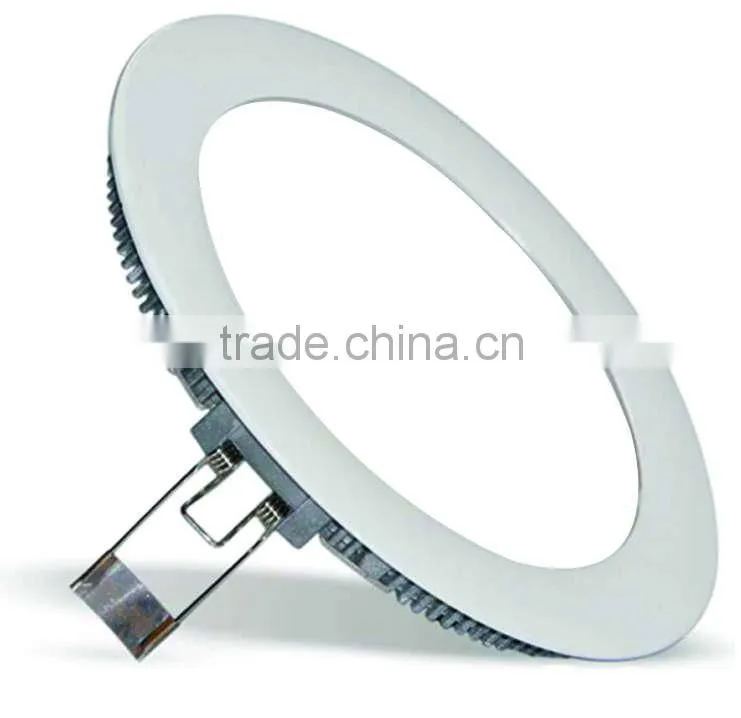

Installation way:recessed with springs attached on the body.
Q:Why are you choosing cityghost?
There are four reasons ,for confidence guarantee ,quality guarantee ,patent guarantee and
certifcated guarantee . Cityghost has specialized in led panel light for 5 years ,all the products
employ fireproof materials ,and pass 850C glowwire flammability test .Technology innovations
and utility patents to avoid patent disputes .TUV and BV certified manufacturer from Shenzhen ,
China.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel,4014 for square panel and 5050 for RGB.Different color
termperature for your option,3000k,40000k,5000k,6000k . The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other
suppliers.
Q: What is the material of your LGP?
Our LGP is PMMA , and the thickness is 4mm ,which are from ChiMei Optoelectronics Corp
or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm.We use PC diffuser , and the thickness
is 1.5mm.

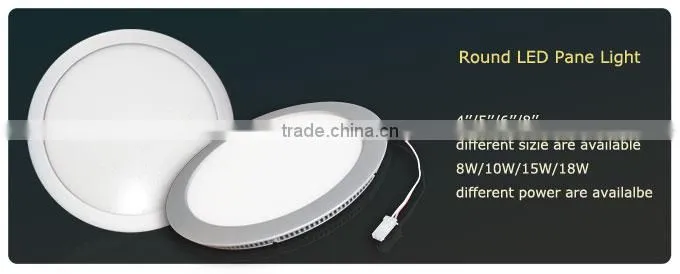

Q: What are your available sizes?
We have many sizes such as
Diameter 134mm,163mm, 180mm,220mm,240mm,300mm;
square 195mm,295mm,595mm,620mm;
Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
All the sizes are our standard sizes.And if you needed , we supply customization service to some
extent.
Q: what is your available wattage?
7w,8w,9W,10w,12W,15W,16w,18W,24W,30W,32w,36W,48W,60W,72W,90w.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote
controller or DMX.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
1.Your inquiry related to our products or prices will be replied in 24hrs;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.OEM&ODM, any your customized lightings we can help you to design and put into production;
4.Distributoership are offered for your unique design and some our current models;
5.Protection of your sales area, ideas of design and all your private information.
Our Team Spirit.
