Specifications
round led panel light1. Ultra thin design: 13mm; light Weight
2. LED SMD3014
3. 3 years warranty
4. CE, RoHS certificates

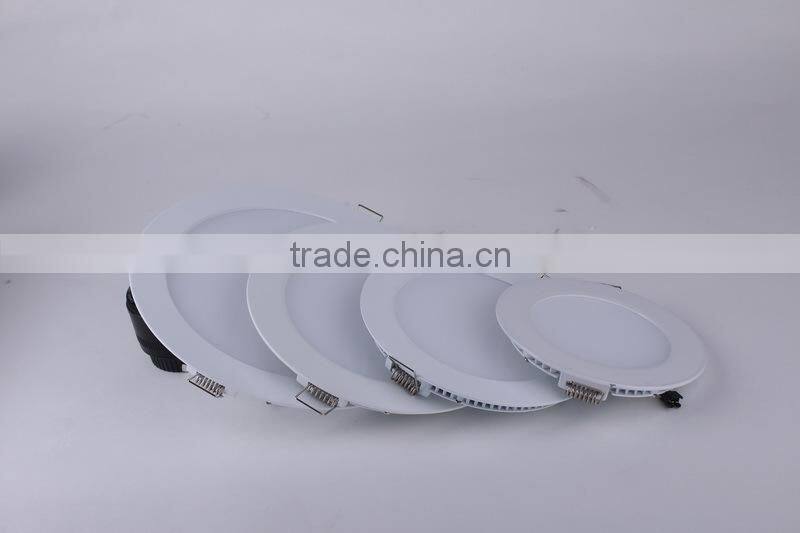

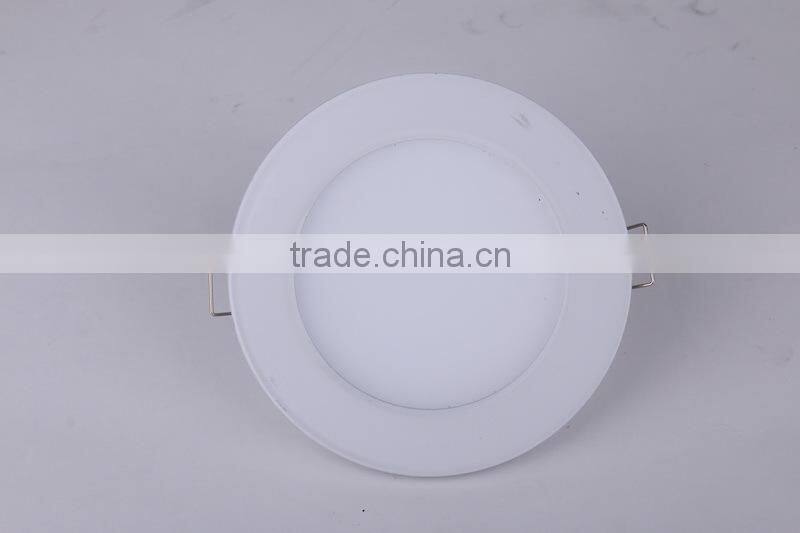

§ dimmable small led down light for commercial lighting
| Specification / Model NO. | R18-12A | R24-15A | R30-18A |
| Lighting source | SMD3014 LED | ||
| Size ( mm) | dia180*H13 | dia240*H13 | dia300*H13 |
| Cut hole (mm) | dia160 | dia220 | dia280 |
| Power consumption | 12W | 15W | 18W |
| LED QTY | 60 pcs | 75 pcs | 90 pcs |
| Input voltage (Driver) | 90-265VAC /50-60HZ | ||
| Output voltage (Driver) | 28-36V DC | 12-20V DC | 15-30V DC |
| Constant current | 300mA | 350mA | 840mA |
| Efficiency | ≥90% | ||
| PF | ≥0.9 | ||
| Color temperature | 3000K, 4000K,5000K,6000K | ||
| Lumen | 900 lm | 1125 lm | 1530 lm |
| Luminescence efficiency | 75 lm/w | 75 lm/w | 85 lm/w |
| Bean-angle | 120 ° | ||
| CRI | Ra ≥ 80 | ||
| Temperature rising | < 20 °C | ||
| Net Weight (includes driver) | 0.4KG | 0.6KG | 1.0KG |
| Protection grade | IP44 | ||
| Insulation class | CLASS II | ||
| Certificate | CE, RoHS | ||
ultra thin 13mm ROUND led panel light product series technical drawing:
Features
² 13mm Ultra-thin Design
² PB Free
² CE & ROHS Compatible
² LED TYPE:SMD 3014
² CRI:≥80
² Optional CCT:3000K / 4000K / 5000K / 6000K
² Light Angle:120°
² Insulation:CLASSⅡ
² Ingress Protection:IP44
² Working environment:10~80%RH,-20℃~50℃

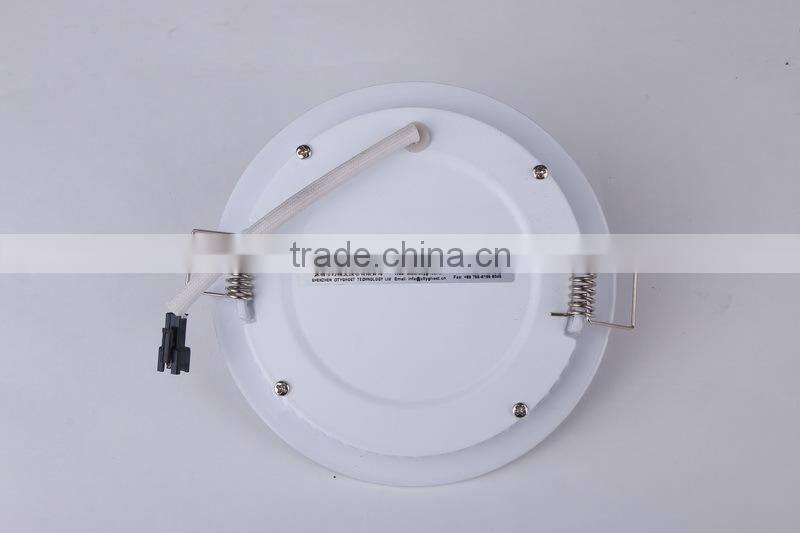

Installation way:recessed with springs attached on the body.
*Dimmer or Remote controller are available.
Package qty': 20 pcs
Inner Carton Size: 25.2x 28.5x 4CM
Inner Carton N.W.: 0.8KG
Master Carton Size: 51.8x 29.5 x 41.5CM
Master Carton G.W.: 17KG
Master Carton N.W.: 11KG
LED panel lights are widely used in many occasions, including shopping mall, subway, office,
living room and so on. LED lighting makes the world greener, brighter and lovelier.
Q: Why are you choosing Cityghost?
There are four reasons, for confidence guarantee, quality guarantee, patent guarantee and
certifcated guarantee. Cityghost has specialized in led panel light for 5 years, all the products
employ fireproof materials, and pass 850C glowwire flammability test. Technology innovations
and utility patents to avoid patent disputes. TUV and BV certified manufacturer from Shenzhen, China.
Q: What are your available sizes?
We have many sizes such as:
Diameter 134mm,163mm, 180mm, 220mm, 240mm, 300mm;
square 195mm, 295mm, 595mm, 620mm;
Rectangle: 595x295mm, 1195x195mm, 1195x295mm, 1195x595mm;
All the sizes are our standard sizes. And if you needed, we supply customization service to some extent.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel, 4014 for square panel and 5050 for RGB. Different color
termperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other suppliers.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote controller or DMX.
Q: What is the material of your LGP?
Our LGP is PMMA, and the thickness is 4mm,which are from ChiMei Optoelectronics Corp or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm. We use PC diffuser, and the thickness is 1.5mm.
Q: what is your available wattage?
7w, 8w, 9W, 10w, 12W, 15W, 16w, 18W, 24W, 30W, 32w, 36W, 48W, 60W, 72W, 90w.
- Your inquiry related to our products or prices will be replied in 24hrs;
- Well-trained and experienced staffs to answer all your enquires in fluent English;
- OEM&ODM, any your customized lightings we can help you to design and put into production;
- Distributoership are offered for your unique design and some our current models;
- Protection of your sales area, ideas of design and all your private information.
