Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > 24W Patented Frameless LED Panel Light 30*30cm

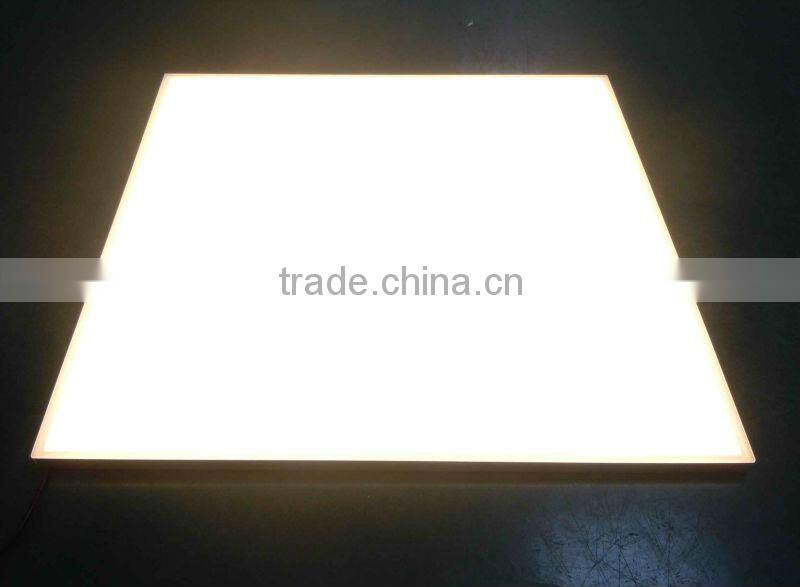

24W Patented Frameless LED Panel Light 30*30cm
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
3014
Warranty(Years):
3
Input Voltage(V):
100-265V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18W Patented Frameless LED Panel Light 30*30cmNegotiableMOQ: 1 Piece -
2x2 or 600x600mm Frameless Led Backlite Light Box for Advertising and Window DisplayUS$ 80 - 90MOQ: 1 Piece
-
2x2 600x600 Frameless LED Panel Light Fixture no FrameUS$ 80 - 90MOQ: 1 Piece
-
48w 60x60cm 2x2ft Frameless Led Backlite Panel Light With ce Rohs ul ApprovedUS$ 70 - 80MOQ: 1 Piece
-
48w 600x600 2x2 Frameless Backlite Led Panel Light With Testing Report AvailableUS$ 70 - 80MOQ: 1 Piece
LED Light Source
3014
Warranty(Years)
3
Input Voltage(V)
100-265V
Lamp Power(W)
24
Lamp Luminous Flux(lm)
1632
Lamp Luminous Efficiency(lm/w)
68
Color Temperature(CCT)
Other, COOL WIHTE, PURE WHITE, WARM WIHTE
Working Temperature(℃)
-40, 50
Working Lifetime(Hour)
50000
Lamp Body Material
PC
IP Rating
IP44
Certification
CCC, CE, EMC, LVD, SAA, UL
Place of Origin
Guangdong, China
Brand Name
Cityghost
Model Number
W33-24A
Specifications
1. 24W Patented Frameless LED Panel Light 30*30cm 2.LED:SMD 3014 3.Three years warranty 4.CE RoHS approved1.24W Patented Frameless LED Panel Light 30*30cm
2.LED:SMD 3014
3.Three years warranty
4.CE RoHS approved
Specifications
Model |
W33-24A |
Description |
Frameless LED Panel Light |
Dimension |
295 x 295 x 20mm |
Lighting source |
SMD3014 LED |
LED QTY |
120pcs |
Power consumption |
24W(includes driver) |
|
Input voltage (Driver) |
100-265VAC /50-60HZ |
Efficiency |
≥85% |
PF |
≥0.90 |
|
Input voltage (Lighting) |
48-56V DC |
Constant current |
830mA |
Operation temperature |
-40~+50°C |
CCT |
3000K,4000K, 5000K,6000K |
| Lighting effecincy | 68Lm/W |
Luminous |
1632lm (±5%) |
Ra |
Ra ≥ 80 |
Bean-angle |
120 ° |
Protection grade |
IP44 |
Temperature rising |
< 20 °C |
Relative humidity |
10%-80%RH |
Net Weight (includes driver) |
3.6KG |
Insulation class |
CLASS II |
Certificate |
CE, RoHS |
