36w ceiling and wall mount led sky panel 600x600
- 20000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card
- MDL Sky LED Panel Light Model: MDL-PL-SKY
- A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
- A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
- MDL Ultra-thin LED Panel Light Model: MDL-PLRB
- Keysight/Agilent T34450A OLED Green
- led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
LED Light Source: | SMD3528 | Warranty(Years): | 3 | Input Voltage(V): | 100-240 |
Lamp Power(W): | 36 | Lamp Luminous Flux(lm): | 2880 | Lamp Luminous Efficiency(lm/w): | 80 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | IP44 | Certification: | BV, CE, EMC, GS, LVD, SAA, UL |
Place of Origin: | Guangdong, China | Brand Name: | Cityghost | Model Number: | W66-36 |
Product Description
Specifications
led sky panel light3 years warranty,6 years experience in led lighting
CE&RoHS approved;patented product
high quality

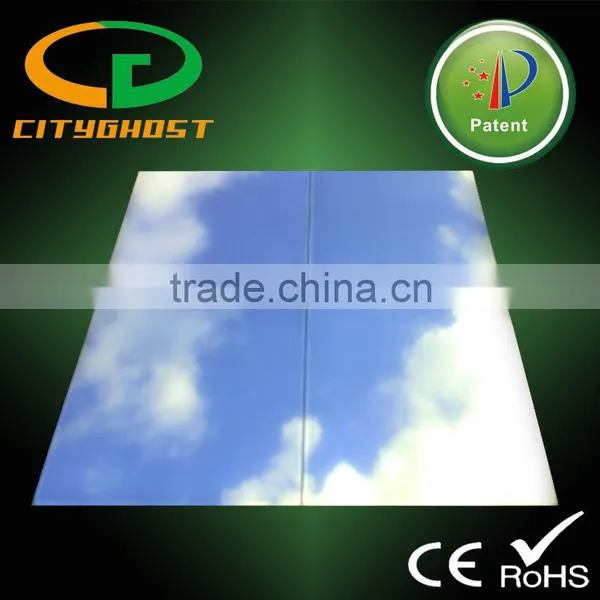

§ 36w ceiling and wall mount led sky panel 600x600
What are the advantages of our Led panel Light?
1.Profession----Specialize in led light panel for 5years;
2.Reliability----Employ fireproof materials, pass 850°c glow wire flammability test;
3.Reputation----TUV&BV certified manufacturer from Shenzhen,China;
4.Certification----CE&RoHS approved and patented led light panel.
What are the features of our Led Panel Light?
1,Material: We adopt Aluminum(Frame & Rear cover), PMMA((LGP), PS/PC(diffuser plate);
Those are the advantages: good heat dissipation, high Luminous uniformity, uniformity/square meter> 90%;
2,LED source: PCB with high quality 0.2W 4014 SMD, high brightness and luminous, good heat dissipation,lifespan > 50000h;
3,Side emitting, with special process,the luminous efficiency is generally 3% higher than similar products in the market, some even reached over 100Lm/W;
4,Ultra-thin: 9mm thickness, weight less than 10kg/square meter,easier for shipping;
5,Different CCT for option: 3000k -6000k;
6,Various installation ways: a, Replace the plaster false ceiling. b, Suspended to the ceiling. c, Mounted to the ceiling or the wall;
7,Beam(light) angle:>110° , CRI: RA>80 , Protection Rate: IP44 , Insulation: Class II. PF>0.9;
8,Power supply(driver), some models with Meanwell or Inventronics driver with UL/CE approved;
9,Certificate: CE&RoHS;
10,3 years warranty: we sell LED panel light for 6 years from 2008, the complaint rate is less than 2%.
Frameless LED panel light HOT-selling technical specifications:
Model | W66-36A |
Description | Fremeless LED panel light |
Dimension | 595 x 595 x 50mm |
Lighting source | 3528 |
LED QTY | 42pcs |
Power consumption | 36W(includes driver) |
Input voltage (Driver) | 100-240VAC /50-60HZ |
Efficiency | ≥85% |
Input voltage (Lighting) | 21-36V DC |
PF | ≥0.90 |
Operation temperature | -40~+50℃ |
CCT | 6000K |
Efficacy | 76Lm/W |
Luminous Flux | 2736lm (±5%) |
CRI | Ra ≥ 80 |
Bean-angle | 120 ° |
Protection grade | IP44 |
Temperature rising | < 20 ℃ |
Relative humidity | 10%-80%RH |
Net Weight (includes driver) | 5.3KG |
Insulation class | CLASS II |
Certificate | CE, CB, GS, RoHS |

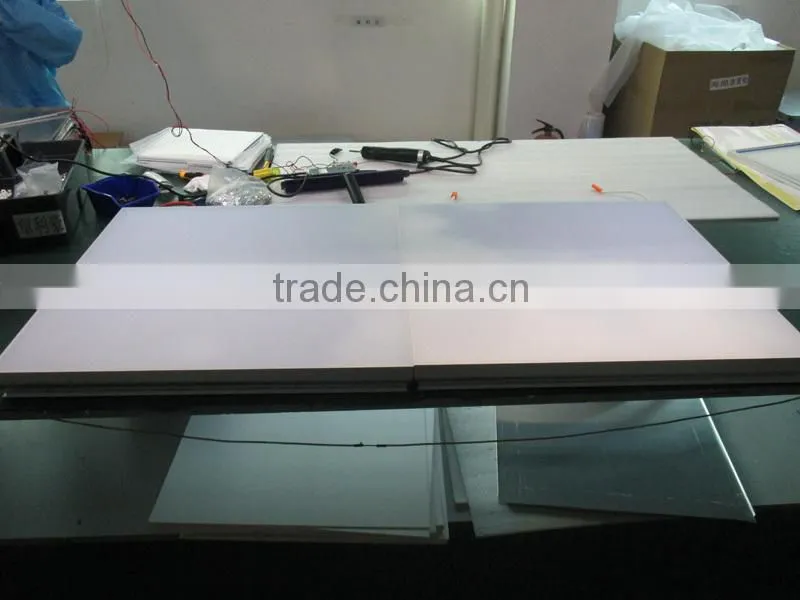

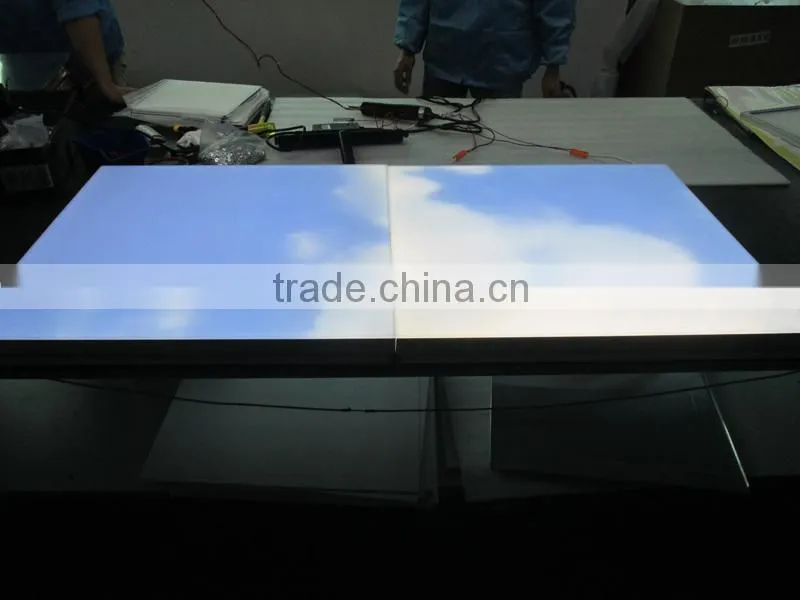

Details of the frameless LED panel light
The Project of our frameless LED panel light
1,the beautiful flowers and the clear sky
2,a project from our client
3,the example of combining on the exihibition
How is Packaging & Shipping?
Packing specification
One panel in an Inner box
Inner Box Size: 68CM X 63CM X 7.4CM
Inner Box G.W.: 10KG
Installation ways:
1,suspended to the ceiling with accesories;
2,combining many panels together to form a lovely scenery in the house.
Q:Why are you choosing cityghost?
There are four reasons ,for confidence guarantee ,quality guarantee ,patent guarantee and
certifcated guarantee . Cityghost has specialized in led panel light for 5 years ,all the products
employ fireproof materials ,and pass 850C glowwire flammability test .Technology innovations
and utility patents to avoid patent disputes .TUV and BV certified manufacturer from Shenzhen ,
China.
Q: What is the type of your LED resources?
Our LED is 3014 for round panel,4014 for square panel and 5050 for RGB.Different color
termperature for your option,3000k,40000k,5000k,6000k . The CRI is more than 80, and beam
angle is biger than 110°.The lighting efficiency of our panel light average 3% more than other
suppliers.
Q: What is the material of your LGP?
Our LGP is PMMA , and the thickness is 4mm ,which are from ChiMei Optoelectronics Corp
or Mitsubi shi Corporation.
Q: What is the material of your Aluminum back and diffuser plate?
Our Aluminum back is 6063, and the thickness is 0.6mm.We use PC diffuser , and the thickness
is 1.5mm.
Q: What are your available sizes?
We have many sizes such as
Diameter 134mm,163mm, 180mm,220mm,240mm,300mm;
square 195mm,295mm,595mm,620mm;
Rectangle: 595x295mm,1195x195mm,1195x295mm,1195x595mm;
All the sizes are our standard sizes.And if you needed , we supply customization service to some
extent.
Q: what is your available wattage?
7w,8w,9W,10w,12W,15W,16w,18W,24W,30W,32w,36W,48W,60W,72W,90w.
Q: Do you have dimmable panel lights?
Yes, we have several types of dimmable LED panel lights, triac dimmable LED panel light,
0-10v dimmable LED panel light, 24VDC & CCT & RGB dimmable LED panel light with remote
controller or DMX.
Q: Does it easy to install and use?
Yes, it is very easy to use actually. You can install it by yourself in accordance with the manual.
There will be a manual in each led panel light box when you buy it. Look it carefully and install it
step by step according to the instructions.
Q: How is your warranty and how to apply?
We offer 3 years warranty for all the products. When light or driver meets problems, we request
our customer to send us pictures or videos for our analysis, and we send the customer a new
product, with this we all save time and money in freight to send back the goods.
1.Your inquiry related to our products or prices will be replied in 24hrs;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.OEM&ODM, any your customized lightings we can help you to design and put into production;
4.Distributoership are offered for your unique design and some our current models;
5.Protection of your sales area, ideas of design and all your private information.
