Help Center2015 New Design Framless 48w 600x600mm Led Flat Panel Lighting for Airport or Others You Want
Related Products
-
Hot New Product for 2015 Framless 36w 600x600mm Led Lighting PanelsUS$ 70 - 72MOQ: 1 Piece -
Dimmable Cool White 36W 595x595mm Frameless LED Panel Light by CityghostUS$ 70 - 80MOQ: 1 Piece
-
36W 595x595mm Dimmable Cool White Frameless Panel LightUS$ 70 - 80MOQ: 1 Piece
-
36W 595x595mm 0-10V Dimmable Warm White Frameless Light PanelUS$ 70 - 80MOQ: 1 Piece
-
48w 595x595 Led Sky Panel 600x600 for RelaxingUS$ 80 - 88MOQ: 1 Piece
1.Pictures of Cityghost Back Lit 36w 600x600mm led flat panel lighting
a. Edgelit led panels for sale 0.2W SMD 3528 LED, Samsung or Epistar chip
b. High Luminous,using T6063 Aluminium releasing 98% heating of lighting
Blue Sky with Printed Picture Inside
Several Pieces combine together
2. Specification of Good Geat Release led flat panel lighting
| Model | W66-48A |
| lighting source | SMD3528 |
| Material |
Optical PMMA +Aluminum Alloy |
| Input voltage | 100-240VAC |
| PF | 0.90 |
| LED Lifespan | 50,000Hrs |
| CCT | 3000K,4000K,5000K,6000K for your option |
| Luminescence efficiency | 85lm/w |
| Bean-angle | 120° |
| Ra | 80 |
| Operation temperature | -40~+50℃ |
| Relative humidity | 10%-80%RH |
| Net Weight(includes driver) | 3.6KG |
| Insulation classs | CLASS Ⅱ |
| Protection grade | IP44 |
| Environmental | All materials meet with RoHS compliance |
| Certificate | CE RoHS CB GS SAA |
3. Customized Color temperature 3000K-6000K for your option
| Size | Power | LED Quantity | Input | Lighting efficiency (lm/w) |
| 200x200mm | 12W | 60 | AC100-240V | 85 |
| 300x300mm | 24W | 120 | AC100-240V | 85 |
| 600x600mm | 36w | 180 | AC100-240V | 90 |
| 600x300mm | 30W | 150 | AC100-240V | 90 |
| 1200x200mm | 36W | 180 | AC100-240V | 95 |
| 1200x300mm | 30W | 150 | AC100-240V | 90 |
| 1200x600mm | 48W | 240 | AC100-240V | 95 |
| 620x620mm | 36W | 180 | AC100-240V | 95 |
| 603x603mm | 48W | 240 | AC100-240V | 95 |
a. Confference / meeting room
b. Hospitals
c. Factory / company
d. Schools
e. Any indoor places where need to save energy and long lifespan
8. Factory Introduction of No Flicker led flat panel lighting
Welcome to Shenzhen Cityghost Technology limited. Cityghost have been led flat panel lighting
for businesses and home users for over 5 years . all models are innovative, cost effective
and with outstanding engineers team, advanced testing equipments, sufficient designing ,
Cityghost will provides you with excellent prices and choices and backed up with the best customer service.
Contact us today to discuss how Cityghost can help you !
CITYGHOST IS A MANUFACTURER:
*With strong technical strength and strict quality control system.
*Can provide OEM,ODM service and LED lighting solution.
*All our lights have TUV ,GS,CB, SAA certification.
WHAT CITYGHOST HAS:
* Ability to meet your technical requirements.
* Attitude to provide good quality.
* Solution to satisfy large order.

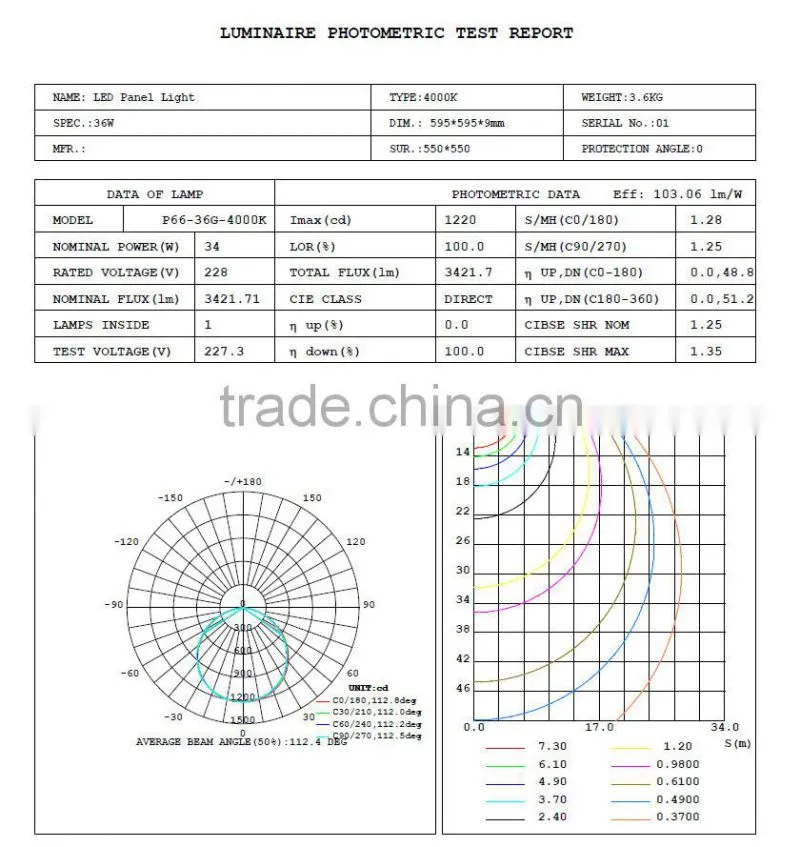

Distribution Photometer for IES Test ( Lumin , Wattage, etc.)
| Payment Terms | L/C, T/T, Others |
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 3 days |
| Sample Available | YES |
| Delivery Details | 3~5days for sample , 7~10days for mass production |
| FOB Port | Shenzhen |
| Loading Info | EXW in Shenzhen |

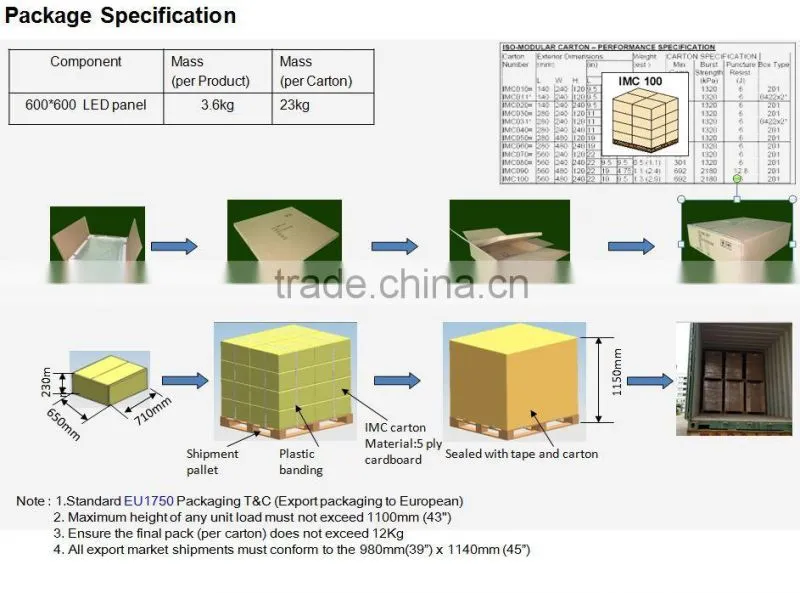

12. Shipping for you !
Any product interests you, pls feel free to contact us, we are ready to serve you all the time!
After testing our high quality led panels, you will feel very good to enjoy a long cooperation with us, we do believe !
contact me freely,Skype: joanna.joanna.760, What's app:+8613726036760
