Wet Alarm Valve;with ISO, CCC Certificates

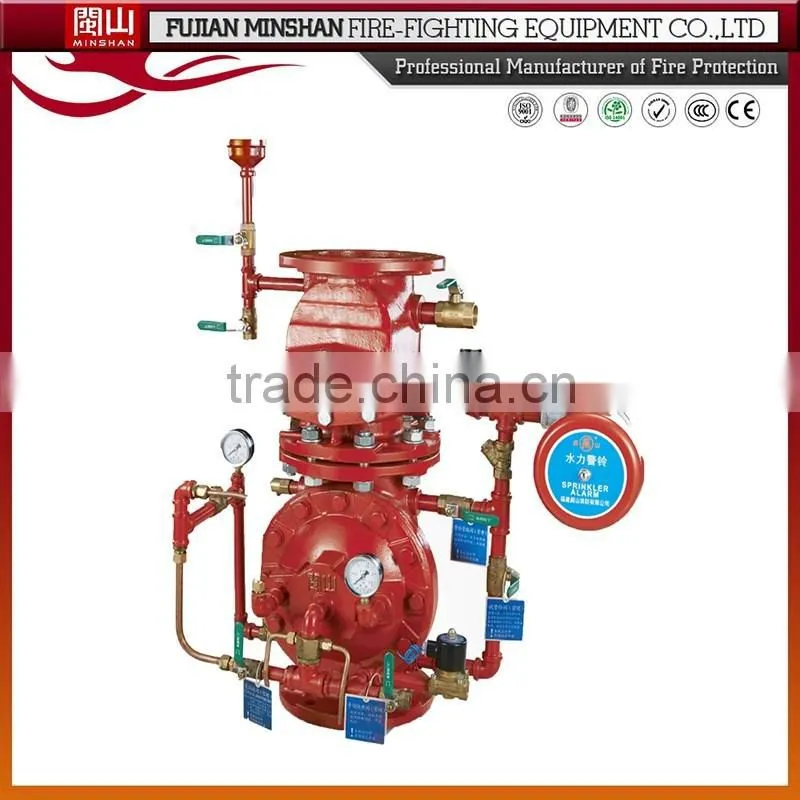

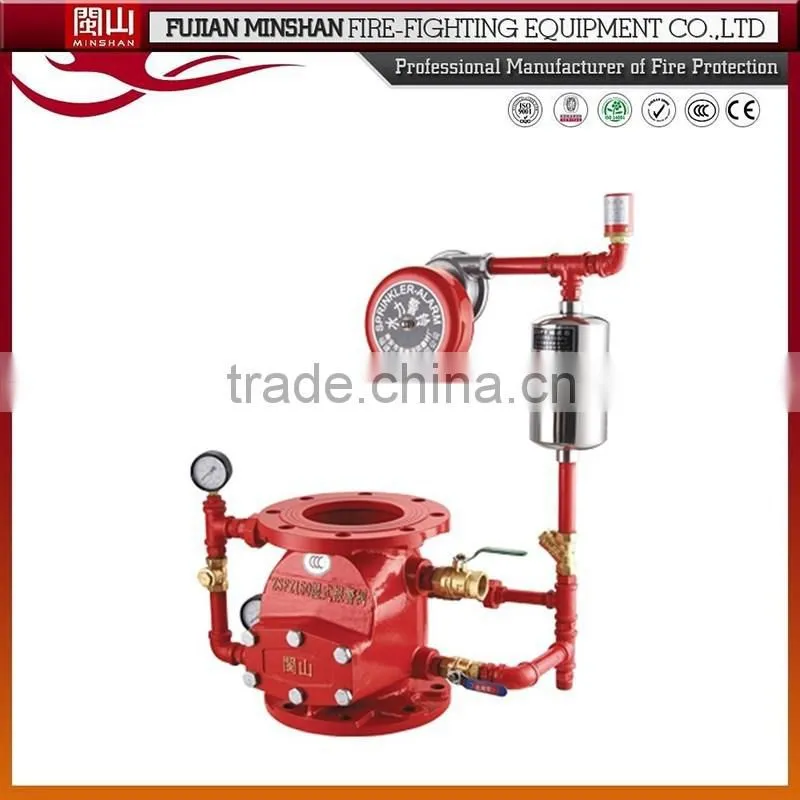

Fire Fighting Wet Alarm Check Valve
| SIZE | DN100 | DN150 | DN200 | DN250 |
| HEIGHT mm | 350 | 410 | 550 | 620 |
| Working Pressure | 1.2Mpa | 1.2Mpa | 1.2Mpa | 1.2Mpa |
| Seal Test | 2.4Mpa | 2.4Mpa | 2.4Mpa | 2.4Mpa |
| Strength Test | 4.8Mpa | 4.8Mpa | 4.8Mpa | 4.8Mpa |
| Control way | Manual Type/ Electric Type/Guiding tube control | |||
Alarm Check Valves are used in wet pipe fire sprinkler systems. They primarilyserve a dual purpose in that they prevent a reverse flow of water through their bodies (non-return) and also provide for the use of a hydraulic fire alarm which is not dependent upon an electrical power supply for its operation.
Through the use of a hydraulic retard chamber a time delay is provided to eliminate potential false alarms caused;by fluctuating water supply pressures. Where constant pressure water supplies are used the retard chamber;(time delay) is not necessary. By incorporating the use of electrical pressure switches, other supplemental;alarms, annunciators, etc. may also be used.
;
| 1 | Valve Body |
| 2 | control line strainer |
| 3 | Inlet Gage |
| 4 | One-way valve |
| 5 | reset ball valve(NC) |
| 6 | Solenoid Valve(NC) |
| 7 | control chamber pressure;gage |
| 8 | Automatic drain valve |
| 9 | Emergency manual ball valve(NC) |
| 10 | testing alarm bell ball valve(NC) |
| 11 | Alarm isolation valve ball valve (NO) |
| 12 | alarm pipeline strainer |
| 13 | Water motor alarm |
| 14 | pressure switch |
| 15 | drain valve(automatic drain) |
| 16 | Drain valves(NC) |
|
|
|
|
; |
;
