Wet Alarm Valve
ZSFZ system is a kind of universal automatic fire extinguish system. It is mainly composed of wet alarm valve, delayer, the alarm of water conservancy and other components (water pressure switch, water indicator, nozzle). The system is always ready for work ,and the pipe network is filled of pressure water ,when somewhere fire in the protection area, the environment temperature raise and trigger the heat sensitive components on the nozzle, sealing components fall of ,system will start automatically spray water directly to the fire area, and send alarm signal to police.
Description:
1. Stable work performance
2. High efficiency on fire extinguishing
3. Easy install and use
4. Widely use in office, school, kitchen and warehouse
Technical Date
| Model | Norminal Diameter (mm) | Norminal Working Pressure (Mpa) | Body Height (mm) | Flanged Outer Diameter (mm) | Flange Inside Diameter (mm) | Screw and Screw Diameter (mm) |
| ZSFZ100 | 100 | 1.2~1.6 | 250 | 220 | 180 | 8×Φ18 |
| ZSFZ150 | 150 | 1.2~1.6 | 270 | 285 | 240 | 8×Φ22 |
| ZSFZ200 | 200 | 1.2~1.6 | 370 | 340 | 295 | 12×Φ22 |

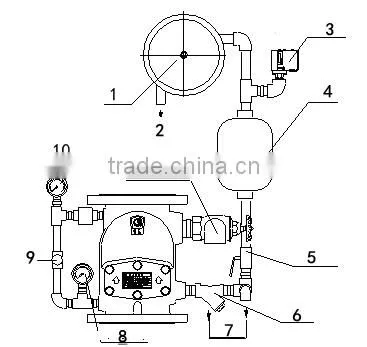

Product Structure
| 1 | Alarm Bell | |
| 2 | Floor Drain | |
| 3 | Pressure Switch | |
| 4 | Retarder | |
| 5 | Alarm Valve(Normally open) | |
| 6 | Strainer | |
| 7 | Floor Drain | |
| 8 | Water Pressure Gauge | |
| 9 | Retaining Valve | |
| 10 | Upper Pressure Gauge | |
| 11 | Water Valve(Put remaining water nomally close) | |
|
|
|
|
|
